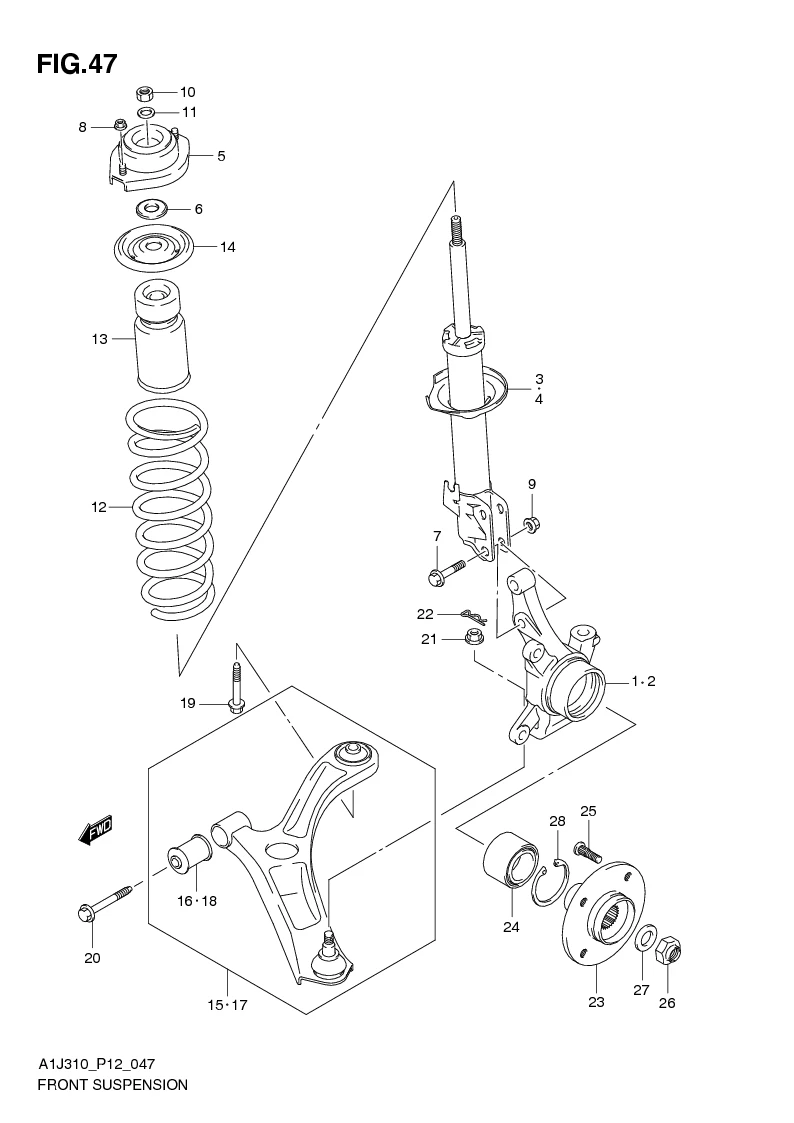

FIG. 47 FRONT SUSPENSION

No	No. Part	Description	Qty	Price Per Pcs
1	45111-67L80-000 SUB: 45111B67L80N000	KNUCKLE, STEERING RH	1	Rp411.500
2	45151-67L80-000 SUB: 45151B67L80N000	KNUCKLE, STEERING LH	1	Rp411.500
3	41601-67L80-000 SUB: 41601B67L80N000	STRUT ASSY, FR SUSPENSION RH	1	Rp737.500
4	41602-67L80-000 SUB: 41602B67L80N000	STRUT ASSY, FR SUSPENSION LH	1	Rp737.500
5	41710-67L80-000 SUB: 41710B67L80N000	SUPPORT, FRONT STRUT	2	Rp96.500
6	41741-82K00-000 SUB: 41741B82K00N000	BEARING, FRONT STRUT	2	Rp58.500
7	09103-12051-000	BOLT (12X50)	4	Rp27.500
8	09159-08123-000	NUT	4	Rp20.500
9	09159-12068-000	NUT	4	Rp21.000
10	08310-0012A-000	NUT	2	Rp17.500
11	DISCONTINUE SUB: 08321-0112A-000	LOCK WASHER	2	-
12	41111-67L90-000 SUB: 41111B67L90N000	SPRING, FRONT COIL	2	Rp227.000
13	42110M67L00-000 SUB: 42110B67L00N000	STOPPER ASSY, FRONT BUMP	2	Rp175.000
14	41231-67L80-000 SUB: 41231B67L80N000	SEAT, COIL SPRING UPPER	2	Rp81.500
15	45201-67L81-000 SUB: 45201B67L80N000	ARM ASSY, FRONT SUSPENSION RH	1	Rp381.000
16	45530-67L80-000 SUB: 45530B67L80N000	•BUSHING, SUSPENSION ARM FRONT	1	Rp29.000
17	45202-67L81-000 SUB: 45202B67L80N000	ARM ASSY, FRONT SUSPENSION LH	1	Rp381.000
18	45530-67L80-000 SUB: 45530B67L80N000	•BUSHING, SUSPENSION ARM FRONT	1	Rp29.000
19	09135-12017-000	BOLT (12X65)	2	Rp33.000
20	09135-12018-000	BOLT (12X77)	2	Rp51.500
21	09159-12069-000	NUT	2	Rp23.000
22	09385-12002-000 SUB: 09385B12002N000	CLIP	2	Rp4.500
23	43421-68K80-000 SUB: 43421B68K80N000	HUB, FRONT WHEEL	2	Rp408.500
24	43440-68K10-000 SUB: 43440B68K10N000	BEARING, FRONT WHEEL	2	Rp211.000
25	09119-12012-000	BOLT (12X38)	8	Rp14.500
26	09159-18008-000	NUT	2	Rp52.500
27	09160-18017-000 SUB: 09160M18017-000	WASHER (18X35X4)	2	Rp13.000
28	08331-41629-000 SUB: 08331-4162A-000	CIRCLIP	2	Rp27.000
