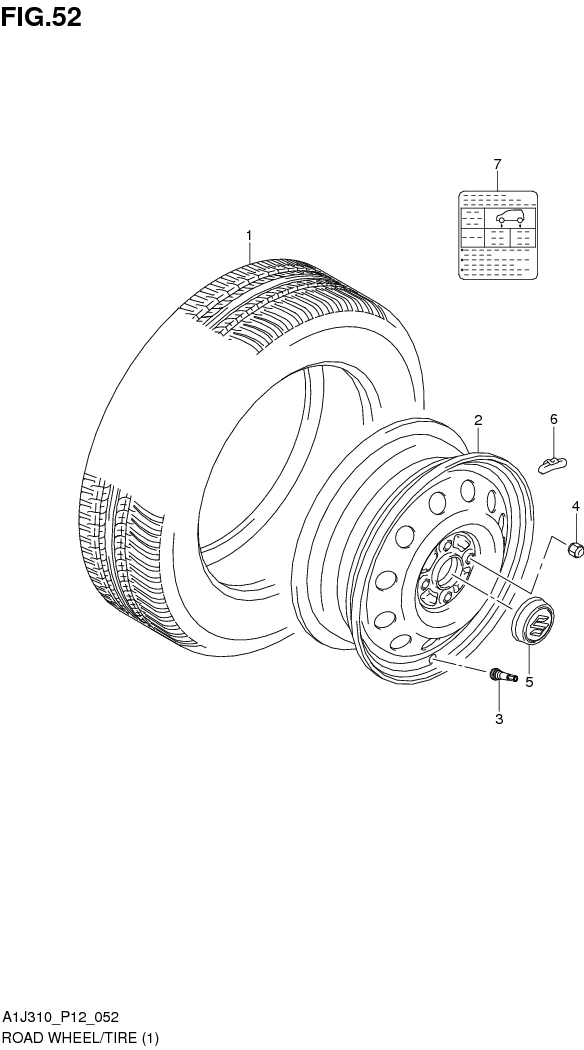

FIG. 52 ROAD WHEEL/TIRE (GA)

FIG. 52 ROAD WHEEL/TIRE (GA)

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	43110-67L80-000 SUB: 43110B67L80N000	TIRE (145/80R13 75T)	5	Rp936.000
2	43210-67L80-39M SUB: 43210B67L80N39M	WHEEL (13X4.00B) (SILVER)	5	Rp522.500
3	43130-78030-000	VALVE (TR413) (BS)	5	Rp62.000
4	09159-12079-000 SUB: 09159B12050N000	NUT	16	Rp23.500
5	43252-58J00-000 SUB: 43252B58J00N000	CAP, WHEEL CENTER	4	Rp11.500
6-1	DISCONTINUE SUB: 43221-73H00-000	WEIGHT, WHEEL BALANCE (5GRAM)	0	-
6-2	DISCONTINUE SUB: 43222-73H00-000	WEIGHT, WHEEL BALANCE (10GRAM)	0	-
6-3	DISCONTINUE SUB: 43223-73H00-000	WEIGHT, WHEEL BALANCE (15GRAM)	0	-
6-4	DISCONTINUE SUB: 43224-73H00-000	WEIGHT, WHEEL BALANCE (20GRAM)	0	-
6-5	DISCONTINUE SUB: 43225-73H00-000	WEIGHT, WHEEL BALANCE (25GRAM)	0	-
6-6	DISCONTINUE SUB: 43226-73H00-000	WEIGHT, WHEEL BALANCE (30GRAM)	0	-
6-7	DISCONTINUE SUB: 43227-73H00-000	WEIGHT, WHEEL BALANCE (35GRAM)	0	-
6-8	DISCONTINUE SUB: 43228-73H00-000	WEIGHT, WHEEL BALANCE (40GRAM)	0	-
6-9	DISCONTINUE SUB: 43231-73H00-000	WEIGHT, WHEEL BALANCE (45GRAM)	0	-
7	79161-67L80-000 SUB: 79161B67L80N000	PLACARD, TIRE INFORMATION	1	Rp16.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
