KARIMUN WAGON R

Preview Engine Transmission Electrical Suspension Body

< KEMBALI KE THUMBNAIL FIG. 47 FRONT SUSPENSION FIG. 48 FRONT DRIVE SHAFT FIG. 49 FRONT SUSPENSION FRAME FIG. 50 REAR SUSPENSION FIG. 51 REAR AXLE FIG. 52 ROAD WHEEL/TIRE (GA)FIG. 53 ROAD WHEEL/TIRE (GL,GX)FIG. 54 STEERING WHEEL FIG. 55 STEERING COLUMN (GA)FIG. 56 STEERING COLUMN (GL,GX)FIG. 57 STEERING UNIT FIG. 58 PEDAL/PEDAL BRACKET FIG. 59 BRAKE MASTER CYLINDER FIG. 60 BRAKE PIPING FIG. 61 FRONT WHEEL BRAKE FIG. 62 REAR WHEEL BRAKE FIG. 63 PARKING BRAKE

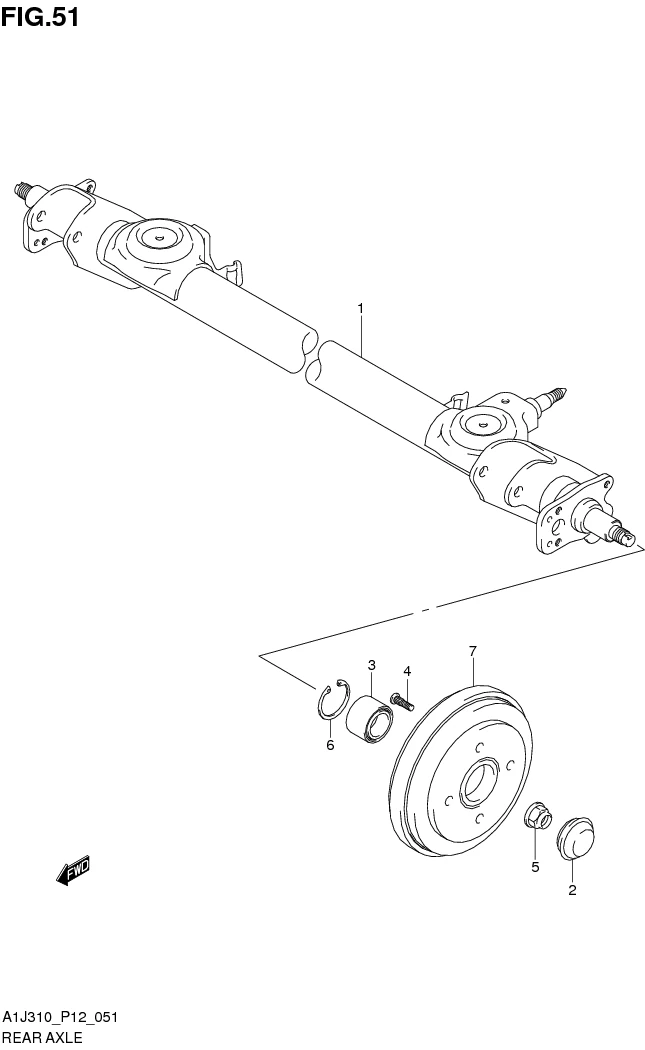

FIG. 51 REAR AXLE

FIG. 51 REAR AXLE

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	46510-67L80-000 SUB: 46510B67L80N000	AXLE, REAR	1	Rp5.746.000
2	43241M68K00-000 SUB: 43241M79002-000	CAP, SPINDLE	2	Rp14.500
3	46860M68K01-000 SUB: 46860B68K10N000	BEARING, REAR WHEEL	2	Rp443.500
4	09119-12016-000	BOLT (12X33)	8	Rp27.000
5	09159-18026-000 SUB: 09159-18017-000	NUT	2	Rp54.000
6	08331M41529-000	CIRCLIP	2	Rp12.500
7	43511-67L20-000 SUB: 43511B67L20N000	DRUM, BRAKE REAR	2	Rp470.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
