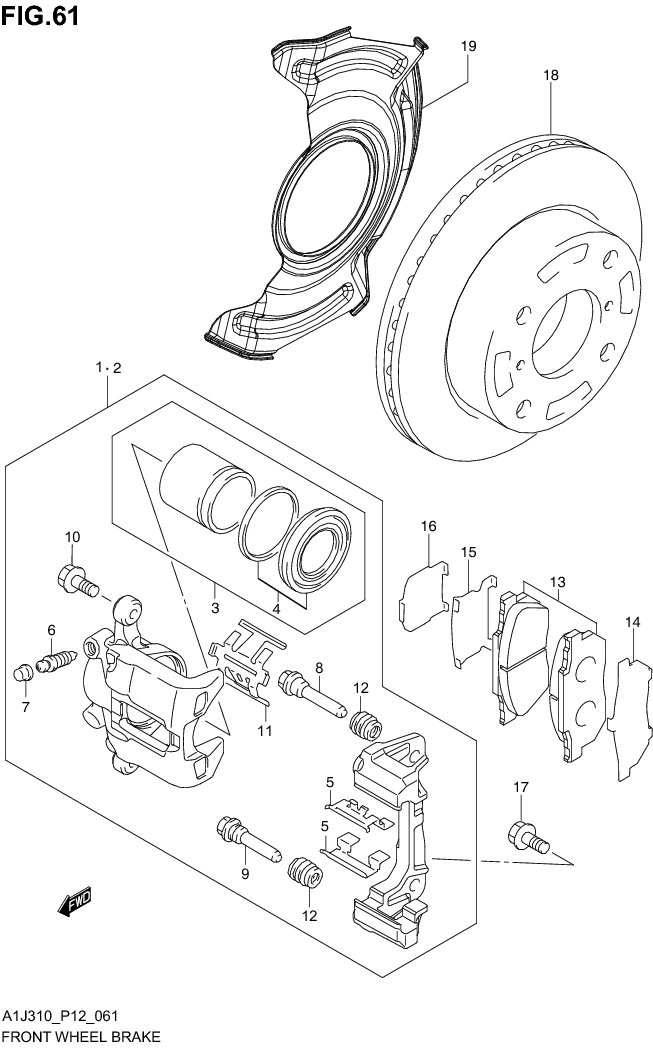

FIG. 61 FRONT WHEEL BRAKE

FIG. 61 FRONT WHEEL BRAKE
No No. Part Description Qty Price Per Pcs Remarks
1 55101-67L20-999
SUB: 55101B67L20N999		 CALIPER ASSY, FR BRAKE RH 1 Rp821.000 RH
2 55102-67L20-999
SUB: 55102B67L20N999		 CALIPER ASSY, FR BRAKE LH 1 Rp821.000 LH
3 55100-77810-000
SUB: 55100-77810L000		 •PISTON/CUP SET 1 Rp247.000
4 55830-77300-000
SUB: 55830B77300N000		 ••SEAL SET,PISTON 1 Rp29.500
5 55135-77500-000
SUB: 55135-77500L000		 •PLATE, PAD SUPPORT 2 Rp21.500
6 55173-77300-000
SUB: 55173-77300L000		 •PLUG, BLEEDER 1 Rp32.500
7 DISCONTINUE
SUB: 55174-77300L000		 •CAP, BLEEDER 1 -
8 55191-67L20-000
SUB: 55191B67L20N000		 •PIN, A 1 Rp24.500
9 55192-67L20-000
SUB: 55192B67L20N000		 •PIN, B 1 Rp24.500
10 55206-77300-000
SUB: 55206-77300L000		 •BOLT, PIN 2 Rp8.500
11 55234-77500-000
SUB: 55234-77500L000		 •SPRING, PAD 1 Rp34.000
12 55555-78G00-000
SUB: 55555B78G00N000		 •COVER, DUST 2 Rp16.000
13 55200-77502-000
SUB: 55200B77502N000		 PAD SET, DISC BRAKE 1 Rp158.000
14 55115-77500L000 SHIM, BRAKE PAD OUTER 1 Rp37.000
15 55116-77500L000 SHIM, BRAKE PAD INNER, A 1 Rp26.500
16 55117-77500L000 SHIM, BRAKE PAD INNER, B 1 Rp31.500
17 09117-12006-000 BOLT (12X27) 4 Rp31.500
18 55311-67L20-000
SUB: 55311B67L20N000		 DISC, FRONT BRAKE 2 Rp362.500
19 55321-67L20-000
SUB: 55321B67L20N000		 COVER, FR BRAKE DISC DUST 2 Rp40.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
