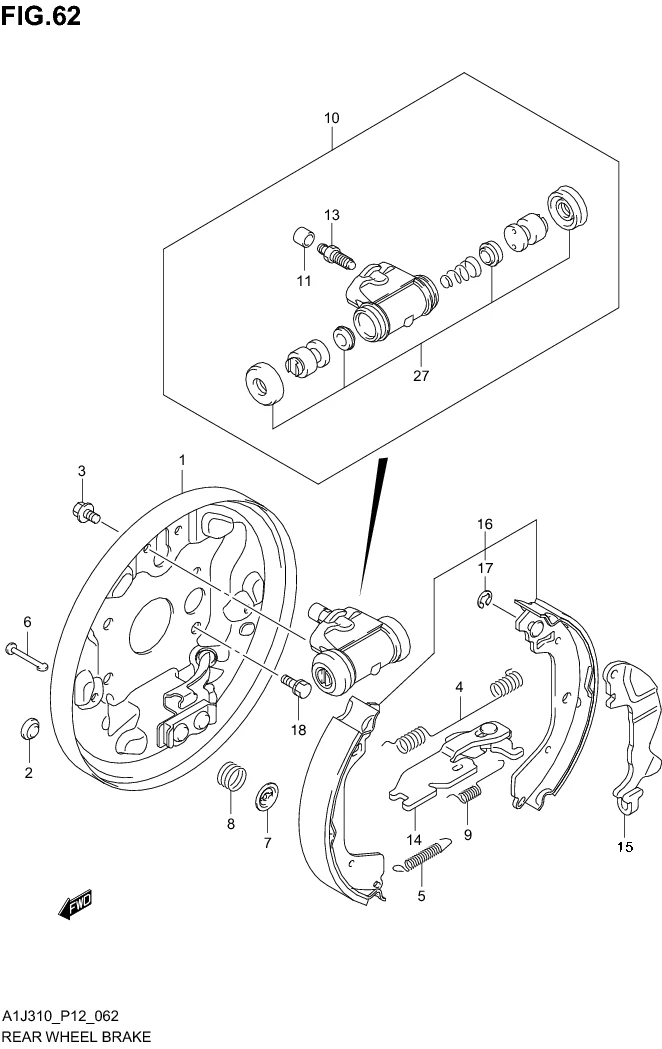

FIG. 62 REAR WHEEL BRAKE

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1-2	53102-67L20-000 SUB: 53102B67L20N000	PLATE ASSY, RR BRAKE LH	1	Rp210.000	LH
1-1	53101-67L20-000 SUB: 53101B67L20N000	PLATE ASSY, RR BRAKE RH	1	Rp210.000	RH
2	53141-67L20-000 SUB: 53141B67L20N000	PLUG, BACKING PLATE	1	Rp11.000	RH,LH
3	53151-67L20-000 SUB: 53151B67L20N000	BOLT, WHEEL CYLINDER	2	Rp10.500	RH,LH
4	53231-67L20-000 SUB: 53231B67L20N000	SPRING, SHOE RETURN	1	Rp9.000	RH,LH
5	53232-67L20-000 SUB: 53232B67L20N000	SPRING, SHOE RETURN LWR	1	Rp10.500	RH,LH
6	53241-67L20-000 SUB: 53241B67L20N000	PIN, SHOE HOLD DOWN	2	Rp13.000	RH,LH
7	53242-67L20-000 SUB: 53242B67L20N000	CUP, SHOE HOLD DOWN	2	Rp9.000	RH,LH
8	53243-67L20-000 SUB: 53243B67L20N000	SPRING, SHOE HOLD DOWN	2	Rp11.000	RH,LH
9-1	53251-67L20-000 SUB: 53251B67L20N000	SPRING, STRUT RETAINING RH	1	Rp7.000	RH
9-2	53261-67L20-000 SUB: 53261B67L20N000	SPRING, STRUT RETAINING LH	1	Rp7.000	LH
10	53401-67L20-000 SUB: 53401B67L20N000	CYLINDER ASSY, WHEEL	1	Rp224.000	RH,LH
11	52474-67L20-000 SUB: 52474B67L20N000	•CAP, BLEEDER PLUG	1	Rp9.500	RH,LH
12	53810-67L20-000 SUB: 53810B67L20N000	•CUP SET, RR WHEEL CYLINDER	1	Rp97.500	RH,LH
13	55151-67L20-000 SUB: 55151B67L20N000	•PLUG, BLEEDER	1	Rp23.000	RH,LH
14-1	53701-67L20-000 SUB: 53701B67L20N000	STRUT ASSY RH	1	Rp60.000	RH
14-2	53702-67L20-000 SUB: 53702B67L20N000	STRUT ASSY LH	1	Rp60.000	LH
15-1	53751-67L20-000 SUB: 53751B67L20N000	LEVER, PARKING RH	1	Rp49.500	RH
15-2	53761-67L20-000 SUB: 53761B67L20N000	LEVER, PARKING LH	1	Rp50.500	LH
16	53200-67L20-000 SUB: 53200B67L20N000	BRAKE SHOE SET	1	Rp256.500
17	53753-67L20-000 SUB: 53753B67L20N000	•E RING	2	Rp7.500
18	53118-82J00-000	BOLT,REAR BRAKE	8	Rp25.500
