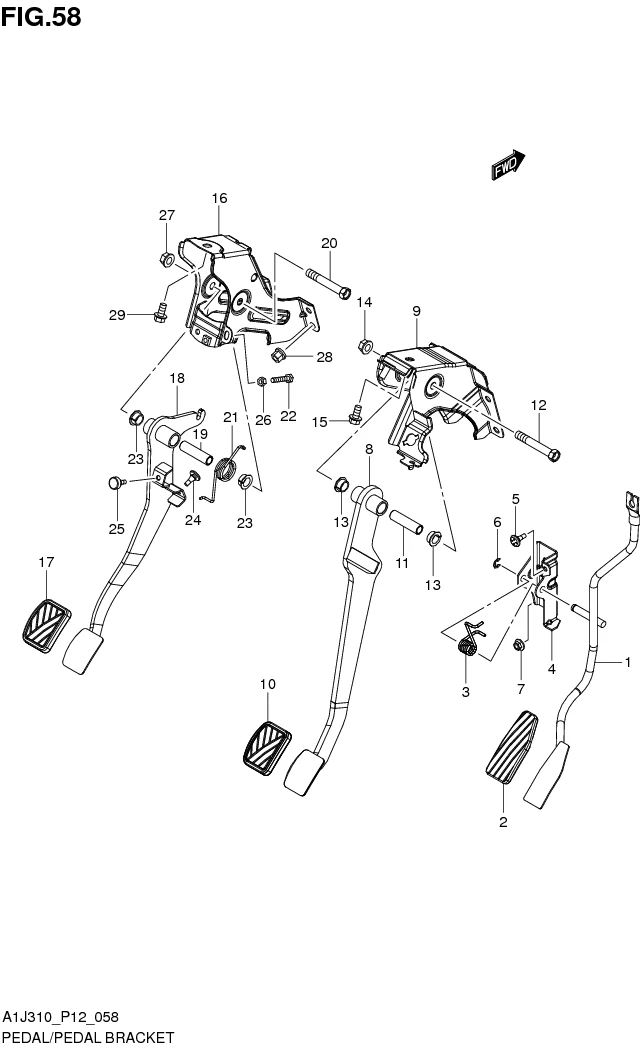

FIG. 58 PEDAL/PEDAL BRACKET

FIG. 58 PEDAL/PEDAL BRACKET
No No. Part Description Qty Price Per Pcs Remarks
1 49410-67L00-000
SUB: 49410B67L00N000		 PEDAL, ACCELERATOR 1 Rp86.500
2 49451M60B00-000 PAD, ACCELERATOR PEDAL 1 Rp12.500
3 49491-58J00-000
SUB: 49491B58J00N000		 SPRING, ACCELERATOR PEDAL 1 Rp9.000
4 49511-67L00-000
SUB: 49511B67L00N000		 BRACKET, ACCELERATOR PEDAL 1 Rp14.000
5 09321M06026-000 CUSHION 1 Rp4.500
6 08332-1107A-000 E RING 1 Rp17.000
7 09159-06076-000 NUT 2 Rp19.500
8 49610-67L00-000
SUB: 49610B67L00N000		 PEDAL, BRAKE 1 Rp226.000
9 49710-67L00-000
SUB: 49710B67L00N000		 BRACKET, BRAKE PEDAL 1 Rp41.000
10 49751M58J00-000 PAD, PEDAL 1 Rp9.500
11 49871M80F00-000 SPACER, BRAKE PEDAL SHAFT 1 Rp8.500
12 49881M75J00-000 BOLT, BRAKE PEDAL SHAFT 1 Rp9.500
13 09306M13004-000
SUB: 09307M13005-000		 BUSH 2 Rp11.500
14 08316-1010A-000
SUB: 08316B1010AN000		 NUT 1 Rp3.500
15 01550-0816A-000
SUB: 01550B0816AN000		 BOLT 1 Rp6.000
16 49720-67L00-000
SUB: 49720B67L00N000		 BRACKET, CLUTCH PEDAL 1 Rp53.500
17 49751M58J00-000 PAD, PEDAL 1 Rp9.500
18 49810-67L00-000
SUB: 49810B67L00N000		 PEDAL, CLUTCH 1 Rp242.500
19 49871M80F00-000 SPACER, CLUTCH PEDAL SHAFT 1 Rp8.500
20 49881M75J00-000 BOLT, CLUTCH PEDAL SHAFT 1 Rp9.500
21 49891M50E00-000 SPRING, CLUTCH PEDAL 1 Rp10.500
22 09100M06150-000 BOLT (6X31) 1 Rp4.500
23 09306M13004-000
SUB: 09307M13005-000		 BUSH 2 Rp11.500
24 09321M06026-000 CUSHION 1 Rp4.500
25 09321-06033-000 CUSHION 1 Rp19.000
26 08310-0006A-000
SUB: 08310B0006AN000		 NUT 1 Rp2.500
27 08316-1010A-000
SUB: 08316B1010AN000		 NUT 1 Rp3.500
28 09159-08127-000 NUT 2 Rp11.000
29 01550-0816A-000
SUB: 01550B0816AN000		 BOLT 1 Rp6.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
