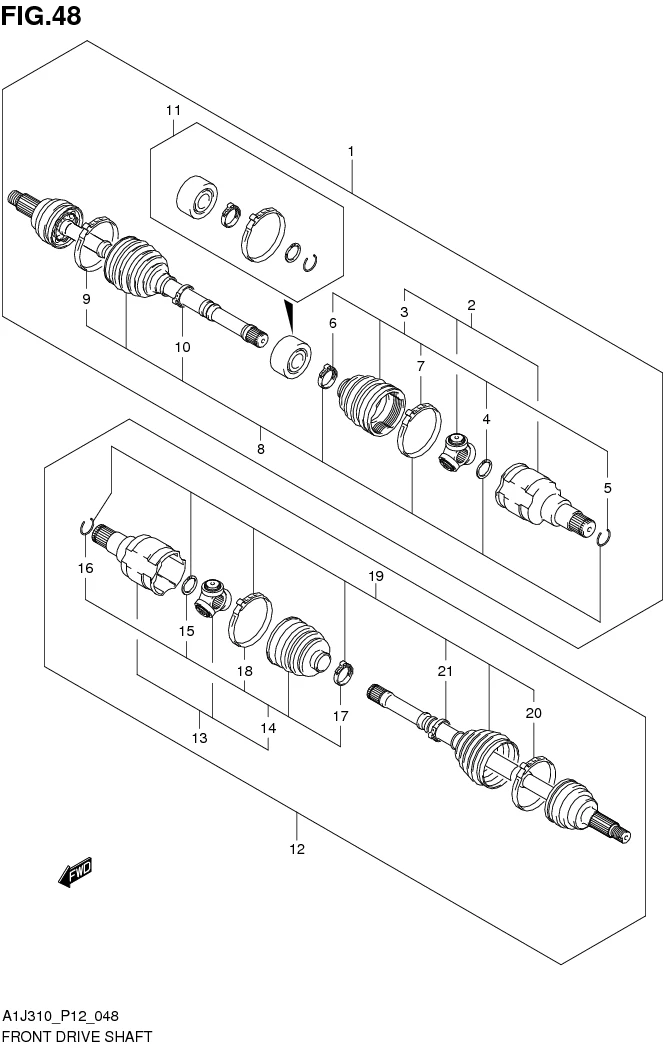

FIG. 48 FRONT DRIVE SHAFT

FIG. 48 FRONT DRIVE SHAFT
No No. Part Description Qty Price Per Pcs Remarks
1 44101-67LJ0-000
SUB: 44101B67LJ0N000		 SHAFT ASSY, FRONT DRIVE RH 1 Rp1.846.500
2 44117-67LJ0-000
SUB: 44117B67LJ0N000		 •JOINT SET, DIFF SIDE 1 Rp1.189.500
3 44119-67LJ0-000
SUB: 44119B67LJ0N000		 ••BOOT SET, DIFF SIDE 1 Rp268.500
4 27214-44D00-000
SUB: 27214B44D00N000		 •••CIRCLIP 1 Rp25.000
5 44112-58JA0-000
SUB: 44112B58JA0N000		 •••CIRCLIP 1 Rp25.000
6 44123-79JA0-000
SUB: 44123B79JA0N000		 •••CLAMP 1 Rp47.000
7 44126-58M10-000
SUB: 44126B58M10N000		 •••CLAMP 1 Rp66.000
8 44118-67LJ0-000
SUB: 44118B67LJ0N000		 •BOOT SET, WHEEL SIDE 1 Rp567.000
9 44122-67LJ0-000
SUB: 44122B67LJ0N000		 ••CLAMP 1 Rp66.000
10 44124-79JA0-000
SUB: 44124B79JA0N000		 ••CLAMP 1 Rp44.500
11 44125-67LJ0-000
SUB: 44125B67LJ0N000		 •DAMPER SET 1 Rp88.000
12 44102-67LJ0-000
SUB: 44102B67LJ0N000		 SHAFT ASSY, FRONT DRIVE LH 1 Rp1.846.500
13 44117-67LJ0-000
SUB: 44117B67LJ0N000		 •JOINT SET, DIFF SIDE 1 Rp1.189.500
14 44119-67LJ0-000
SUB: 44119B67LJ0N000		 ••BOOT SET, DIFF SIDE 1 Rp268.500
15 27214-44D00-000
SUB: 27214B44D00N000		 •••CIRCLIP 1 Rp25.000
16 44112-58JA0-000
SUB: 44112B58JA0N000		 •••CIRCLIP 1 Rp25.000
17 44123-79JA0-000
SUB: 44123B79JA0N000		 •••CLAMP 1 Rp47.000
18 44126-58M10-000
SUB: 44126B58M10N000		 •••CLAMP 1 Rp66.000
19 44118-67LJ0-000
SUB: 44118B67LJ0N000		 •BOOT SET, WHEEL SIDE 1 Rp567.000
20 44122-67LJ0-000
SUB: 44122B67LJ0N000		 ••CLAMP 1 Rp66.000
21 44124-79JA0-000
SUB: 44124B79JA0N000		 ••CLAMP 1 Rp44.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
