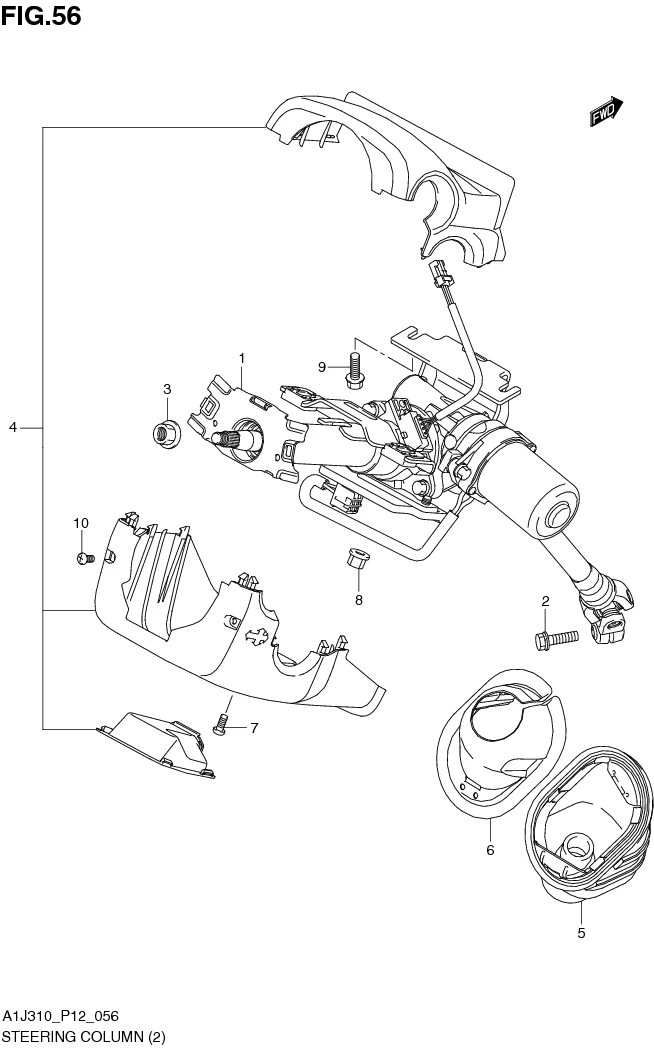

FIG. 56 STEERING COLUMN (GL,GX)

FIG. 56 STEERING COLUMN (GL,GX)

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	48200M67L10-000	COLUMN ASSY, COLPS STEERING	1	Rp13.702.000
2	09117-08106-000	BOLT (8X30)	1	Rp23.500
3	08316-1012A-000 SUB: 08316B1012AN000	NUT	1	Rp6.500
4	48400-67L00-5PK SUB: 48400B67L00N5PK	COVER ASSY, STEERING COLUMN (BLACK)	1	Rp81.500
5	48480-58J00-000 SUB: 48480B58J00N000	COVER ASSY, STEERING JOINT	1	Rp112.500
6	48481-72J00-000 SUB: 48481B72J00N000	COVER, STEERING JOINT UPPER	1	Rp18.500
7	09136M05030-000	SCREW (5X12)	1	Rp4.500
8	09159-08127-000 SUB: 09159-08069-000	NUT	2	Rp11.000
9	01551-0825A-000	BOLT	2	Rp16.000
10	03211M0512A-000	SCREW	2	Rp4.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
