Preview Engine Transmission Electrical Suspension Body

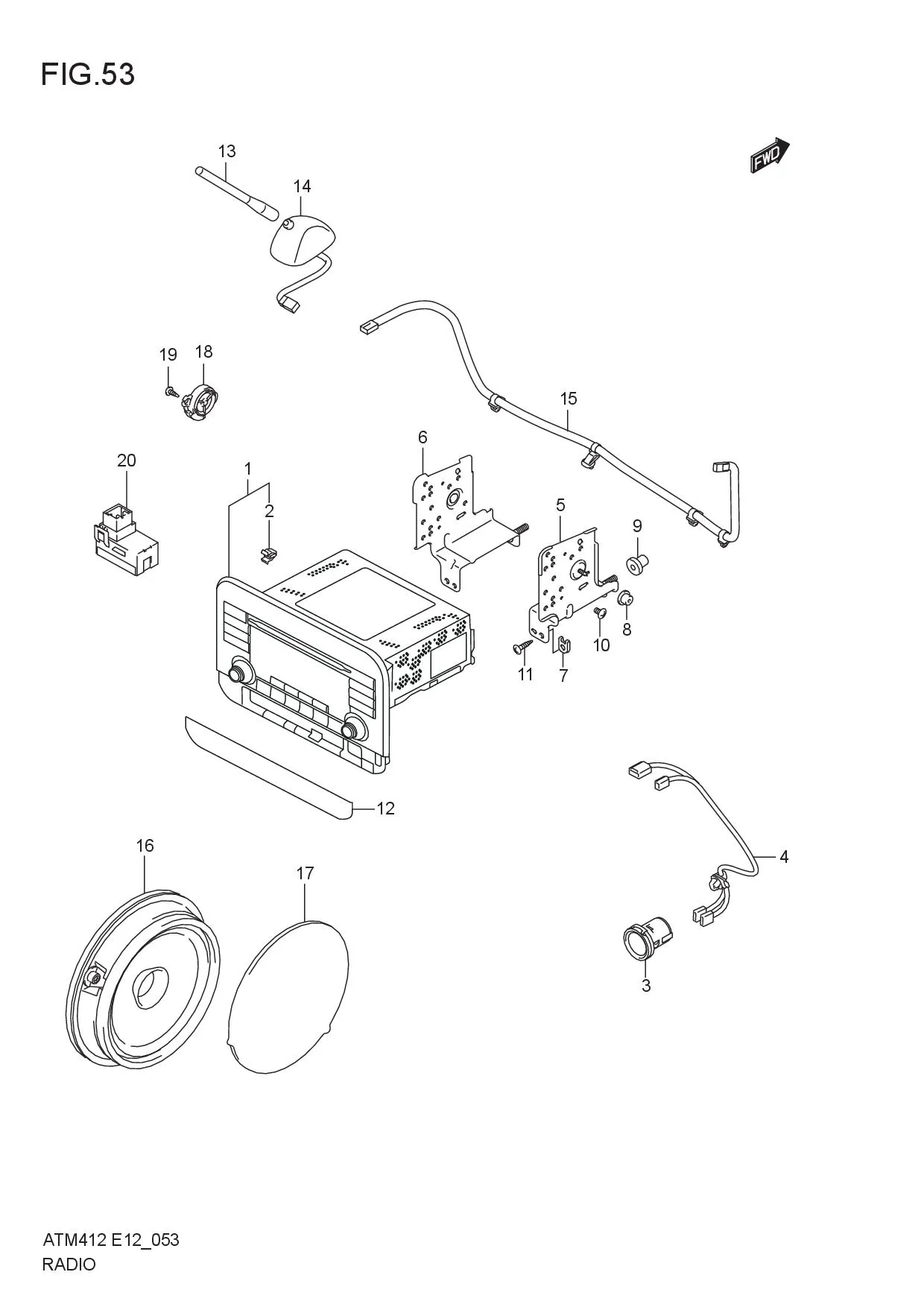

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1-2	DISCONTINUE SUB: 39101M66R60-BKZ	TUNER ASSY	1	-	GX
1-1	DISCONTINUE SUB: 39101M66R40-BKZ	TUNER ASSY	1	-	5MT:GL
2	09409-08349-000 SUB: 09409B08342N000	•CLIP	4	Rp4.500
3	39105M66R00-5PK	SOCKET, USB & AUX	1	Rp124.000
4	39106M66R00-000	CABLE, USB & AUX	1	Rp292.000
5	39321M66R00-000	BRACKET, TUNER RH	1	Rp28.500
6	39322M66R00-000	BRACKET, TUNER LH	1	Rp28.500
7	09148M05L04-000	NUT	2	Rp5.000
8	34955M54G10-000	BUSH,TUNER BRACKET	2	Rp6.500
9	34955M79M00-000	BUSH,TUNER BRACKET	2	Rp18.500
10	02142-0508A-000 SUB: 02142B0508AN000	SCREW	6	Rp3.500
11	03541-0516A-000 SUB: 03541B0516AN000	SCREW	4	Rp3.500
12	39163M66R00-ZCA	PLATE,TUNER FACE	1	Rp176.500
13	39251M74LA0-000 SUB: 39251M74L00-000	ROD, ANTENNA	1	Rp97.500
14	39253M66RA0-000 SUB: 39253M66R00-000	BASE, ANTENNA	1	Rp696.500
15	39270M66R00-000	FEEDER, ANT I/P	1	Rp219.500
16-1	39102M74LA1-000 SUB: 39102M74LA0-000	SPEAKER ASSY	2	Rp504.500	5MT:GL
16-2	39102M74LA1-000 SUB: 39102M74LA0-000	SPEAKER ASSY	4	Rp504.500	GX
17	39112M74L00-000	SPEAKER,SEAL	2	Rp37.500	5MT:GL
18	39102M65M00-000	SPEAKER ASSY, TWEETER	2	Rp227.500	GX
19	03541-0410A-000	SCREW	4	Rp11.000	GX
20	39813M66R00-000	MIC ASSY,HANDS FREE	1	Rp433.500	GX
