Electrical - Suzuki Spare Part

Ubah pencarian

Atau cari dengan

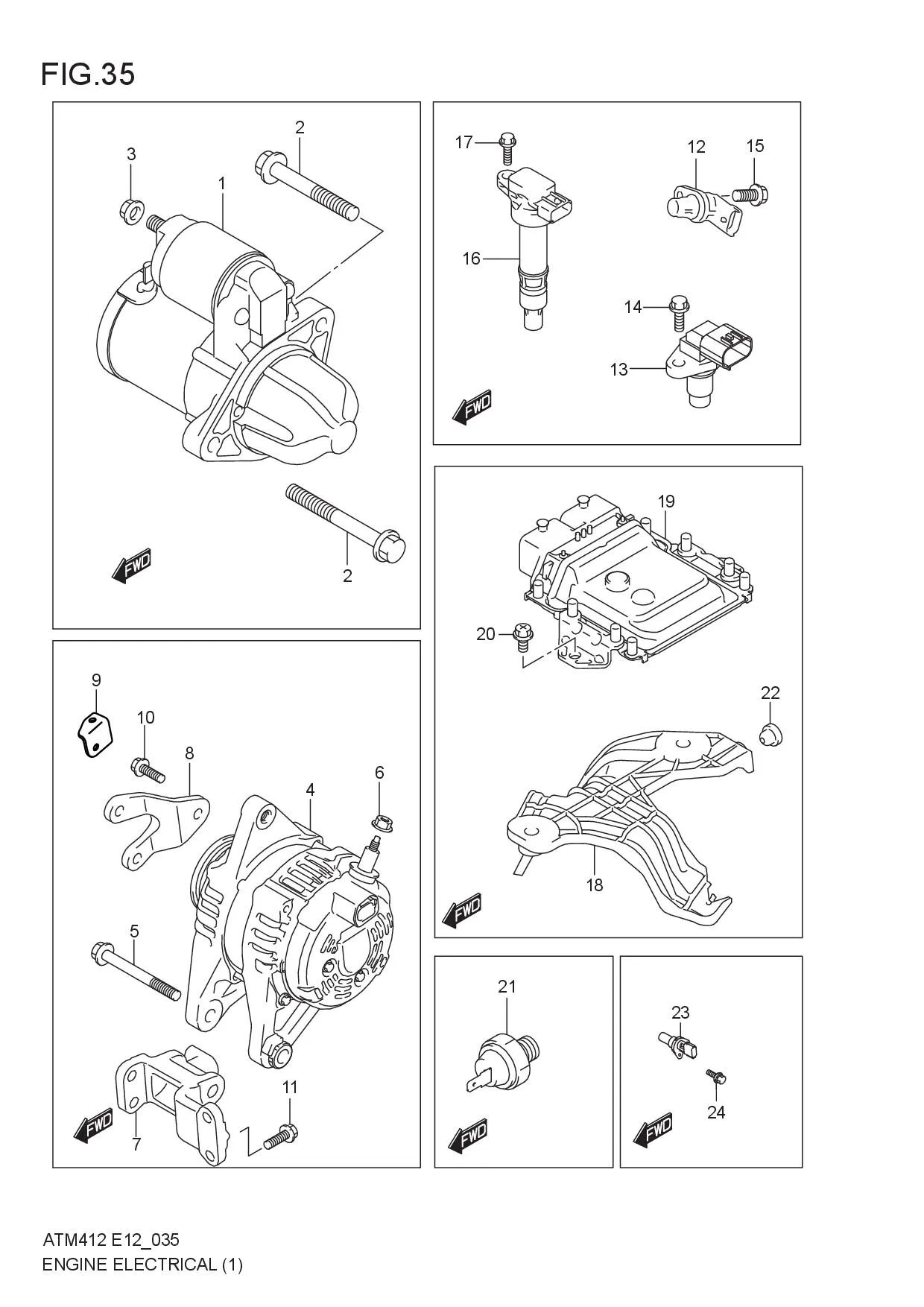

Preview Engine Transmission Electrical Suspension Body

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	31100M71P01-000 SUB: 31100M71P00-000	MOTOR ASSY, STARTING	1	Rp3.788.000
2	01550-1060A-000	BOLT	2	Rp5.500
3	08316-1008A-000 SUB: 08316B1008AN000	NUT	1	Rp3.500
4	31400M68P01-000 SUB: 31400M68P00-000	GENERATOR ASSY	1	Rp4.703.000
5	01550-1085A-000	BOLT	1	Rp7.000
6	08316-1006A-000 SUB: 08316B1006AN000	NUT	1	Rp2.000
7	11551M66R00-000	BRACKET, GENERATOR	1	Rp228.000
8	11561M68PA0-000	ARM, GEN BELT ADJ	1	Rp28.500
9	11562M66R00-000	ADJUSTER, GEN BELT	1	Rp12.500
10	11564-68P00-000	BOLT, GENERATOR	1	Rp23.500
11	01550-0825A-000 SUB: 01550B0825AN000	BOLT	4	Rp3.500
12	33220M68P00-000	SENSOR ASSY, CMP	1	Rp505.500	CAM
13	33220M53M00-000	SENSOR ASSY, POSITION	1	Rp883.500	CRANK
14	09103M06317-000	BOLT (6X16)	1	Rp6.500
15	01550-0616A-000 SUB: 01550B0616AN000	BOLT	1	Rp3.500
16	33400M68P00-000 SUB: 33400M68PA0-000	COIL ASSY, IGNITION	4	Rp597.500
17	09135M06032-000 SUB: 09135M06029-000	BOLT (6X23)	4	Rp9.000
18	33924M66R00-000	BRACKET, EPI CONT	1	Rp79.000
19-1	33920M66R21-000 SUB: 33920M66R20-000	CONTROLLER ASSY, EPI-A/C	1	Rp3.405.000	5MT
19-2	33920M66R31-000 SUB: 33920M66R30-000	CONTROLLER ASSY, EPI-A/C	1	Rp3.405.000	5AGS
20	02162-0612A-000	SCREW	2	Rp11.000
21	37820M68K00-000	SWITCH ASSY, OIL PRESSURE	1	Rp199.500
22	34955-70K00-000 SUB: 34955B70K00N000	BUSH,EPI BRKT	1	Rp8.500
23	38888M76M10-000	SENSOR ASSY,CLUTCH SPEED	1	Rp639.500	5AGS
24	01550-0616A-000 SUB: 01550B0616AN000	BOLT	1	Rp3.500	5AGS
