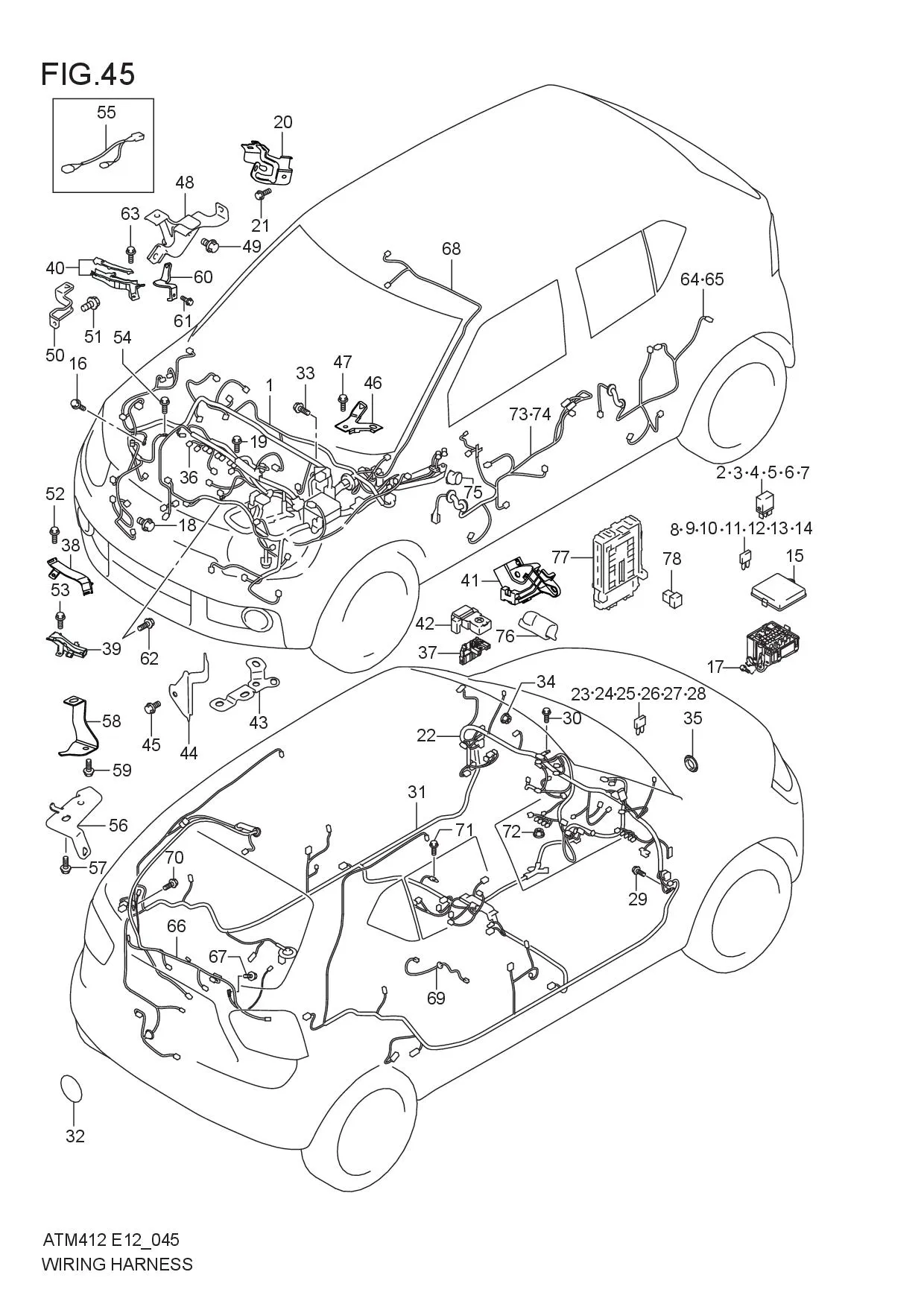

WIRING HARNESS

WIRING HARNESS
No No. Part Description Qty Price Per Pcs Remarks
1-2 36610M66R90-000 HARNESS ASSY, MAIN 1 Rp6.005.000 5MT:GX
1-1 36610M66R80-000 HARNESS ASSY, MAIN 1 Rp5.868.000 5MT:GL
1-3 36610M66RA0-000
SUB: 36610M66RB0-000		 HARNESS ASSY, MAIN 1 Rp5.868.000 5AGS:GX
2 38860M76M00-000 •RELAY ASSY 1 Rp58.500 FOG
3 38860M76M00-000 •RELAY ASSY 3 Rp58.500 RADIATOR
4 38860M76M00-000 •RELAY ASSY 1 Rp58.500 HORN
5 38860M76M00-000 •RELAY ASSY 1 Rp58.500 HTR
6 38860M76M00-000 •RELAY ASSY 1 Rp58.500 STARTER
7 38860M76M00-000 •RELAY ASSY 3 Rp58.500 HEAD LAMP
8 09481-05501-000 •FUSE (05A) 0 Rp17.000
9 09481-10504-000 •FUSE (10A) 0 Rp12.500
10 09481-15504-000 •FUSE (15A) 0 Rp13.000
11 09481-20504-000 •FUSE (20A) 0 Rp14.500
12 09481-25504-000 •FUSE (25A) 0 Rp17.500
13 09481-30504-000 •FUSE (30A) 0 Rp15.000
14 09481M40403-000
SUB: 09481M40402-000		 •FUSE (40A) 0 Rp22.500
15 36717M66R00-000 COVER, RELAY BOX 1 Rp63.000
16 09115-06005-000 BOLT (6X16),GND 4 Rp14.000
17 02162-0616A-000 BOLT,RELAY BOX 2 Rp3.000
18 02162-0616A-000 BOLT,HARN PROTECTOR 1 Rp3.000
19 DISCONTINUE
SUB: 01550B0612AN000		 BOLT,GND WIRE 1 -
20 36614M66R00-000 BRACKET,MAIN HARN 1 Rp20.000 5AGS
21 02162-0612A-000 BOLT,MAIN HARN BRKT 1 Rp11.000 5AGS
22-3 36620M66RA2-000
SUB: 36620M66RC0-000		 HARNESS ASSY, INSTRUMENT PANEL 1 Rp3.279.000 5AGS:GX
22-2 36620M66RA2-000
SUB: 36620M66R90-000		 HARNESS ASSY, INSTRUMENT PANEL 1 Rp3.279.000 5MT:GX
22-1 36620M66R40-000 HARNESS ASSY, INSTRUMENT PANEL 1 Rp3.355.500 5MT:GL
23 09481-05501-000 •FUSE (05A) 6 Rp17.000
24 09481-10504-000 •FUSE (10A) 5 Rp12.500
25 09481-15504-000 •FUSE (15A) 5 Rp13.000
26 09481-20504-000 •FUSE (20A) 1 Rp14.500
27 09481-25504-000 •FUSE (25A) 1 Rp17.500
28 09481M30402-000 •FUSE (30A) 1 Rp20.500
29 09115-06005-000 BOLT (6X16) 2 Rp14.000
30 02162-0612A-000 BOLT,I/P HARN GND(INSTPN) 1 Rp11.000
31-3 36630M66RE0-000 HARNESS ASSY, FLOOR 1 Rp2.220.000 5AGS:GX
31-2 36630M66RD0-000 HARNESS ASSY, FLOOR 1 Rp2.230.000 5MT:GX
31-1 36630M66RA0-000 HARNESS ASSY, FLOOR 1 Rp2.230.000 5MT:GL
32 DISCONTINUE
SUB: 67627B70000N000		 SEAL,HARNESS HOLE 0 -
33 09115-06005-000 BOLT (6X16) 2 Rp14.000
34 09159-08127-000
SUB: 09159M08153-000		 NUT,J/B 2 Rp11.000
35 09250-35005-000 CAP,HARN HOLE FLOOR 1 Rp27.000 GL;5AGS:GX
36-1 36650M66R00-000 HARNESS ASSY, ENGINE 1 Rp4.681.000 5MT
36-2 36650M66R21-000
SUB: 36650M66R20-000		 HARNESS ASSY, ENGINE 1 Rp4.681.000 5AGS
37 36739M66R00-000 •FUSE, BATTERY 1 Rp338.500
38 36677M68P20-000 •PROTECTOR,ENG HARN 1 Rp97.000
39 36677M68P40-000 •PROTECTOR,ENG HARN 1 Rp84.000
40 36677M66R50-000 •PROTECTOR,ENG HARN 1 Rp133.500
41 36677M66R20-000 •PROTECTOR,ENG HARN ECM 1 Rp76.500
42 36694-68K10-000 •COVER, BATTERY TERMINAL 1 Rp98.000
43 36651M68PC0-000 BRACKET,ENG HARN 1 Rp10.500 5MT
44 36651M68P00-000 BRACKET,ENG HARN 1 Rp9.500 5MT
45 DISCONTINUE
SUB: 01550B0612AN000		 BOLT,ENG HARN BRKT 1 - 5MT
46 36651M68P10-000 BRACKET,ENG HARN 1 Rp39.000 5MT
47 DISCONTINUE
SUB: 01550B0612AN000		 BOLT,ENG HARN BRKT 1 - 5MT
48 36653M62R00-000 BRACKET,ENG HARN PROTECTOR 1 Rp40.000
49 DISCONTINUE
SUB: 01550B0612AN000		 BOLT,ENG HARN BRKT 1 -
50 36653M68P80-000 BRACKET,ENG HARN 1 Rp8.500
51 DISCONTINUE
SUB: 01550B0612AN000		 BOLT,ENG HARN BRKT 1 -
52 01550-0616A-000
SUB: 01550B0616AN000		 BOLT,ENG HARN MT PROTECTOR 1 Rp3.500 5MT
53 01550-0616A-000
SUB: 01550B0616AN000		 BOLT,ENG HARN PROTECTOR 1 Rp3.500 5MT
54 DISCONTINUE
SUB: 01550B0612AN000		 BOLT,NO.5 GND 1 -
55 36691M66R00-000 WIRE, A/B 1 Rp159.500
56 36651M62R10-000 BRACKET,ENG HARN 1 Rp12.500 5AGS
57 DISCONTINUE
SUB: 01550B0612AN000		 BOLT,ENG HARN BRKT 1 - 5AGS
58 36653M81P00-000 BRACKET,CABLE 1 Rp10.500 5AGS
59 DISCONTINUE
SUB: 01550B0612AN000		 BOLT,CABLE BRKT 1 - 5AGS
60 36653M81P10-000 BRACKET,CABLE SIDE 1 Rp12.000 5AGS
61 DISCONTINUE
SUB: 01550B0612AN000		 BOLT,CABLE SIDE BRKT 1 - 5AGS
62 01550-0616A-000
SUB: 01550B0616AN000		 BOLT,ENG HARN PROTECTOR 1 Rp3.500 5AGS
63 01550-0616A-000
SUB: 01550B0616AN000		 BOLT,AGS HARN PROTECTOR 1 Rp3.500 5AGS
64 36751M66R20-000 WIRE, REAR DOOR RH SIDE 1 Rp194.500
65 36751M66RC0-000 WIRE, REAR DOOR LH SIDE 1 Rp194.500
66-1 36680M66R20-000 HARNESS ASSY, BACK DOOR 1 Rp360.500 5MT:GL
66-2 36680M66R20-000 HARNESS ASSY, BACK DOOR 1 Rp360.500 5AGS:GX
66-3 36680M66R30-000 HARNESS ASSY, BACK DOOR 1 Rp360.500 5MT:GX
67 09115-06005-000 BOLT (6X16),BACK DOOR GND 1 Rp14.000
68-1 36820M66R30-000 WIRE, ROOF 1 Rp150.000 5MT:GL
68-2 36820M66R40-000 WIRE, ROOF 1 Rp148.000 GX
69 36840M66R00-000 WIRE, FUEL 1 Rp134.000
70 09115-06005-000 BOLT,FUEL GND 1 Rp14.000
71 02162-0612A-000 BOLT,GND 1 Rp11.000
72 08310-0006A-000
SUB: 08310B0006AN000		 NUT,GND 1 Rp2.500
73-1 36756M66R10-000 WIRE, DRIVER DOOR 1 Rp343.500 5MT:GL
73-3 36756M66R30-000 WIRE, DRIVER DOOR 1 Rp343.500 5AGS:GX
73-2 36756M66R50-000 WIRE, DRIVER DOOR 1 Rp376.000 5MT:GX
74-1 36757M66R10-000 WIRE, SUB DOOR 1 Rp194.500 5MT:GL
74-2 36757M66R50-000 WIRE, SUB DOOR 1 Rp245.500 5MT:GX
74-3 36757M66R30-000 WIRE, SUB DOOR 1 Rp194.500 5AGS:GX
75 36759M66R00-000 PROTECTOR,DOOR HARN 2 Rp16.000
76 36997M68P10-000 COVER,TERMINAL 1 Rp65.000
77-1 36710M66RA1-000
SUB: 36710M66R00-000		 BOX ASSY,JUNCTION 1 Rp1.637.000 GL;5AGS
77-2 36710M68PA2-000
SUB: 36710M68P20-000		 BOX ASSY,JUNCTION 1 Rp1.566.500 5MT GX
78 38860M76M00-000 RELAY ASSY,RR DEF 1 Rp58.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
