IGNIS

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL ENGINE ELECTRICALSTARTING MOTORGENERATORBATTERYSPEEDOMETERHEAD LAMP (W/HALOGEN)HEAD LAMP (W/LED)FRONT FOG LAMP (W/FRONT FOG LAMP)REAR LAMPROOM LAMPWIRING HARNESSELECTRICAL CONTROL BODYELECTRICAL CONTROL INSTRUMENTAL PANELLOCK SET (5MT:GL;5AGS:GX)LOCK SET (5MT:GX)FRONT WINDOW WIPERWINDOW WASHERREAR WINDOW WIPERAUDIO

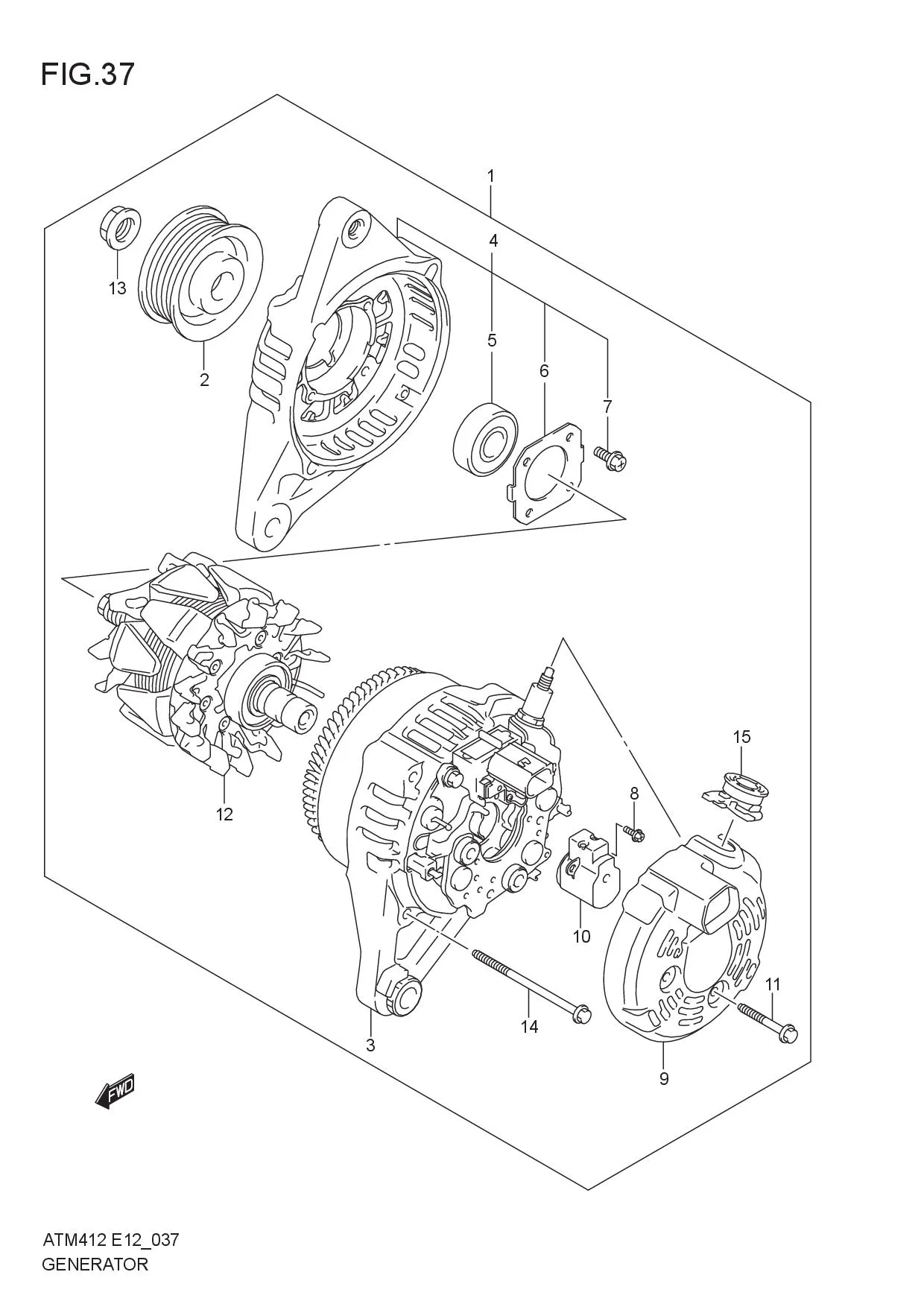

GENERATOR

GENERATOR
No No. Part Description Qty Price Per Pcs Remarks
1 31400M68P01-000
SUB: 31400M68P00-000		 GENERATOR ASSY 1 Rp4.703.000
2 31171M68P00-000 •PULLEY 1 Rp255.500
3 31401M68P00-000 •COIL ASSY, ALTERNATOR 1 Rp4.795.000
4 31580M68P00-000 •FRAME ASSY, DRIVE END 1 Rp1.157.500
5 31582M79M10-000 ••BEARING, BALL 1 Rp468.000
6 DISCONTINUE
SUB: 31585M79G00-000		 ••RETAINER, BEARING 1 -
7 DISCONTINUE
SUB: 31588M79G00-000		 ••SCREW 4 -
8 31586M86J10-000 •SCREW 3 Rp11.500
9 31614M79M00-000 •COVER, END RR 1 Rp195.000
10 31656M79M10-000 •HOLDER SUB-ASSY, BRUSH 1 Rp276.000
11 31692M79M10-000 •BOLT 3 Rp35.000
12 31710M79M10-000 •ROTOR ASSY 1 Rp2.005.000
13 DISCONTINUE
SUB: 31775M79G00-000		 •NUT 1 -
14 31778M71M00-000 •BOLT, THROUGH 4 Rp738.000
15 32514M79M00-000 •INSULATION BUSH, TERMINAL 1 Rp19.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
