IGNIS

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL ENGINE ELECTRICALSTARTING MOTORGENERATORBATTERYSPEEDOMETERHEAD LAMP (W/HALOGEN)HEAD LAMP (W/LED)FRONT FOG LAMP (W/FRONT FOG LAMP)REAR LAMPROOM LAMPWIRING HARNESSELECTRICAL CONTROL BODYELECTRICAL CONTROL INSTRUMENTAL PANELLOCK SET (5MT:GL;5AGS:GX)LOCK SET (5MT:GX)FRONT WINDOW WIPERWINDOW WASHERREAR WINDOW WIPERAUDIO

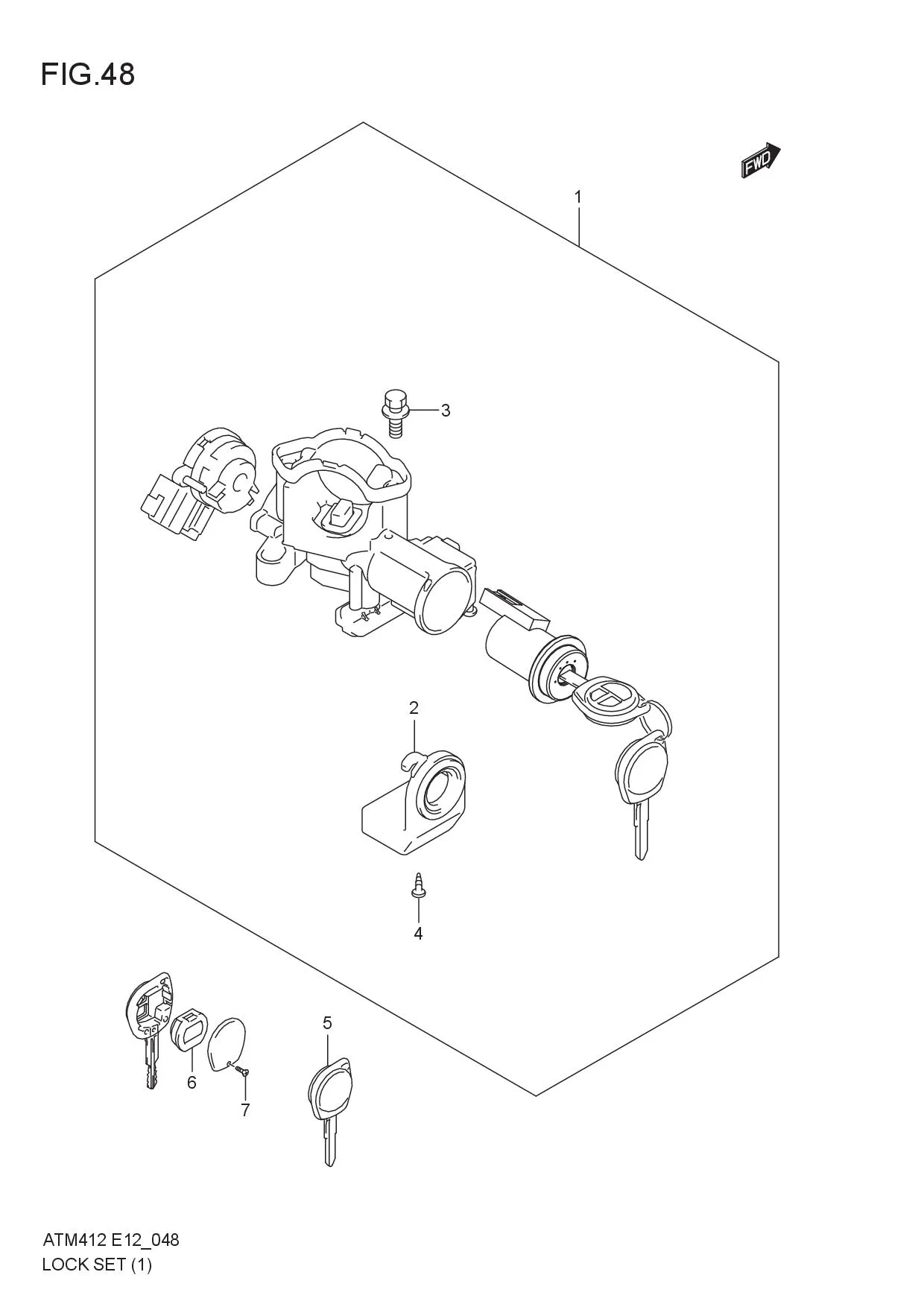

LOCK SET (5MT:GL;5AGS:GX)

LOCK SET (5MT:GL;5AGS:GX)
No No. Part Description Qty Price Per Pcs Remarks
1 37019M66R00-000 LOCK SET 1 Rp1.479.500
2 33970M68P01-000
SUB: 33970M68P00-000		 •CONTROLLER ASSY, IMM 1 Rp621.000
3 37152M75J00-000 •BOLT, STRG LOCK 2 Rp16.000
4 37152-75J10-000
SUB: 37152B75J10N000		 •SCREW,IMM CONT 1 Rp27.000
5-1 37145M68P10-000 BLANK KEY 1 Rp617.500
5-2 37145M68P01-000
SUB: 37145M68P00-000		 BLANK KEY 1 Rp717.000
6 37182M68P00-000 •SWITCH ASSY, TRANSMITTER 1 Rp438.500
7 37186-81A00-000 •SCREW 1 Rp23.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
