IGNIS

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL ENGINE ELECTRICALSTARTING MOTORGENERATORBATTERYSPEEDOMETERHEAD LAMP (W/HALOGEN)HEAD LAMP (W/LED)FRONT FOG LAMP (W/FRONT FOG LAMP)REAR LAMPROOM LAMPWIRING HARNESSELECTRICAL CONTROL BODYELECTRICAL CONTROL INSTRUMENTAL PANELLOCK SET (5MT:GL;5AGS:GX)LOCK SET (5MT:GX)FRONT WINDOW WIPERWINDOW WASHERREAR WINDOW WIPERAUDIO

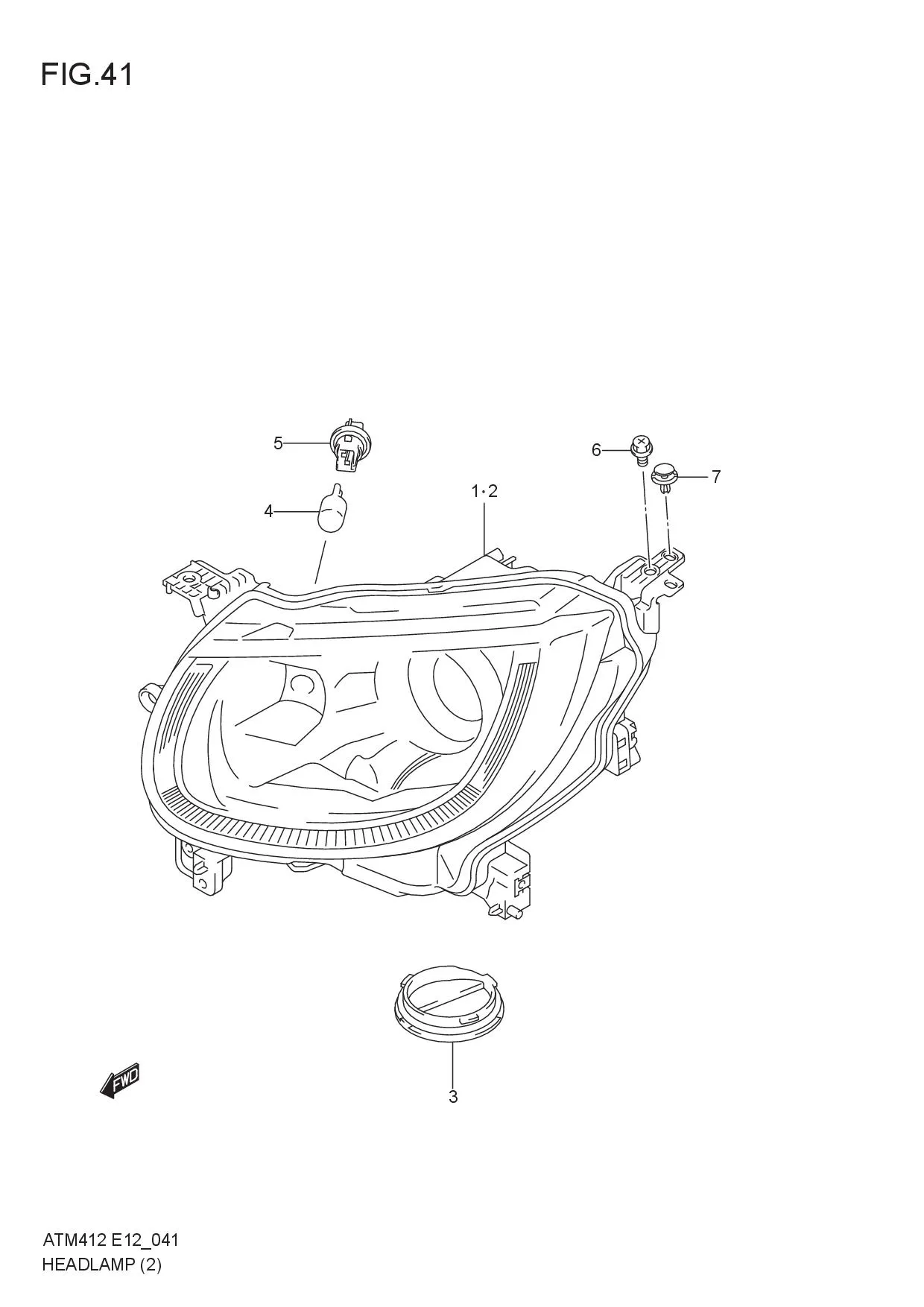

HEAD LAMP (W/LED)

HEAD LAMP (W/LED)
No No. Part Description Qty Price Per Pcs Remarks
1 35121M66R70-000 UNIT, HEADLAMP, RH 1 Rp5.864.500
2 35321M66R70-000 UNIT, HEADLAMP, LH 1 Rp5.864.500
3 35267M62R00-000 BACK COVER ASSY 1 Rp33.000
4 09471-12202-000 BULB 1 Rp78.000
5 35118-75H20-000 SOCKET 1 Rp91.500
6 35181-71L00-000 SCREW, HEADLAMP 8 Rp22.500
7 09409M08006-000
SUB: 09409M08L01-000		 CLIP, HEADLAMP 2 Rp5.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
