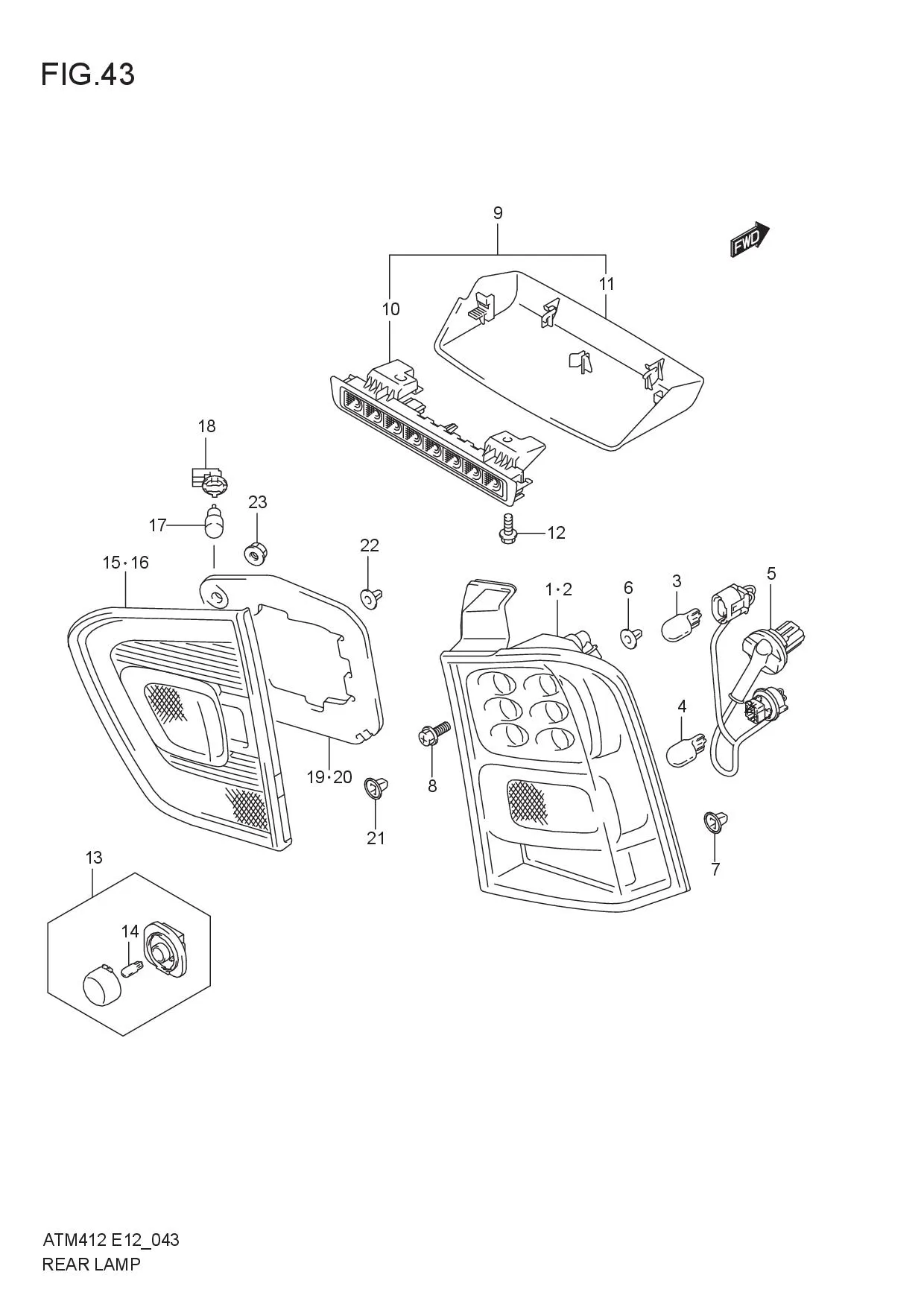

No	No. Part	Description	Qty	Price Per Pcs
1	35650M66R00-000	LAMP UNIT, RR COMB RH	1	Rp359.500
2	35750M66R00-000	LAMP UNIT, RR COMB LH	1	Rp359.500
3	09471-12046-000 SUB: 09471B12046N000	BULB (12V 21/5W)	2	Rp21.500
4	09471-12245-000 SUB: 09471B12245N000	BULB 12V 21W	2	Rp30.500
5	35658M66R00-000	WIRING HARNESS	2	Rp118.000
6	35153M59K20-000	GROMMET,REAR COMB LAMP UPPER	2	Rp8.000
7	35153M59K10-000	GROMMET,REAR COMB LAMP LOWER	2	Rp8.000
8	01551-0616C-000	SCREW,REAR COMB LAMP	4	Rp14.500
9	35810M66R00-5PK	LAMP ASSY,HIGH MOUNT STOP	1	Rp356.500
10	35820M66R00-000 SUB: 35820M66R00-5PK	•LAMP ASSY,HIGH MOUNT STOP	1	Rp379.000
11	35821M66R00-000	•COVER,HIGH MT STOP LAMP	1	Rp25.000
12	09122-76001-000	SCREW,HIGH MT STOP LAMP	2	Rp16.500
13	35910M83K03-000 SUB: 35910M83K02-000	LAMP ASSY,LICENSE	2	Rp49.000
14	09471-12216-000 SUB: 09471B12216N000	•BULB(12V,5W)	2	Rp15.000
15	35651M66R00-000	LAMP UNIT BACK UP, RH	1	Rp290.000
16	35751M66R00-000	LAMP UNIT BACK UP, LH	1	Rp290.000
17	09471-12146-000 SUB: 09471B12146N000	BULB(12V W16W)	2	Rp39.500
18	35818M65M00-000	BULB HOLDER	2	Rp153.000
19	36256M66R00-000	GASKET RH	1	Rp145.500
20	36276M66R00-000	GASKET LH	1	Rp145.500
21	35153M59K10-000	GROMMET,BACK UP LAMP LOWER	2	Rp8.000
22	35153M59K20-000	GROMMET,BACK UP LAMP UPPER	2	Rp8.000
23	08316-1006A-000 SUB: 08316B1006AN000	NUT,BACK UP LAMP	2	Rp2.000
