IGNIS

Preview Engine Transmission Electrical Suspension Body

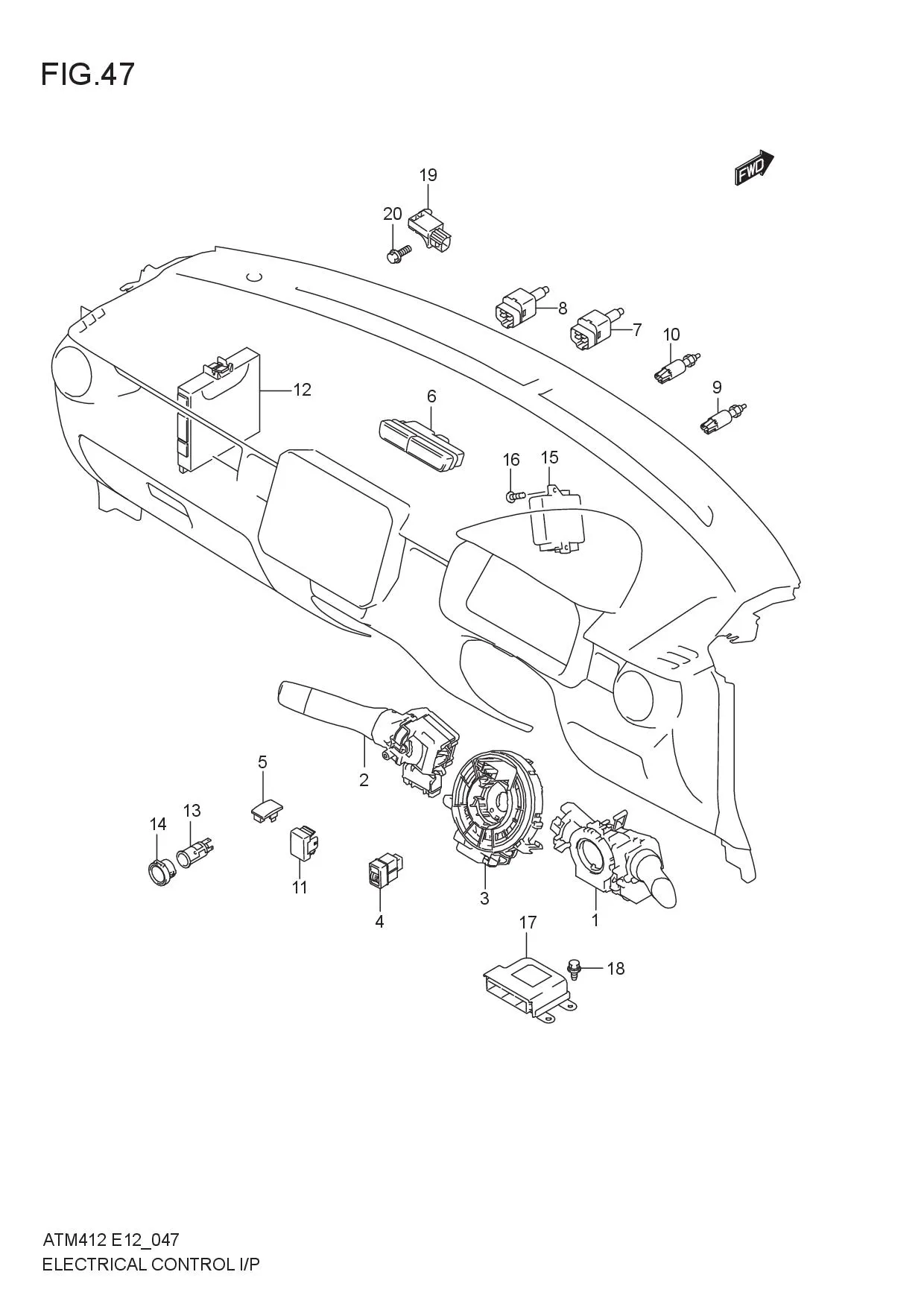

ELECTRICAL CONTROL INSTRUMENTAL PANEL

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1-2	37210M68P31-000 SUB: 37210M68P30-000	SWITCH ASSY, LIGHTING & TURN	1	Rp576.000	GX
1-1	37210M68P01-000 SUB: 37210M68P00-000	SWITCH ASSY, LIGHTING & TURN	1	Rp476.000	5MT:GL
2	37310M68P50-000	SWITCH ASSY, WIPER & WASHER	1	Rp650.000
3-1	37480M68P00-000	CABLE ASSY, CONTACT COIL	1	Rp439.500	5MT:GL
3-2	37480M68P20-000	CABLE ASSY, CONTACT COIL	1	Rp625.500	GX
4	35180M66R00-000	SWITCH ASSY, HEAD LAMP LEVELING	1	Rp114.000
5-1	37285M66R00-000	CAP, OPTION SW HOLE	3	Rp5.500
5-2	37285M66R00-000	CAP, OPTION SW HOLE	2	Rp5.500
6	37430M68P20-000	SWITCH ASSY, HAZARD & A/B IND	1	Rp235.500
7	37740M76G00-000 SUB: 37740M79G00-000	SET, STOP LAMP SW	1	Rp105.500	5MT
8	37740M83K00-000	SET, STOP LAMP SW	1	Rp109.000	5AGS
9	37970M74L02-000 SUB: 37970M74L01-000	SWITCH ASSY, CLUTCH	1	Rp165.500	5MT
10	37970M71M02-000 SUB: 37970M71M01-000	SWITCH ASSY, CLUTCH START	1	Rp86.500	5MT:GX
11	37285M66R00-000	CAP,OPTION SW HOLE	4	Rp5.500	GX
12-1	36775M66R22-000 SUB: 36775M66R20-000	CONTROLLER ASSY, BODY ELEC	1	Rp3.064.000	5MT:GL
12-2	36775M66R41-000 SUB: 36775M66R40-000	CONTROLLER ASSY, BODY ELEC	1	Rp3.492.000	5AGS:GX
12-3	36775M66RB1-000 SUB: 36775M66RB0-000	CONTROLLER ASSY, BODY ELEC	1	Rp5.278.500	5MT:GX
13	39420M83P00-000	BODY, SOCKET	1	Rp102.000
14	39440M66R00-5PK	CAP SOCKET (BLACK)	2	Rp10.000
15	38720M66R01-000 SUB: 38720M66R00-000	CONTROLLER ASSY,EPS	1	Rp3.053.000
16	02142-0516A-000 SUB: 02142B0516AN000	SCREW,EPS CONT	2	Rp3.500
17	38910M66R21-000 SUB: 38910M66R20-000	CONTROLLER ASSY,A/B	1	Rp1.311.000
18	09115-06004-000	BOLT	3	Rp19.500
19	38930M66R00-000	SENSOR ASSY,FORWARD	1	Rp337.000
20	02162-0620A-000	BOLT	1	Rp5.500
