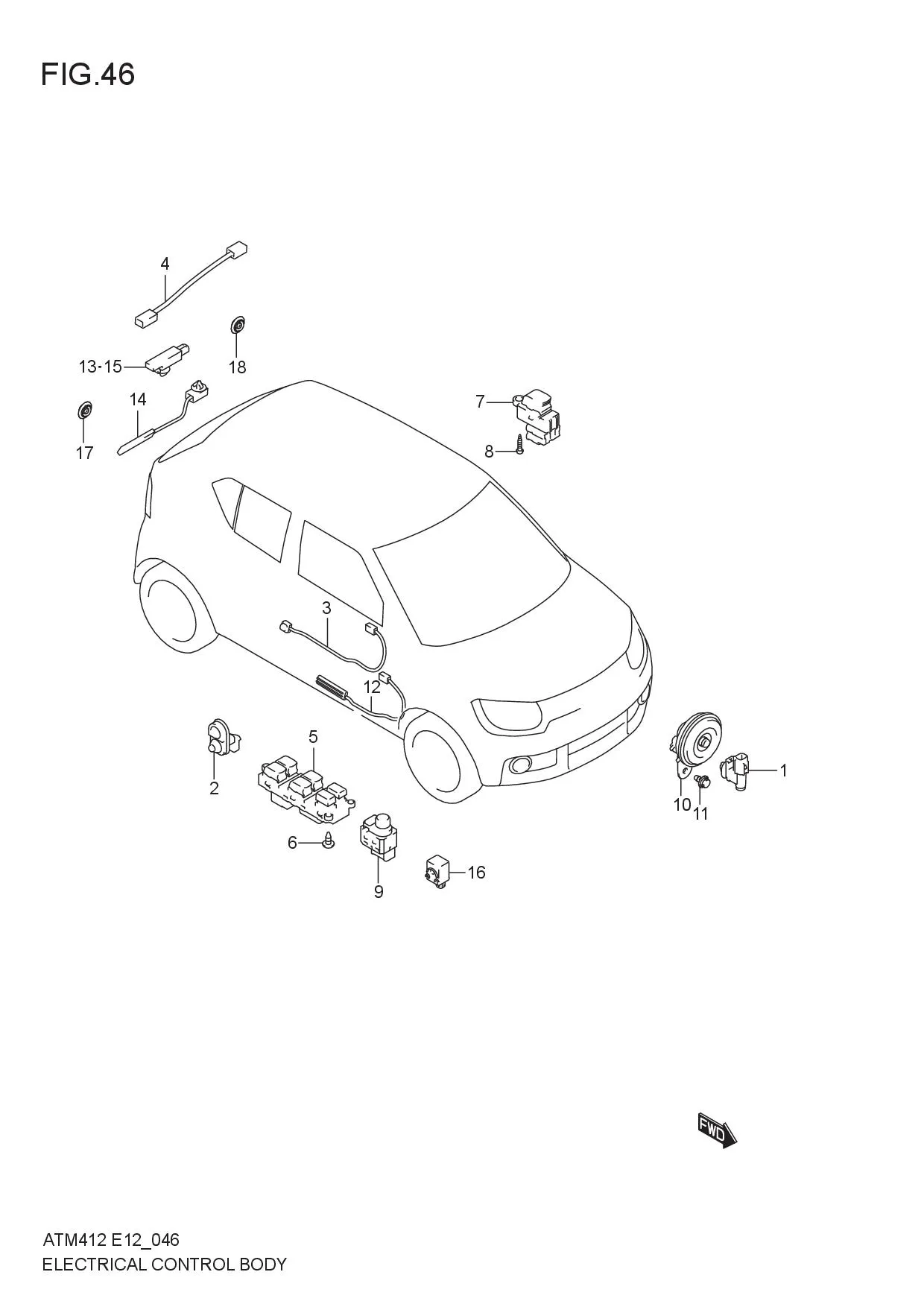

ELECTRICAL CONTROL BODY

ELECTRICAL CONTROL BODY
No No. Part Description Qty Price Per Pcs Remarks
1 95643M67P00-000 SENSOR, OUTSIDE AIR TEMP 1 Rp189.000 GX
2 37670M60M10-000 SWITCH ASSY, DOOR 4 Rp35.000
3 DISCONTINUE
SUB: 37177M66R00-000		 SWITCH ASSY, SIDE DOOR KLS 2 - 5MT:GX
4 37177M66R10-000 SWITCH ASSY, BACK DOOR & KLS 1 Rp184.000 5MT:GX
5 37990M68P32-000
SUB: 37990M68P30-000		 SWITCH ASSY, POWER WINDOW MA 1 Rp1.008.000
6 03541-0410A-000 SCREW 3 Rp11.000
7 37995M79M02-000
SUB: 37995M79M00-000		 SWITCH ASSY, POWER WINDOW SUB 3 Rp109.500
8 03541-0410A-000 SCREW 3 Rp11.000
9-2 37950M79M11-000 SWITCH ASSY, MIRROR 1 Rp205.500 GX
9-1 37950M79M01-000 SWITCH ASSY, MIRROR 1 Rp167.000 GL
10 38500M66R00-000 HORN ASSY, LOW PITCHED 1 Rp175.000
11 09115-08001-000 BOLT (8X18) 1 Rp21.500
12 DISCONTINUE
SUB: 37174M66R00-000		 ANTENNA ASSY, KLS DOOR 2 - 5MT:GX
13 37175M68P10-000 ANTENNA ASSY, KLS BACK DOOR 1 Rp260.000 5MT:GX
14 37175M68P20-000 ANTENNA ASSY, KLS LUGGAGE 1 Rp278.500 5MT:GX
15 37175M68P10-000 ANTENNA ASSY,KLS INSIDE 1 Rp260.000 5MT:GX
16 38590-72M00-000 BUZZER ASSY, KLS 1 Rp441.500 5MT:GX
17 09250-16015-000
SUB: 09250B16015N000		 CAP,BACK DOOR PANEL 1 Rp3.500 5MT:GL
18 09250-16015-000
SUB: 09250B16015N000		 CAP,BACK DOOR PANEL 1 Rp3.500 5AGS:GX

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
