IGNIS

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL ENGINE ELECTRICALSTARTING MOTORGENERATORBATTERYSPEEDOMETERHEAD LAMP (W/HALOGEN)HEAD LAMP (W/LED)FRONT FOG LAMP (W/FRONT FOG LAMP)REAR LAMPROOM LAMPWIRING HARNESSELECTRICAL CONTROL BODYELECTRICAL CONTROL INSTRUMENTAL PANELLOCK SET (5MT:GL;5AGS:GX)LOCK SET (5MT:GX)FRONT WINDOW WIPERWINDOW WASHERREAR WINDOW WIPERAUDIO

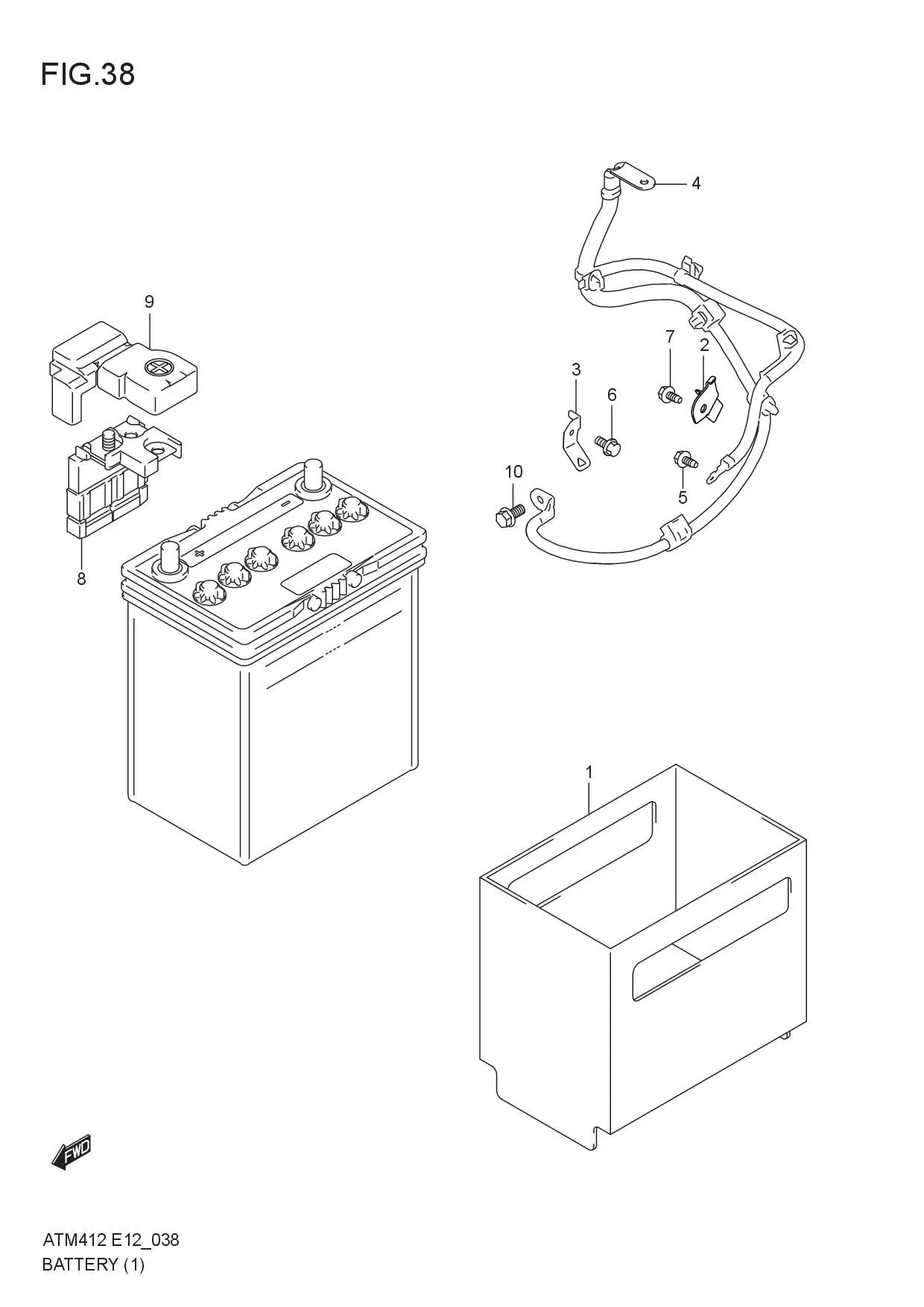

BATTERY

BATTERY
No No. Part Description Qty Price Per Pcs Remarks
1 33690M60M00-000 COVER, BATTERY 1 Rp43.500
2 33801M62R00-000 BRACKET, BTRY GND 1 Rp42.000
3 33801M68P00-000 BRACKET, BTRY GND 1 Rp6.500
4 33850M66R00-000 CABLE, BTRY GND 1 Rp675.500
5 09115-06005-000 BOLT (6X16) 1 Rp14.000
6 DISCONTINUE
SUB: 01550B0612AN000		 BOLT 1 -
7 DISCONTINUE
SUB: 01550B0612AN000		 BOLT 1 -
8 36739M66R00-000 FUSE, BATTERY 1 Rp338.500
9 36694-68K10-000 COVER, BTRY TERMINAL 1 Rp98.000
10 01550-0816A-000
SUB: 01550B0816AN000		 BOLT,BTRY GND T/M 1 Rp6.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
