IGNIS

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL ENGINE ELECTRICALSTARTING MOTORGENERATORBATTERYSPEEDOMETERHEAD LAMP (W/HALOGEN)HEAD LAMP (W/LED)FRONT FOG LAMP (W/FRONT FOG LAMP)REAR LAMPROOM LAMPWIRING HARNESSELECTRICAL CONTROL BODYELECTRICAL CONTROL INSTRUMENTAL PANELLOCK SET (5MT:GL;5AGS:GX)LOCK SET (5MT:GX)FRONT WINDOW WIPERWINDOW WASHERREAR WINDOW WIPERAUDIO

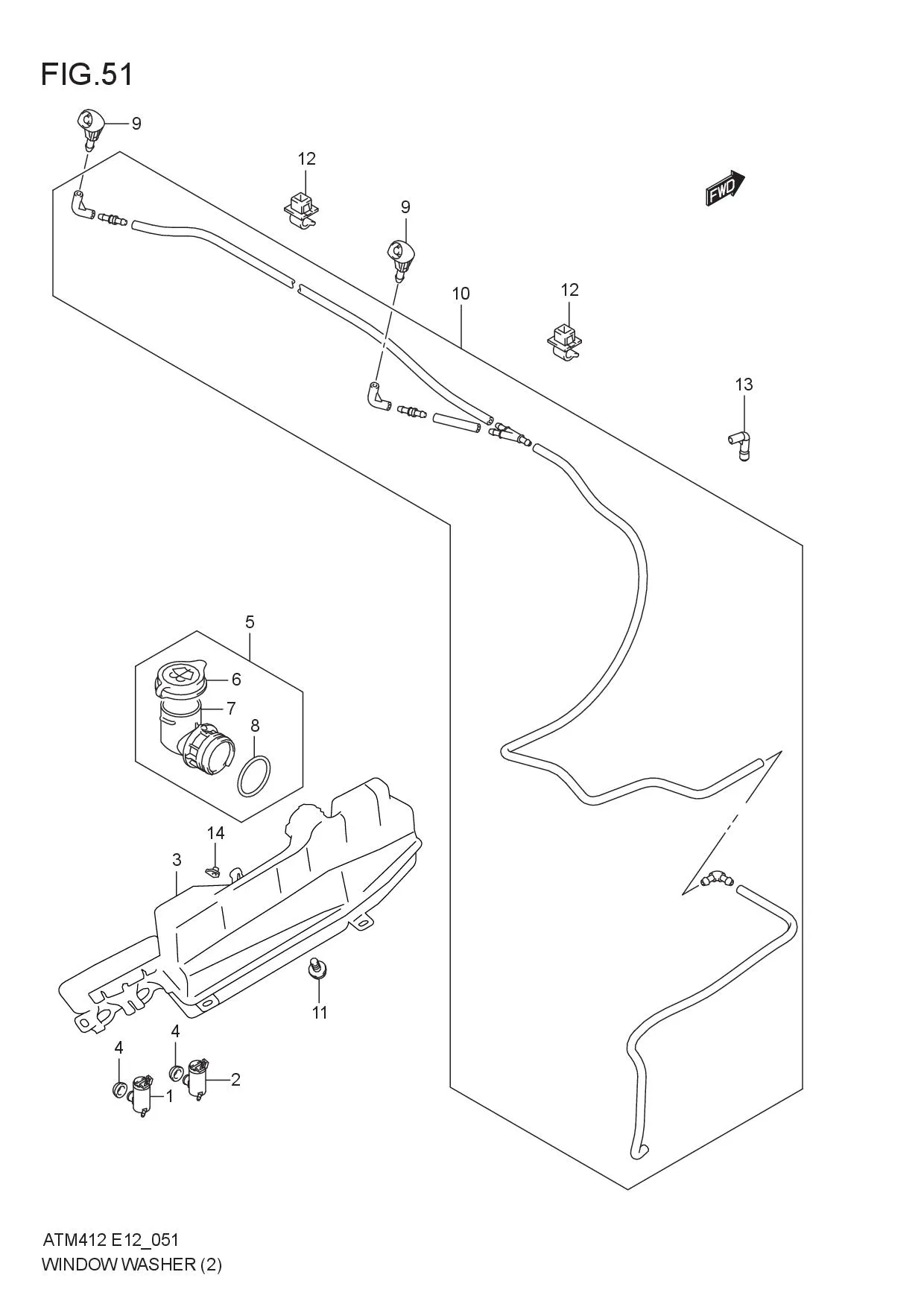

WINDOW WASHER

WINDOW WASHER
No No. Part Description Qty Price Per Pcs Remarks
1 38410M65M00-000 PUMP ASSY, WASHER TANK FR 1 Rp159.500
2 38410M65M10-000 PUMP ASSY, WASHER TANK RR 1 Rp163.000
3 38450M66R10-000 TANK ASSY, WASHER 1 Rp93.500
4 38453M75000-000 GROMMET 2 Rp4.500
5 38402M66R00-000 INLET SET,WASHER 1 Rp25.000
6 38452M66R00-000 •CAP, WASHER TANK 1 Rp5.500
7 38453M66R00-000 •INLET 1 Rp14.000
8 38454M65L00-000 •O-RING 1 Rp7.000
9 38480M66R00-000 NOZZLE, WASHER 2 Rp24.000
10 38832M66R00-000 HOSE ASSY,FR WASHER 1 Rp111.000
11 DISCONTINUE
SUB: 09122-86002-000		 BOLT,WASHER TANK 3 -
12 09403M07328-000 CLAMP,WASHER HOSE 2 Rp6.500
13 38491M65M00-000 JOINT, ELBOW 1 Rp6.000
14 38471M65L00-000 NUT 2 Rp9.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
