  3. IGNIS
  4. Electrical
  5. HEAD LAMP (W/HALOGEN)

IGNIS

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL ENGINE ELECTRICALSTARTING MOTORGENERATORBATTERYSPEEDOMETERHEAD LAMP (W/HALOGEN)HEAD LAMP (W/LED)FRONT FOG LAMP (W/FRONT FOG LAMP)REAR LAMPROOM LAMPWIRING HARNESSELECTRICAL CONTROL BODYELECTRICAL CONTROL INSTRUMENTAL PANELLOCK SET (5MT:GL;5AGS:GX)LOCK SET (5MT:GX)FRONT WINDOW WIPERWINDOW WASHERREAR WINDOW WIPERAUDIO

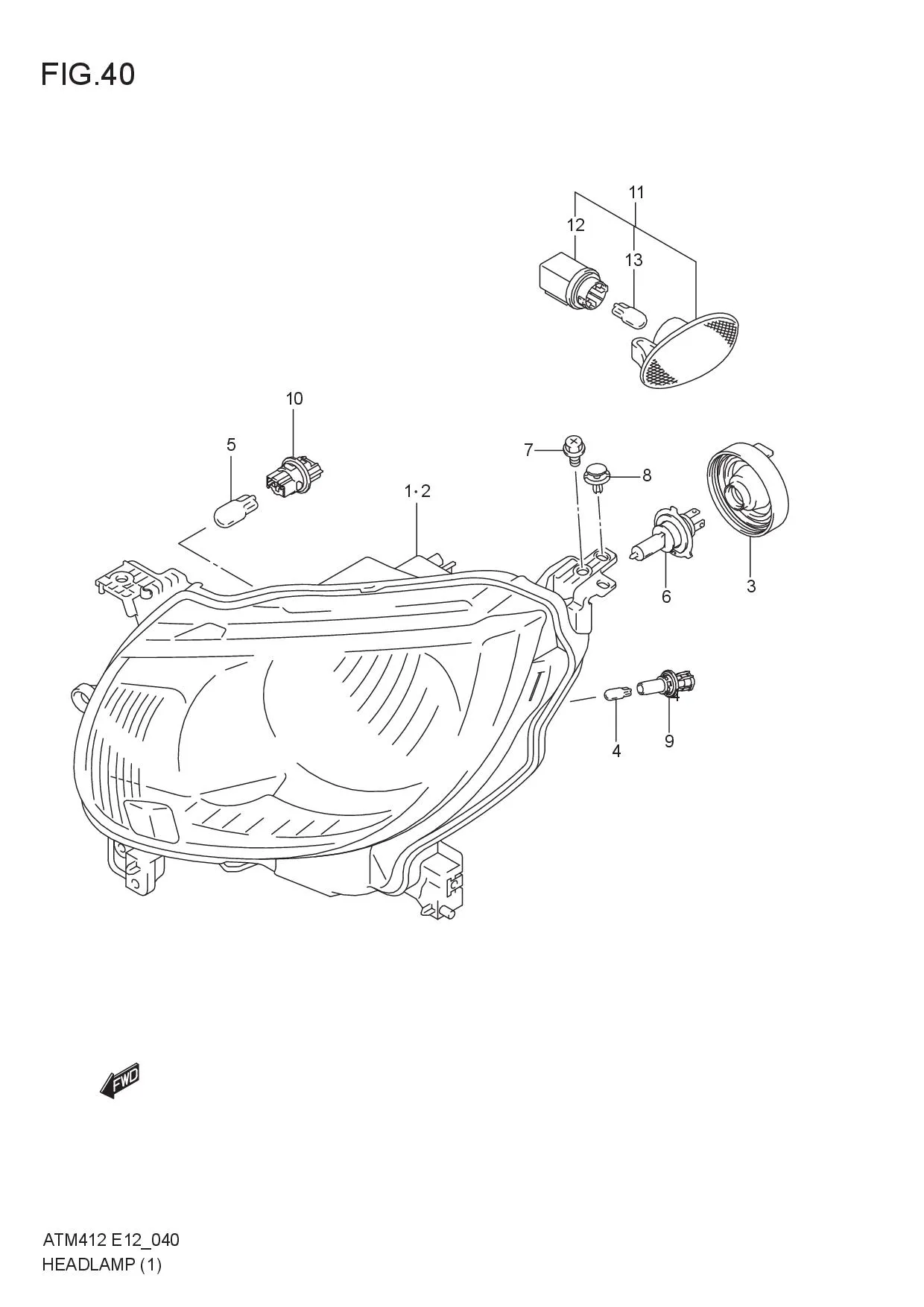

HEAD LAMP (W/HALOGEN)

HEAD LAMP (W/HALOGEN)
No No. Part Description Qty Price Per Pcs Remarks
1 DISCONTINUE
SUB: 35121M66R30-000		 UNIT, HEAD LAMP RH 1 -
2 DISCONTINUE
SUB: 35321M66R30-000		 UNIT, HEAD LAMP LH 1 -
3 35179-64G00-000
SUB: 35179B64G00N000		 SOKET COVER 1 Rp27.500
4 09471-12216-000
SUB: 09471B12216N000		 BULB(12V5W) 1 Rp15.000
5 09471-12202-000 BULB(12V21W,WY21W) 1 Rp78.000
6 09471M12090-000 BULB(12V60/55W,H4) 1 Rp42.500
7 35181-71L00-000 SCREW, HEADLAMP 8 Rp22.500
8 09409M08006-000
SUB: 09409M08L01-000		 CLIP, HEADLAMP 2 Rp5.000
9 35118M81P00-000 SOCKET 1 Rp24.000
10 35118-75H20-000 SOCKET 1 Rp91.500
11 36410M67K00-000 LAMP ASSY,SIDE TURN SIG 2 Rp72.000
12 36422M67K00-000 •SOCKET, BULB 2 Rp24.500
13 09471M12396-000 •BULB(12V5W) 2 Rp28.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
