  5. FIG.240A KICK STARTER (GSX-S150MFL7 P12/GSX-S150MFXL7 P12)

GSXR-150

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.102A CYLINDER HEAD COVERFIG.103A CYLINDER HEADFIG.107A CYLINDERFIG.108A CRANKCASEFIG.112A CRANKCASE COVER (GSX-S150MFL7 P12/GSX-S150MFXL7 P12)FIG.112B CRANKCASE COVER (GSX-R150RFL7 P12/GSX-R150RFXL7 P12)FIG.120A CRANKSHAFTFIG.122A STARTER CLUTCHFIG.124A CRANK BALANCERFIG.126A CAMSHAFT/VALVEFIG.127A CAM CHAINFIG.140A THROTTLE BODYFIG.155A AIR CLEANERFIG.163A MUFFLERFIG.170A OIL PUMPFIG.172A FUEL PUMPFIG.180A WATER PUMPFIG.185A RADIATORFIG.187A RADIATOR HOSE (GSX-S150MFL7 P12/GSX-S150MFXL7 P12)FIG.187B RADIATOR HOSE (GSX-R150RFL7 P12/GSX-R150RFXL7 P12)FIG.201A CLUTCHFIG.206A TRANSMISSIONFIG.212A GEAR SHIFTING (GSX-S150MFL7 P12/GSX-S150MFXL7 P12)FIG.212B GEAR SHIFTING (GSX-R150RFL7 P12/GSX-R150RFXL7 P12)FIG.240A KICK STARTER (GSX-S150MFL7 P12/GSX-S150MFXL7 P12)

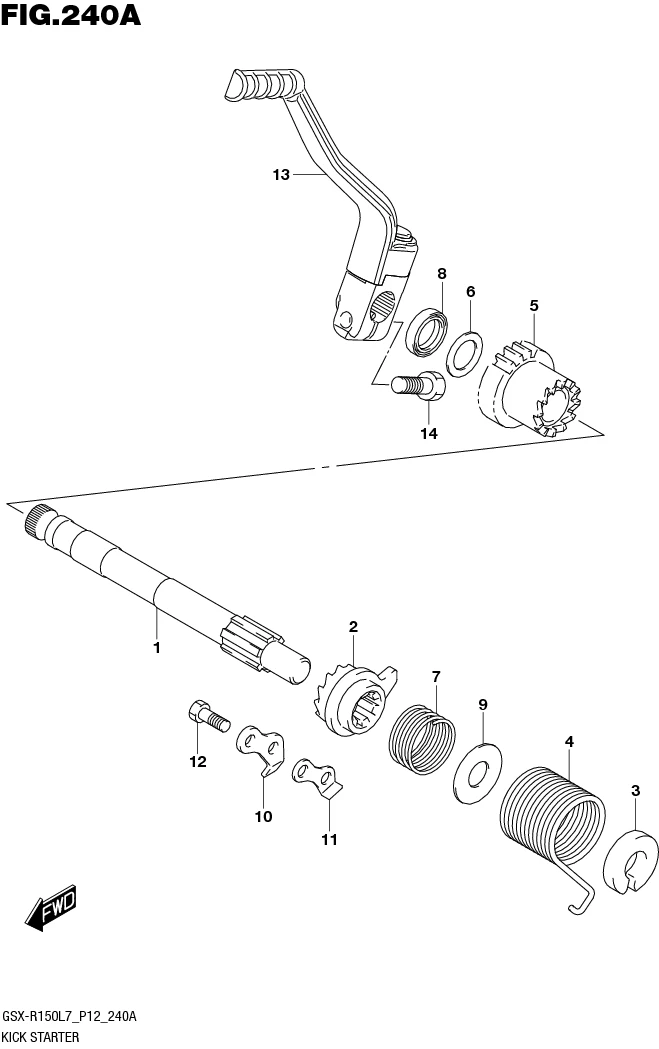

FIG.240A KICK STARTER (GSX-S150MFL7 P12/GSX-S150MFXL7 P12)

FIG.240A KICK STARTER (GSX-S150MFL7 P12/GSX-S150MFXL7 P12)
No No. Part Description Qty Price Per Pcs Remarks
1 26211-12K00-000 SHAFT, KICK STARTER 1 Rp67.500
2 26231-09430-000
SUB: 26231B09430N000		 STARTER, KICK 1 Rp61.500
3 DISCONTINUE
SUB: 26221B30A00N000		 GUIDE, SPRING 1 -
4 09448-38004-000
SUB: 09448B38004N000		 SPRING 1 Rp21.000
5 26241-12K00-000 GEAR, DRIVE (NT:21) 1 Rp160.000
6 08211-16241-000
SUB: 08211B16241N000		 WASHER 1 Rp4.500
7 09440-30007-000
SUB: 09440B30007N000		 SPRING 1 Rp3.000
8 09283-16008-000
SUB: 09283B16008N000		 OIL SEAL (16X24X5) 1 Rp9.500
9 08211-14321-000
SUB: 08211B14321N000		 WASHER 1 Rp10.500
10 26232-09410-000
SUB: 26232B09410N000		 GUIDE, KICK STARTER 1 Rp6.500
11 26233-09400-000
SUB: 26233B09400N000		 STOPPER, KICK STARTER 1 Rp3.000
12 01500-0616A-000
SUB: 01500B0616AN000		 BOLT 2 Rp6.500
13 26300-23K10-000
SUB: 26300-23K00-000		 LEVER ASSY, KICK STARTER 1 Rp116.000
14 01500-0825B-000
SUB: 01500B0825BN000		 BOLT 1 Rp3.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
