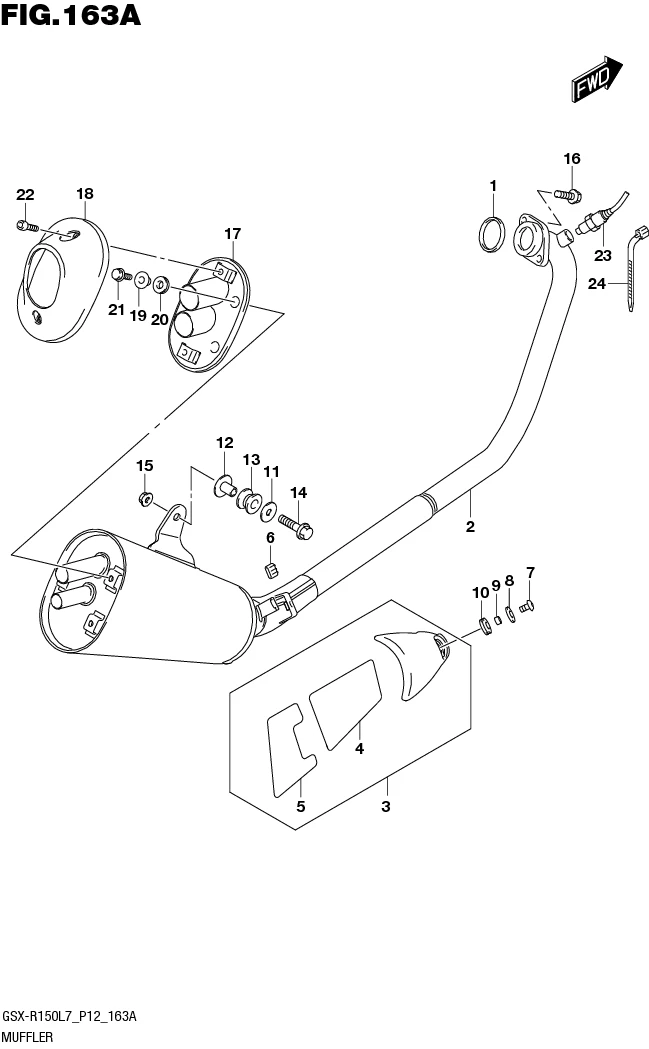

FIG.163A MUFFLER

FIG.163A MUFFLER
No No. Part Description Qty Price Per Pcs Remarks
1 14181-47E20-000
SUB: 14181B47E20N000		 GASKET, EXHAUST PIPE 1 Rp9.000
2 14310-23K00-000 BODY, MUFFLER 1 Rp1.900.000
3 14780-23K00-000 COVER, MUFFLER 1 Rp121.000
4 14783-23K00-000 _SHIELD, MUF COVER FR 1 Rp5.500
5 14784-23K00-000 _SHIELD, MUF COVER RR 1 Rp5.500
6 14795-10FA0-000
SUB: 14795B10FA0N000		 GROMMET 1 Rp5.500
7 09139-06027-000 SCREW (6X12) 1 Rp17.500
8 09160-06028-000 WASHER (65X18X1) 1 Rp3.500
9 09180-06343-000
SUB: 09180B06343N000		 SPACER 1 Rp12.500
10 09320-08082-000
SUB: 09320B08082N000		 CUSHION 1 Rp10.500
11 09160-08134-000
SUB: 09160B08134N000		 WASHER (85X26X16) 1 Rp7.500
12 09180-08151-000
SUB: 09180B08151N000		 SPACER (86X12X175) 1 Rp22.000
13 09320-12032-000
SUB: 09320B12032N000		 CUSHION 1 Rp5.000
14 01550-0835A-000 BOLT 1 Rp3.500
15 08319-3108A-000
SUB: 08319B3108AN000		 NUT 1 Rp4.000
16 01550-0825A-000 BOLT 2 Rp3.500
17 14760-23K00-000 STAY, MUFFLER REAR COVER 1 Rp140.000
18 14790-23K01-000
SUB: 14790-23K00-000		 COVER, MUFFLER REAR 1 Rp79.500
19 09169-06091-000
SUB: 09169B06057N000		 WASHER 3 Rp4.500
20 09320-08082-000
SUB: 09320B08082N000		 CUSHION 3 Rp10.500
21 01550B0612BN000 BOLT 3 Rp2.500
22 07130-0616A-000
SUB: 07130B0616AN000		 BOLT 2 Rp3.500
23 18213-12K01-000
SUB: 18213-12K00-000		 SENSOR, OXYGEN 1 Rp326.000
24 36990-25G00-000 CLAMP 1 Rp13.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
