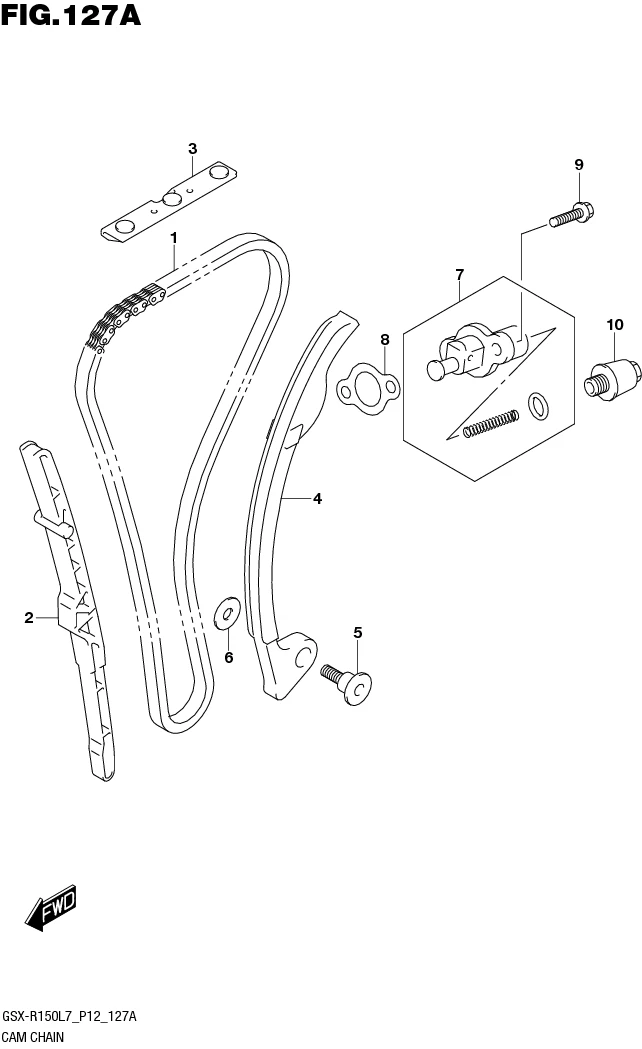

FIG.127A CAM CHAIN

FIG.127A CAM CHAIN
No No. Part Description Qty Price Per Pcs Remarks
1 12760-12K00-000 CHAIN, CAM SHAFT DRIVE 1 Rp101.000
2 12771-12K00-000 GUIDE, CAM CHAIN NO1 1 Rp14.500
3 12782-12K01-000 GUIDE, CAM CHAIN NO2 1 Rp18.500
4 12811-12K00-000 TENSIONER, CAM CHAIN 1 Rp53.500
5 12812-35C00-000
SUB: 12812B35C00N000		 BOLT, CAM CHAIN TENSIONER 1 Rp4.000
6 08211-06181-000
SUB: 08211B06181N000		 WASHER 1 Rp9.500
7 12830-12K00-000 ADJUSTER SET, TENSIONER 1 Rp118.000
8 12837-12K00-000 GASKET, TENSIONER ADJUSTER 1 Rp4.500
9 01547-0620B-000
SUB: 01547B0620AN000		 BOLT 2 Rp6.500
10 12836-12K01-000
SUB: 12836-12K00-000		 BOLT, ADJUSTER SPRING 1 Rp12.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
