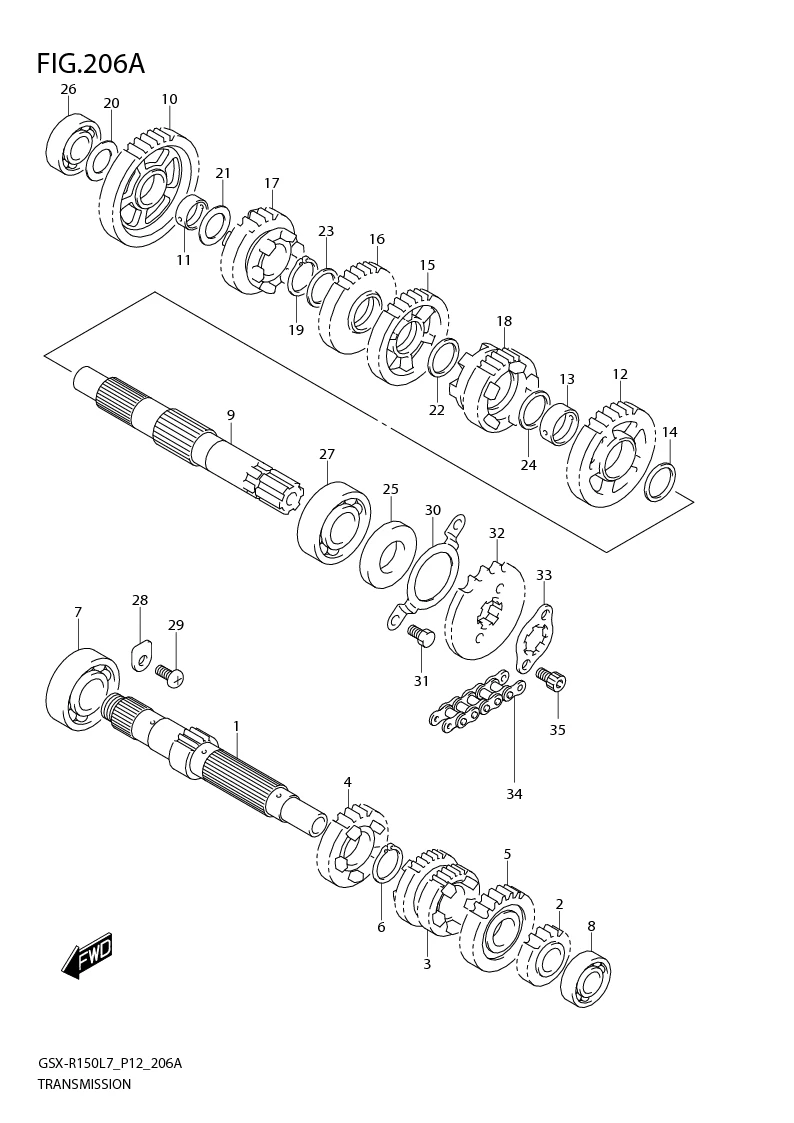

FIG.206A TRANSMISSION

FIG.206A TRANSMISSION
No No. Part Description Qty Price Per Pcs Remarks
1 24121-12K10-000 COUNTERSHAFT (NT:13) 1 Rp185.000
2 24221-12K10-000 GEAR, 2ND DRIVE (NT:15) 1 Rp66.500
3 24231-12K10-000 GEAR, 3RD/4TH (NT:21/23) 1 Rp130.500
4 24251-12K10-000 GEAR, 5TH DRIVE (NT:22) 1 Rp85.000
5 24261-12K10-000 GEAR, 6TH DRIVE (NT:27) 1 Rp90.000
6 09380-20009-000
SUB: 09380B20019N000		 CIRCLIP 1 Rp10.000
7 08110-62040-000
SUB: 08110B62040N000		 BEARING RH 1 Rp43.000 RH
8 08120-60020-000 BEARING LH 1 Rp22.500 LH
9 24131-12K30-000 SHAFT, DRIVE 1 Rp174.000
10 24311-12K10-000 GEAR, 1ST DRIVEN (NT:38) 1 Rp105.500
11 24312-12K00-000 BUSH, 1ST DRIVEN GEAR 1 Rp33.000
12 24321-12K10-000 GEAR, 2ND DRIVEN (NT:29) 1 Rp93.000
13 24322-12K00-000 BUSH, 2ND DRIVEN GEAR 1 Rp5.500
14 24323-12K00-000 WASHER, 2ND DRIVEN GEAR LH 1 Rp9.500
15 24331-12K10-000 GEAR, 3RD DRIVEN (NT:31) 1 Rp98.000
16 24341-12K10-000 GEAR, 4TH DRIVEN (NT:28) 1 Rp99.000
17 24351-12K10-000 GEAR, 5TH DRIVEN (NT:23) 1 Rp113.500
18 24361-12K10-000 GEAR, 6TH DRIVEN (NT:25) 1 Rp103.500
19 09380-20009-000
SUB: 09380B20019N000		 CIRCLIP 1 Rp10.000
20 08211-15251-000
SUB: 08211B15251N000		 WASHER 1 Rp4.500
21 08211-16251-000 WASHER 1 Rp5.500
22 08211-20241-000 WASHER 1 Rp5.000
23 08211-20241-000 WASHER 1 Rp5.000
24 08211-20261-000 WASHER, THRUST 1 Rp8.500
25 24399-12K00-000 SEAL, DRIVE SHAFT OIL 1 Rp11.500
26 08110-62020-000 BEARING 1 Rp52.000
27 08120-62040-000 BEARING 1 Rp45.000
28 24741-20A10-000
SUB: 24741B20A10N000		 RETAINER, CNTR SHAFT BEARING 1 Rp3.500
29 02112-0612A-000 SCREW 1 Rp3.500
30 24751-05210-000
SUB: 24751B05210N000		 RETAINER, DRIVE SHAFT OIL SEAL 1 Rp8.500
31 01500-0610A-000
SUB: 01500B0610AN000		 BOLT 2 Rp6.500
32 27511-23K10-000
SUB: 27511-23K00-000		 SPROCKET, ENGINE (NT:15) 1 Rp48.000
33 27512-25G00-000 PLATE, ENGINE SPROCKET 1 Rp8.500
34 27600-12K20-122
SUB: 27600-12K00-122		 CHAIN ASSY (RK 428KL0) 1 Rp332.500
35 07130-0610A-000
SUB: 07130B0610AN000		 BOLT 2 Rp5.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
