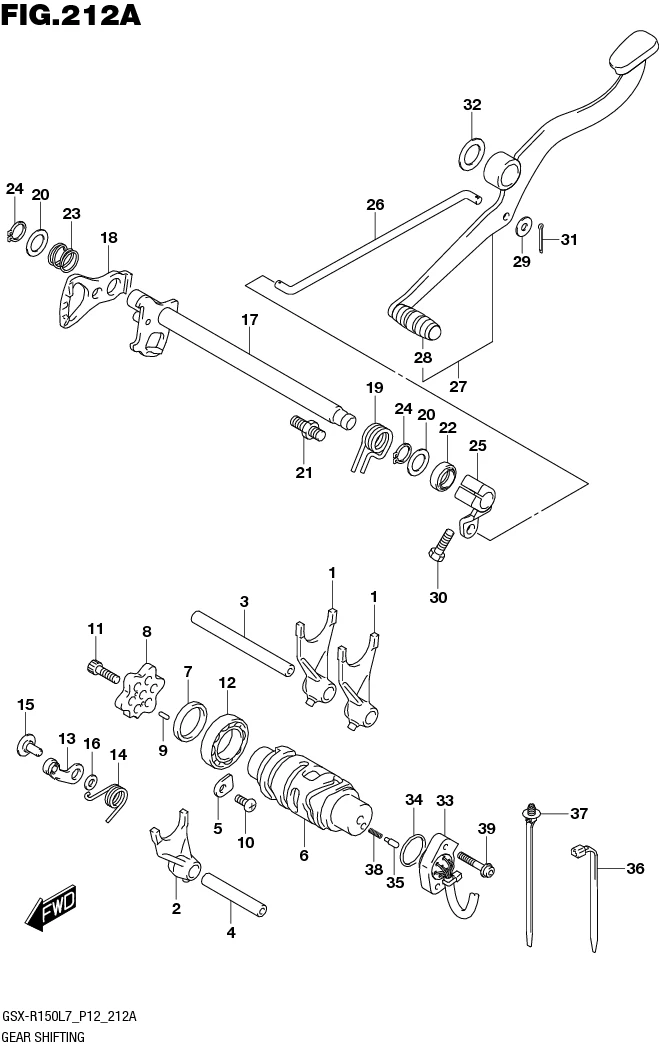

| 1 |
25211-12K00-000 |
FORK, GEAR SHIFTING NO1 |
2 |
Rp45.500 |
| |
| 2 |
25231-12K00-000 |
FORK, GEAR SHIFTING NO3 |
1 |
Rp45.500 |
| |
| 3 |
25411-25G10-000
SUB: 25411B25G10N000 |
SHAFT, GEAR SHIFTING NO1 |
1 |
Rp74.500 |
| |
| 4 |
25421-25G10-000
SUB: 25421B25G10N000 |
SHAFT, GEAR SHIFTING NO2 |
1 |
Rp73.500 |
| |
| 5 |
24741-20A10-000
SUB: 24741B20A10N000 |
RETAINER |
1 |
Rp3.500 |
| |
| 6 |
25311-12K00-000 |
CAM, GEAR SHIFTING |
1 |
Rp109.500 |
| |
| 7 |
25312-12K00-000 |
SPACER, GEAR SHIFT CAM BRG |
1 |
Rp12.000 |
| |
| 8 |
25381-12K00-000 |
PLATE, GEAR SHIFT CAM |
1 |
Rp38.500 |
| |
| 9 |
09261-03002-000
SUB: 09261B03002N000 |
PIN (3X98) |
2 |
Rp2.500 |
| |
| 10 |
02112-0612A-000 |
SCREW |
1 |
Rp3.500 |
| |
| 11 |
07130-0620A-000 |
BOLT |
1 |
Rp16.500 |
| |
| 12 |
08110-69050-000
SUB: 08110B69050N000 |
BEARING |
1 |
Rp53.000 |
| |
| 13 |
25350-26D01-000
SUB: 25350B26D01N000 |
STOPPER, CAM |
1 |
Rp17.000 |
| |
| 14 |
25355-12K00-000 |
SPRING, STOPPER |
1 |
Rp4.500 |
| |
| 15 |
25357-22J00-000
SUB: 25357B22J00N000 |
BOLT, SHIFT CAM STOPPER |
1 |
Rp4.000 |
| |
| 16 |
08211-06121-000
SUB: 08211B06121N000 |
WASHER |
1 |
Rp7.500 |
| |
| 17 |
25510-12K11-000
SUB: 25510-12K00-000 |
SHAFT, GEAR SHIFTING |
1 |
Rp64.500 |
| |
| 18 |
25512-12K01-000
SUB: 25512-12K00-000 |
PLATE, GEAR SHIFT CAM |
1 |
Rp47.500 |
| |
| 19 |
25518-12K00-000 |
SPRING, SHIFT SHAFT RETURN |
1 |
Rp6.500 |
| |
| 20 |
25519-25G00-000
SUB: 25519B25G00N000 |
WASHER (14X22X1) |
2 |
Rp4.500 |
| |
| 21 |
25671-22J10-000 |
STOPPER, GEAR SHIFT |
1 |
Rp9.000 |
| |
| 22 |
09283-14014-000
SUB: 09283B14014N000 |
SEAL (14X22X6) |
1 |
Rp9.000 |
| |
| 23 |
09440-17013-000
SUB: 09440B17013N000 |
SPRING |
1 |
Rp3.000 |
| |
| 24 |
08331-31149-000
SUB: 08331B31149N000 |
CIRCLIP |
2 |
Rp7.500 |
| |
| 25 |
25520-23K00-000 |
ARM, GEAR SHIFT LINK |
1 |
Rp30.000 |
| |
| 26 |
25525-23K00-000 |
ROD, GEAR SHIFT LINK |
1 |
Rp12.500 |
| |
| 27 |
25600-23K00-000 |
LEVER ASSY, GEAR SHIFTING |
1 |
Rp44.500 |
| |
| 28 |
25652-16H11-000
SUB: 25652B16H10N000 |
_RUBBER, PEDAL |
1 |
Rp3.500 |
| |
| 29 |
25617-30H00-000 |
WASHER, GEAR SHIFT LINK ROD |
2 |
Rp3.500 |
| |
| 30 |
01500-0620A-000
SUB: 01500B0620AN000 |
BOLT |
1 |
Rp4.500 |
| |
| 31 |
04111-2015A-000 |
PIN |
2 |
Rp4.500 |
| |
| 32 |
09160-18043-000 |
WASHER (18X24X1) |
1 |
Rp4.500 |
| |
| 33 |
37720-12K12-000
SUB: 37720-12K10-000 |
BASE ASSY, GEAR SHIFT TERM |
1 |
Rp214.000 |
| |
| 34 |
37722-25G00-000
SUB: 37722B25G00N000 |
O RING (D:24,ID:262) |
1 |
Rp7.500 |
| |
| 35 |
09209-05011-000
SUB: 09209B05011N000 |
PIN (5X155) |
2 |
Rp5.500 |
| |
| 36 |
36990-25G20-000 |
CLAMP, GEAR SHIFT SW LEAD |
1 |
Rp9.500 |
| |
| 37 |
09407-17403-000 |
CLAMP (L:154) |
2 |
Rp3.500 |
| |
| 38 |
09440-04010-000
SUB: 09440B04010N000 |
SPRING |
2 |
Rp3.000 |
| |
| 39 |
07130-0520A-000
SUB: 07130B0520AN000 |
BOLT |
2 |
Rp5.500 |
| |
