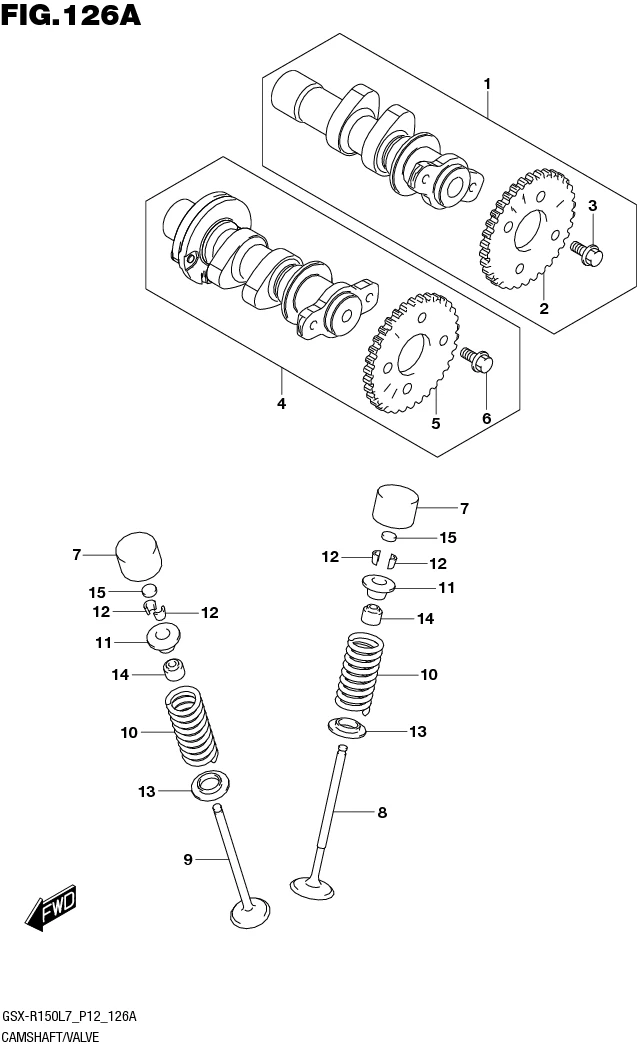

FIG.126A CAMSHAFT/VALVE

FIG.126A CAMSHAFT/VALVE
No No. Part Description Qty Price Per Pcs Remarks
1 12710-12K11-000
SUB: 12710-12K10-000		 CAM SHAFT, INTAKE 1 Rp468.500
2 12741-12K00-000 _SPROCKET, CAMSHAFT (NT:34) 1 Rp32.500
3 09103-05025-000 _BOLT 2 Rp4.500
4 12702-12K10-000 CAM SHAFT, EXHAUST 1 Rp481.500
5 12741-12K00-000 _SPROCKET, CAMSHAFT (NT:34) 1 Rp32.500
6 09103-05025-000 _BOLT 2 Rp4.500
7 12891-25G10-000
SUB: 12891B25G10N000		 TAPPET 4 Rp38.500
8 12911-12K00-000 VALVE, INTAKE 2 Rp37.500
9 12912-12K00-000 VALVE, EXHAUST 2 Rp39.500
10 12921-12K00-000 SPRING, VALVE 4 Rp27.500
11 12931-25G20-000 RETAINER, VALVE SPRING 4 Rp9.500
12-1 12932-32C00-000 COTTER, VALVE 8 Rp12.500
12-2 12932-32C10-000 COTTER, VALVE 8 Rp8.500
13 12933-12K00-000 SEAT, VALVE SPRING 4 Rp5.500
14 09289-04002-000
SUB: 09289B04002N000		 OIL SEAL (45X10X8) 4 Rp10.500
15-21 12892-05C00-220 SHIM, TAPPET (T:220) 4 Rp53.500
15-20 12892-05C00-215 SHIM, TAPPET (T:215) 4 Rp56.000
15-19 12892-05C00-210 SHIM, TAPPET (T:210) 4 Rp55.000
15-18 12892-05C00-205 SHIM, TAPPET (T:205) 4 Rp56.000
15-5 12892-05C00-140 SHIM, TAPPET (T:140) 4 Rp56.500
15-17 12892-05C00-200 SHIM, TAPPET (T:200) 4 Rp55.000
15-16 12892-05C00-195 SHIM, TAPPET (T:195) 4 Rp56.000
15-15 12892-05C00-190 SHIM, TAPPET (T:190) 4 Rp56.000
15-14 12892-05C00-185 SHIM, TAPPET (T:185) 4 Rp56.000
15-13 12892-05C00-180 SHIM, TAPPET (T:180) 4 Rp54.000
15-12 12892-05C00-175 SHIM, TAPPET (T:175) 4 Rp53.000
15-11 12892-05C00-170 SHIM, TAPPET (T:170) 4 Rp56.000
15-10 12892-05C00-165 SHIM, TAPPET (T:165) 4 Rp54.500
15-9 12892-05C00-160 SHIM, TAPPET (T:160) 4 Rp53.500
15-8 12892-05C00-155 SHIM, TAPPET (T:155) 4 Rp56.000
15-7 12892-05C00-150 SHIM, TAPPET (T:150) 4 Rp54.500
15-6 12892-05C00-145 SHIM, TAPPET (T:145) 4 Rp57.500
15-4 12892-05C00-135 SHIM, TAPPET (T:135) 4 Rp57.500
15-3 12892-05C00-130 SHIM, TAPPET (T:130) 4 Rp57.500
15-2 12892-05C00-125 SHIM, TAPPET (T:125) 4 Rp57.500
15-1 12892-05C00-120 SHIM, TAPPET (T:120) 4 Rp57.500
16 12800-05830-000 SHIM SET, TAPPET (OPT) 1 Rp7.383.500 OPT
17 DISCONTINUE
SUB: 99000-69491-000		 _CASE, TAPPET SHIM (OPT) 1 - OPT

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
