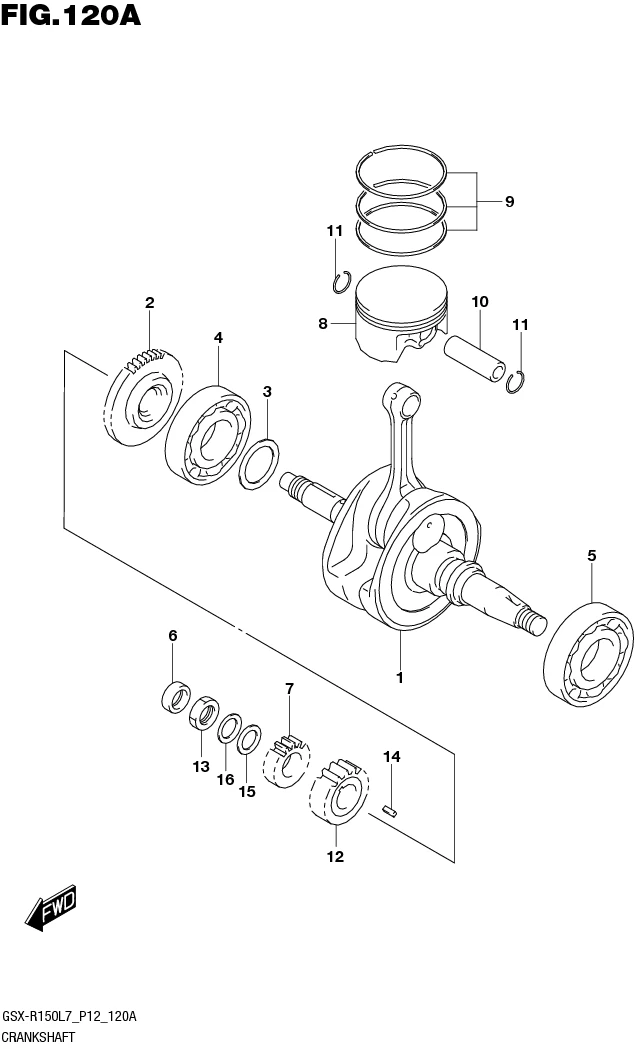

FIG.120A CRANKSHAFT

FIG.120A CRANKSHAFT
No No. Part Description Qty Price Per Pcs Remarks
1 12200-12K31-000
SUB: 12200-12K30-000		 CRANKSHAFT ASSY 1 Rp996.500
2 12661-12K00-000 GEAR, CRANK BALANCER DRIVE(NT:44) 1 Rp129.500
3-15 12228-12K00-0R0 SHIM (T:13) 1 Rp10.500
3-17 12228-12K00-0T0 SHIM (T:14) 1 Rp11.500
3-16 12228-12K00-0S0 SHIM (T:135) 1 Rp10.500
3-14 12228-12K00-0P0 SHIM (T:125) 1 Rp10.500
3-13 12228-12K00-0N0 SHIM (T:12) 1 Rp10.500
3-12 12228-12K00-0M0 SHIM (T:115) 1 Rp10.500
3-11 12228-12K00-0L0 SHIM (T:11) 1 Rp10.500
3-10 12228-12K00-0K0 SHIM (T:105) 1 Rp10.500
3-8 12228-12K00-0H0 SHIM (T:095) 1 Rp10.500
3-7 12228-12K00-0G0 SHIM (T:09) 1 Rp10.500
3-6 12228-12K00-0F0 SHIM (T:085) 1 Rp10.500
3-5 12228-12K00-0E0 SHIM (T:08) 1 Rp10.500
3-4 12228-12K00-0D0 SHIM (T:075) 1 Rp10.500
3-3 12228-12K00-0C0 SHIM (T:07) 1 Rp10.500
3-2 12228-12K00-0B0 SHIM (T:065) 1 Rp10.500
3-1 12228-12K00-0A0 SHIM (T:06) 1 Rp10.500
3-9 12228-12K00-0J0 SHIM (T:10) 1 Rp10.500
4 09262-28058-000 BEARING RH 1 Rp78.000 RH
5 09262-35103-000 BEARING LH 1 Rp85.000 LH
6 09282-12L01-000
SUB: 09282B12L01N000		 OIL SEAL (12X21X7) 1 Rp15.500
7 16321-12K00-000 GEAR, OIL PUMP DRIVE (NT:15) 1 Rp57.000
8 12111-12K00-0F0 PISTON 1 Rp98.000
9 12140-12K00-000 RING SET, PISTON 1 Rp68.500
10 12151-12K00-000 PIN, PISTON 1 Rp13.500
11 09381-15001-000 CIRCLIP 2 Rp10.500
12-1 21111-12K00-0A0 GEAR, PRIMARY DRIVE (NT:21)GREEN 1 Rp117.000 GREEN
12-2 21111-12K00-0B0 GEAR, PRIMARY DRIVE (NT:21)PINK 1 Rp121.500 PINK
13 09140-16019-000
SUB: 09140B16019N000		 NUT 1 Rp11.000
14 09421-04011-000 KEY 1 Rp7.500
15 08211-16251-000 WASHER 1 Rp5.500
16 09164-16005-000
SUB: 09164B16005N000		 WASHER 1 Rp14.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
