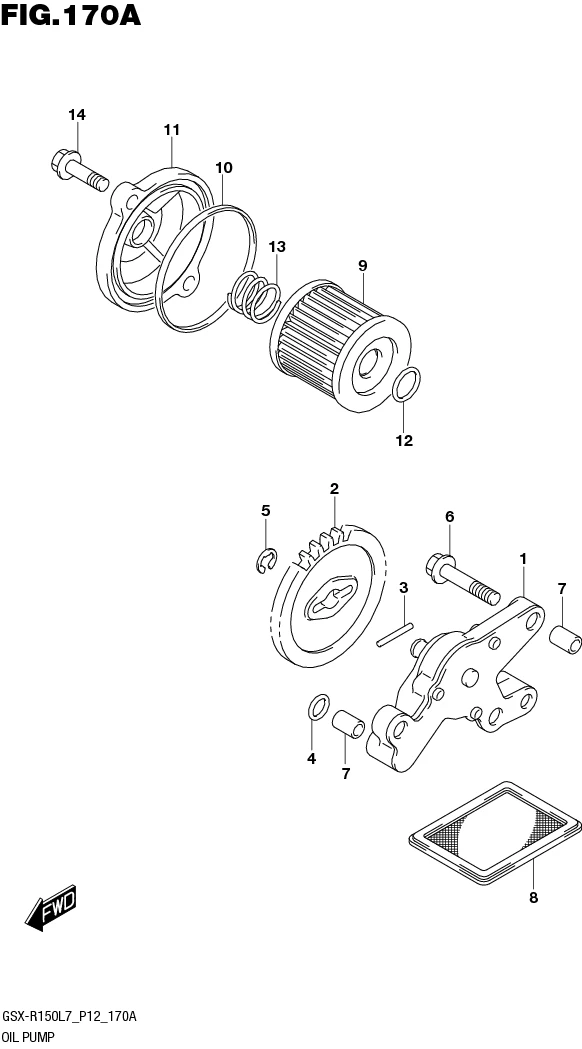

FIG.170A OIL PUMP

FIG.170A OIL PUMP
No No. Part Description Qty Price Per Pcs Remarks
1 16400-12K00-000 PUMP ASSY, ENGINE OIL 1 Rp48.500
2 16331-12K00-000 GEAR, OIL PUMP DRIVEN (NT:30) 1 Rp15.500
3 09261-02001-000 PIN (25X198) 1 Rp9.000
4 09280-08022-000 O RING 1 Rp4.500
5 08332-1106A-000
SUB: 08332B1106AN000		 E RING 1 Rp8.500
6 01547-0630A-000 BOLT 3 Rp6.500
7 09206-08008-000 PIN (63X8X12) 3 Rp4.000
8 16520-45H01-000
SUB: 16520B45H00N000		 STRAINER, ENGINE OIL 1 Rp14.500
9-1 16510-45H10-000
SUB: 16510B45H10N000		 FILTER, ENGINE OIL 1 Rp10.000 NICHIRINDO
9-2 16510-45H20-000
SUB: 16510B45H20N000		 FILTER, ENGINE OIL 1 Rp9.000 SELAMAT
10 09280-54001-000
SUB: 09280B54001N000		 O RING (D:24,ID:526) 1 Rp3.000
11 16512-22J30-000 CAP, OIL FILTER (GOLD) 1 Rp84.500
12 09280-13010-000 O RING (D:19,ID:125) 1 Rp3.000
13 16519-09J00-000 SPRING, OIL FILTER 1 Rp3.000
14 01547-0620B-000
SUB: 01547B0620AN000		 BOLT 2 Rp6.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
