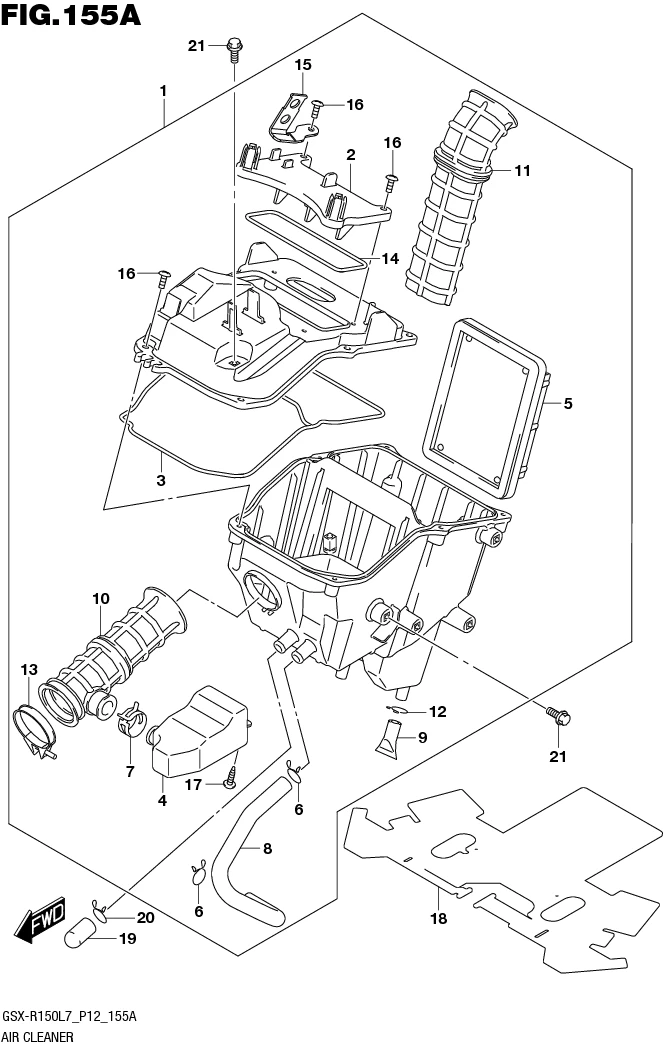

FIG.155A AIR CLEANER

FIG.155A AIR CLEANER
No No. Part Description Qty Price Per Pcs Remarks
1 13700-23K00-000 CLEANER ASSY, AIR 1 Rp378.000
2 13741-23K00-000 _CAP, AIR CLEANER 1 Rp33.500
3 13746-23K00-000 _GASKET 1 Rp18.000
4 13761-23K00-000 _RESONATOR 1 Rp22.000
5 13780-23K00-000 _FILTER ASSY 1 Rp64.500
6 13821-12K00-000 _CLIP 2 Rp4.500
7 13822-12K00-000 _CLIP 1 Rp7.000
8 13853-23K00-000 _TUBE, BREATHER 1 Rp23.000
9 13878-12K00-000 _PLUG, DRAIN 2 Rp6.500
10 13881-23K00-000 _TUBE, OUTLET 1 Rp54.500
11 13891-23K00-000 _TUBE, INLET 1 Rp33.500
12 09401-11101-000 _CLIP 2 Rp14.000
13 09402-44208-000
SUB: 09402B44208N000		 _CLAMP 1 Rp8.000
14 13747-23K00-000 _GASKET, CAP FILTER 1 Rp19.000
15 13911-23K00-000 _BRACKET, RELAY 1 Rp31.500
16 03541-0520B-000
SUB: 03541B0520BN000		 _SCREW 10 Rp3.000
17 03541-0512A-000
SUB: 03541B0512AN000		 _SCREW 1 Rp3.500
18 13841-23K00-000 SHEET, AIR CLEANER INLET 1 Rp41.000
19 13859-23K00-000 PLUG, 2ND AIR NIPPLE 1 Rp7.000
20 09401-14101-000 CLIP, PLUG 1 Rp19.000
21 01550-0612A-000 BOLT 3 Rp3.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
