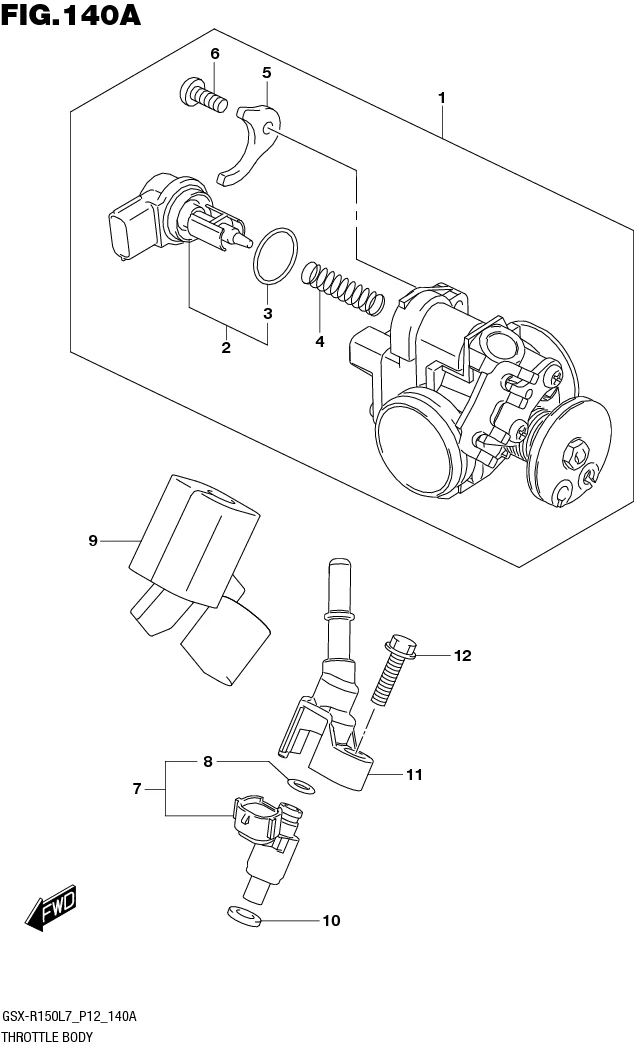

FIG.140A THROTTLE BODY

FIG.140A THROTTLE BODY
No No. Part Description Qty Price Per Pcs Remarks
1 13400-23K00-000 BODY ASSY, THROTTLE 1 Rp616.000
2 18117-09JA0-000 _STEPPING MOTOR 1 Rp262.500
3 13438-09JA0-000 __O RING 1 Rp27.500
4 13417-09JA0-000 _COMPRESSION SPRING 1 Rp9.500
5 13421-42J00-000 _PLATE 1 Rp22.500
6 13602-06128-000 _SCREW 1 Rp9.000
7 15710-23K00-000 INJECTOR ASSY, FUEL 1 Rp1.345.500
8 15716-42J00-000 _O RING 1 Rp75.000
9 15719-12K01-000
SUB: 15719-12K00-000		 COVER, FUEL INJECTOR 1 Rp10.000
10 15722-42J00-000 SEAL 1 Rp5.500
11 15830-23K00-000 JOINT, FUEL HOSE 1 Rp18.500
12 01547-0625A-000 BOLT 1 Rp6.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
