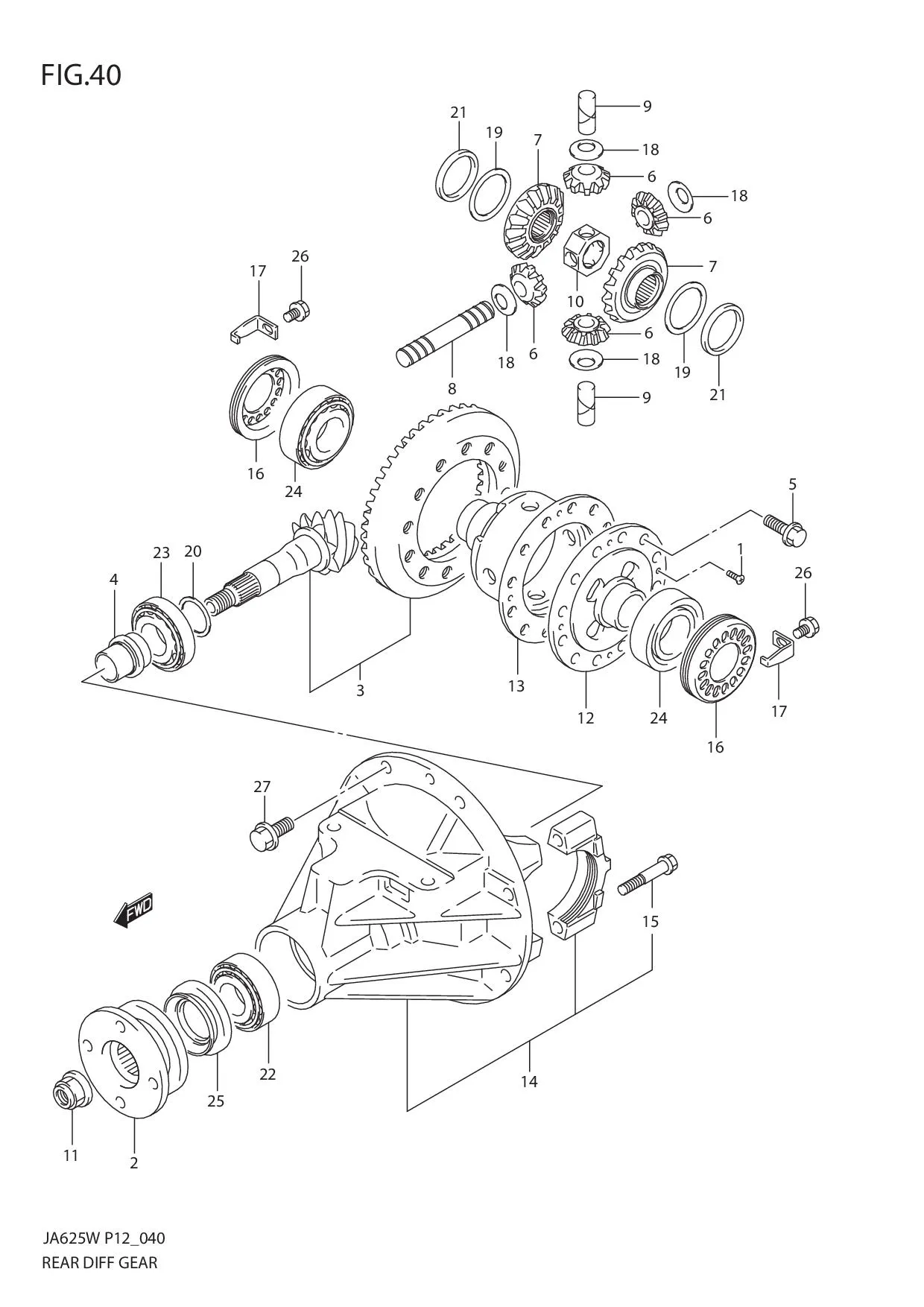

FIG.40 REAR DIFF GEAR

No	No. Part	Description	Qty	Price Per Pcs
1	24728-65G20-000	SCREW, DIFF CASE	4	Rp33.500
2	DISCONTINUE SUB: 27110-68D20-000	FLANGE, UNIVERSAL JOINT	1	-
3	DISCONTINUE SUB: 27300-68830-000	BEVEL PINION & GEAR SET	1	-
4	27315-78E50-000 SUB: 27315-78E00-000	SPECER, PINION	1	Rp191.500
5	DISCONTINUE SUB: 27323-68D00-000	BOLT, DRIVE BEVEL GEAR	12	-
6	DISCONTINUE SUB: 27331-68D00-000	PINION, DIFF	4	-
7	DISCONTINUE SUB: 27341-68D00-000	GEAR, DIFF	2	-
8	DISCONTINUE SUB: 27351-68D00-000	SHAFT, DIFF PINION NO.1	1	-
9	DISCONTINUE SUB: 27355-68D00-000	SHAFT, DIFF PINION NO.2	2	-
10	DISCONTINUE SUB: 27356-68D00-000	JOINT, DIFF PINION	1	-
11	27375-60A00-000	NUT	1	Rp78.000
12	DISCONTINUE SUB: 27411-68D00-000	CASE, DIFF LH	1	-
13	DISCONTINUE SUB: 27421-68D00-000	CASE, DIFF RH	1	-
14	DISCONTINUE SUB: 27450-68D00-000	CARRIER ASSY, DIFF REAR	1	-
15	09111-12010-000	•BOLT (12X58)	4	Rp54.500
16	27461-83000-000	ADJUSTER, BEARING	2	Rp114.500
17	DISCONTINUE SUB: 27462-63202-000	PLATE, BEARING LOCK	2	-
18	09164-19003-000	WASHER	4	Rp27.500
19	DISCONTINUE SUB: 09164-40010-000	WASHER	2	-
20-12	09181-35125-000	SHIM (T:1.30)	0	Rp22.500
20-2	09181-35111-000	SHIM (T:1.00)	0	Rp32.500
20-11	09181-35124-000	SHIM (T:1.27)	0	Rp30.500
20-10	09181-35122-000	SHIM (T:1.24)	0	Rp31.000
20-9	09181-35121-000	SHIM (T:1.21)	0	Rp30.500
20-8	09181-35119-000	SHIM (T:1.18)	0	Rp31.000
20-7	09181-35118-000	SHIM (T:1.15)	0	Rp22.500
20-6	09181-35117-000	SHIM (T:1.12)	0	Rp31.000
20-5	09181-35115-000	SHIM (T:1.09)	0	Rp32.000
20-4	09181-35114-000	SHIM (T:1.06)	0	Rp32.000
20-3	DISCONTINUE SUB: 09181-35112-000	SHIM (T:1.03)	0	-
20-1	09181-35101-000	SHIM (T:0.30)	0	Rp14.500
21-1	DISCONTINUE SUB: 09181-40187-000	WASHER (T:0.6)	0	-
21-2	DISCONTINUE SUB: 09181-40188-000	WASHER (T:0.7)	0	-
21-3	DISCONTINUE SUB: 09181-40190-000	WASHER (T:0.8)	0	-
22	09265-30018-000	BEARING, PINION FRONT	1	Rp581.000
23	09265-35011-000	BEARING, PINION REAR	1	Rp690.000
24	09265-45002-000	BEARING, DIFF SIDE	2	Rp636.000
25	09283-40027-000	SEAL, PINION OIL	1	Rp91.000
26	01550-0812A-000 SUB: 01550B08123N000	BOLT	2	Rp3.500
27	DISCONTINUE SUB: 09112-10004-000	BOLT (10X35)	8	-
