GRANDESCUDO XL7 JA625W

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.23 AUTOMATIC TRANSMISSIONFIG.24 AT GASKET SETFIG.25 AT TM CASEFIG.26 AT EXTENSION CASEFIG.27 AT OIL PAN AND WIRE HARNESSFIG.28 AT OIL HOSEFIG.29 AT OIL PUMPFIG.30 AT OVER DRIVEFIG.31 AT CLUTCHFIG.32 AT CENTER SUPPORTFIG.33 AT PLANETARY GEARFIG.34 AT PARKING LOCKFIG.35 AT VALVEFIG.36 AT VALVE OVERHAUL SETFIG.37 AT GEAR SHIFT CONTROLFIG.38 AT SELECT LEVERFIG.39 PROPELLER SHAFTFIG.40 REAR DIFF GEAR

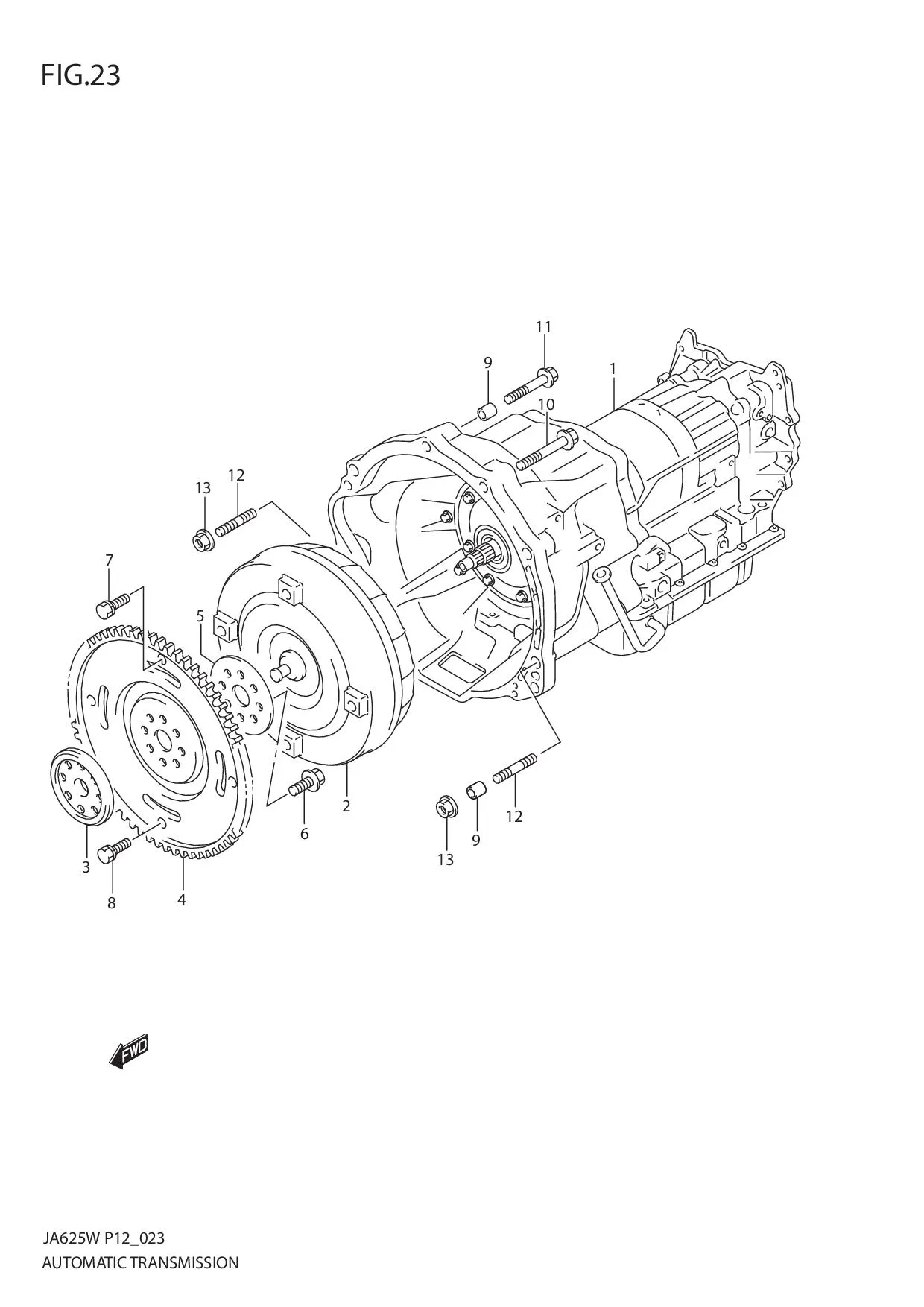

FIG.23 AUTOMATIC TRANSMISSION

FIG.23 AUTOMATIC TRANSMISSION
No No. Part Description Qty Price Per Pcs Remarks
1 DISCONTINUE
SUB: 21000-67DV9-000		 TRANSMISSION ASSY, AUTOMATIC 1 -
2 DISCONTINUE
SUB: 22700-67D30-000		 •CONVERTER, TORQUE 1 -
3 DISCONTINUE
SUB: 22611-85FA0-000		 FLANGE, DRIVE PLATE FRONT 1 -
4 22620-85FA0-000 PLATE, DRIVE 1 Rp2.712.500
5 DISCONTINUE
SUB: 22631-85FA0-000		 FLANGE, DRIVE PLATE REAR 1 -
6 09103-10282-000 BOLT (10X13.5) 8 Rp34.500
7 09103-10286-000 BOLT (10X18.5) 3 Rp24.000
8 09103-10340-000 BOLT 1 Rp19.000
9 09206-15001-000 PIN (12.4X15X17) 2 Rp37.000
10 01550-1265B-000
SUB: 01550-12653-000		 BOLT 2 Rp50.000
11 01550-1275A-000
SUB: 01550-12753-000		 BOLT 2 Rp9.000
12 09108-12012-000
SUB: 09108-12007-000		 STUD BOLT 2 Rp35.000
13 08316-1012A-000
SUB: 08316-10123-000		 NUT 2 Rp6.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
