GRANDESCUDO XL7 JA625W

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.23 AUTOMATIC TRANSMISSIONFIG.24 AT GASKET SETFIG.25 AT TM CASEFIG.26 AT EXTENSION CASEFIG.27 AT OIL PAN AND WIRE HARNESSFIG.28 AT OIL HOSEFIG.29 AT OIL PUMPFIG.30 AT OVER DRIVEFIG.31 AT CLUTCHFIG.32 AT CENTER SUPPORTFIG.33 AT PLANETARY GEARFIG.34 AT PARKING LOCKFIG.35 AT VALVEFIG.36 AT VALVE OVERHAUL SETFIG.37 AT GEAR SHIFT CONTROLFIG.38 AT SELECT LEVERFIG.39 PROPELLER SHAFTFIG.40 REAR DIFF GEAR

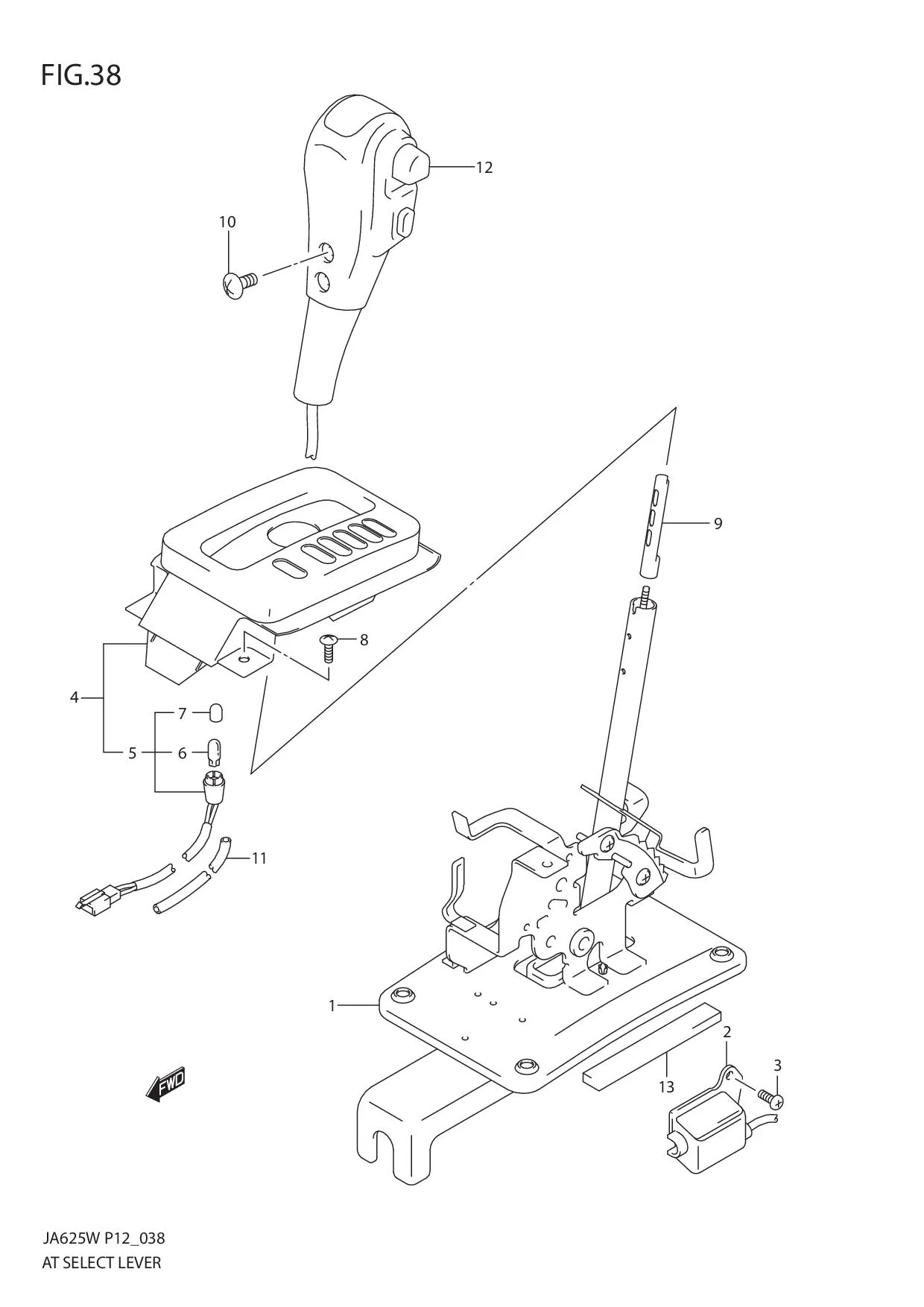

FIG.38 AT SELECT LEVER

FIG.38 AT SELECT LEVER
No No. Part Description Qty Price Per Pcs Remarks
1 28110-50J12-000 LEVER ASSY, SELECT 1 -
2 28610-54G10-000 SOLENOID COMP, SHIFT LOCK 1 -
3 DISCONTINUE
SUB: 09118-05006-000		 BOLT (5X8) 1 -
4 28150-50J70-000 INDICATOR ASSY, SELECT LEVER 1 -
5 28180-50J10-000 •LAMP ASSY, ILLUMINATION 1 -
6 28181-65D10-000 ••BULB, ILLUM LAMP 1 Rp40.000
7 28182-50J10-000 ••FILTER, ILLUM LAMP BULB 1 -
8 02142-0510A-000
SUB: 02142-05103-000		 SCREW 2 Rp4.000
9 DISCONTINUE
SUB: 28164-50J10-000		 GUIDE, DETENT RELEASE 1 -
10 28177-50J10-000 SCREW, SEL LEVER KNOB 2 -
11 28118-64B61-000 TUBE, SWITCH WIRE 1 Rp23.500
12 DISCONTINUE
SUB: 28160-50JN0-KN1		 KNOB ASSY, SEL LEVER 1 -
13 DISCONTINUE
SUB: 28176-50J30-000		 TAPE, SEAL 2 -

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
