GRANDESCUDO XL7 JA625W

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.23 AUTOMATIC TRANSMISSIONFIG.24 AT GASKET SETFIG.25 AT TM CASEFIG.26 AT EXTENSION CASEFIG.27 AT OIL PAN AND WIRE HARNESSFIG.28 AT OIL HOSEFIG.29 AT OIL PUMPFIG.30 AT OVER DRIVEFIG.31 AT CLUTCHFIG.32 AT CENTER SUPPORTFIG.33 AT PLANETARY GEARFIG.34 AT PARKING LOCKFIG.35 AT VALVEFIG.36 AT VALVE OVERHAUL SETFIG.37 AT GEAR SHIFT CONTROLFIG.38 AT SELECT LEVERFIG.39 PROPELLER SHAFTFIG.40 REAR DIFF GEAR

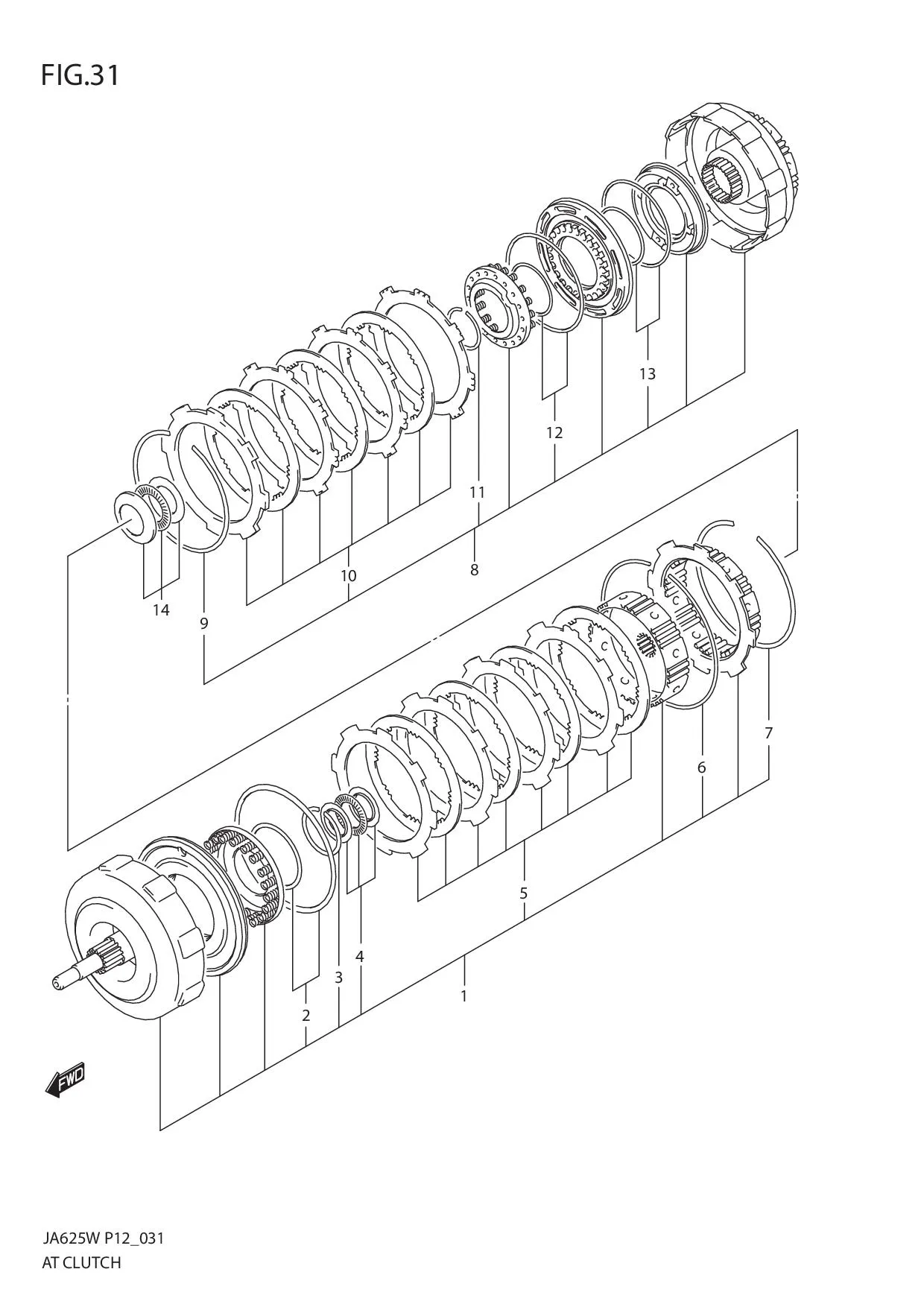

FIG.31 AT CLUTCH

FIG.31 AT CLUTCH
No No. Part Description Qty Price Per Pcs Remarks
1 DISCONTINUE
SUB: 26601-57B11-000		 CLUTCH ASSY, FWD 1 -
2 26622-65DT0-000 •O RING SET, CLUTCH NO.1 1 Rp277.000
3 26691-57B00-000 •RING, RETURN SPRING 1 Rp118.500
4 26661-57BT0-000 •BEARING SET, THRUST NO.7 1 Rp536.500
5 26631-65DU0-000 •PLATE SET, DIRECT CLUTCH 1 Rp7.750.000
6 26823-60G10-000 •RING, RETAINING CL HUB NO.1 1 Rp68.000
7 26692-57B01-000 •RING, RETAINING CL HUB 1 Rp194.500
8 26602-67D30-000 CLUTCH ASSY, DIRECT 1 Rp16.420.000
9 26692-57B10-000 •RING, BACK PLATE 1 Rp173.500
10 26621-67DT0-000 •PLATE SET, DIRECT CLUTCH 1 Rp7.156.000
11 26691-57B00-000 •RING, RETURN SPRING 1 Rp118.500
12 26622-65DT0-000 •O RING SET, DIRECT CLUTCH 1 Rp277.000
13 26632-57BT1-000 •O RING SET, DIRECT CLUTCH 1 Rp260.500
14 26662-65DT0-000 BEARING SET, THRUST NO.8 1 Rp648.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
