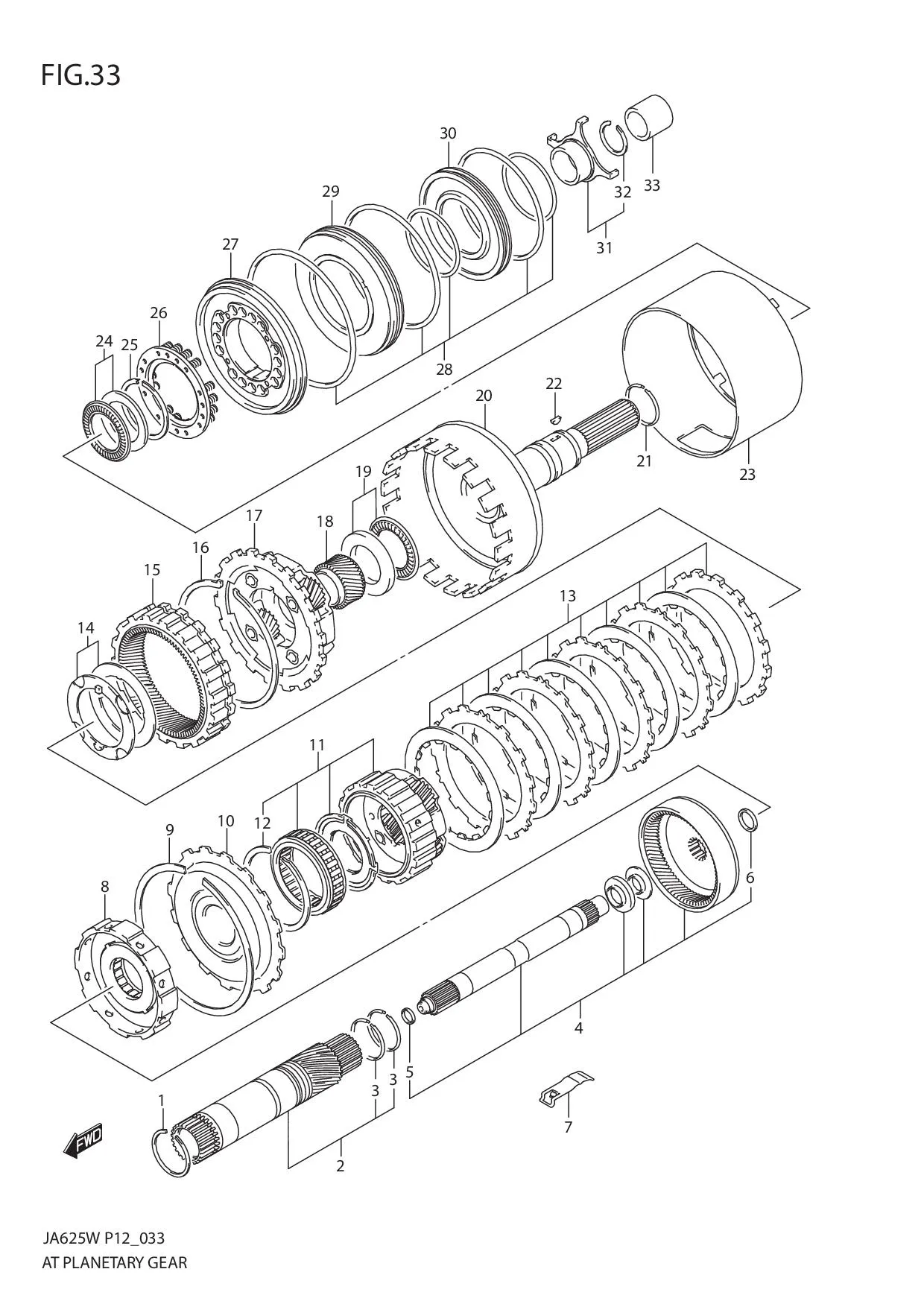

FIG.33 AT PLANETARY GEAR

No	No. Part	Description	Qty	Price Per Pcs
1	24991-57B00-000	RING, DIRECT CLUTCH	1	Rp130.000
2	DISCONTINUE SUB: 24901-57B00-000	GEAR ASSY, PLNTY SUN	1	-
3	29796-57B00-000	•RING, SUN GEAR SEAL	2	Rp251.500
4	DISCONTINUE SUB: 24950-57B00-000	SHAFT ASSY, INNER	1	-
5	29795-57B00-000	•RING, SLEEVE SEAL	1	Rp96.000
6	24995-57B00-000	•RING, INNER SHAFT	1	Rp131.500
7	DISCONTINUE SUB: 29622-57B00-000	SPRING, LEAF	1	-
8	DISCONTINUE SUB: 24931-57B00-000	HUB ASSY, B2 BRAKE	1	-
9	26891-57B00-000	RING, REACTION PLATE	1	Rp200.500
10	DISCONTINUE SUB: 26831-57B00-000	PLATE, REV BRAKE REACTION	1	-
11	DISCONTINUE SUB: 24902-52D10-000	GEAR ASSY, FRONT PLNTY	1	-
12	24993-57B00-000	•RING, CLUTCH	1	Rp127.500
13	26811-65DT0-000	PLATE SET, 1ST/REV BRAKE	1	Rp9.137.500
14	29945-57BT0-000	WASHER SET, THRUST PLNTY	1	Rp338.000
15	DISCONTINUE SUB: 24943-57B00-000	GEAR, FRONT PLNTY RING	1	-
16	24992-57B00-000	RING, FRONT PLNTY RING	1	Rp173.000
17	DISCONTINUE SUB: 24944-52D10-000	GEAR, REAR PLNTY CARRIER	1	-
18	DISCONTINUE SUB: 24946-57B00-000	GEAR, PLNTY SUN	1	-
19	DISCONTINUE SUB: 26663-57BT0-000	BEARING SET, THRUST NO.9	1	-
20	DISCONTINUE SUB: 24952-57BG0-000	SHAFT ASSY, OUT PUT	1	-
21	29794-57B00-000	SEAL RING, OUT PUT SHAFT	1	Rp233.000
22	24971-57B00-000	KEY, WOODRUFF	1	Rp110.000
23	DISCONTINUE SUB: 26832-85FA0-000	TUBE, BRAKE APPLY	1	-
24	24962-57BT0-000	BEARING SET, THRUST NO.4	1	Rp481.000
25	28949-57B00-000	RING, REV SPRING	1	Rp134.500
26	DISCONTINUE SUB: 26841-57B00-000	SPRING, PISTON RETURN	1	-
27	DISCONTINUE SUB: 26821-57B00-000	PISTON, REVERSE BRAKE	1	-
28	29729-65DT0-000	O RING SET, REV BRAKE PISTON	1	Rp709.500
29	DISCONTINUE SUB: 26861-57B00-000	SLEEVE, REACTION	1	-
30	26822-57B00-000	PISTON, SECONDARY REV	1	Rp764.000
31	DISCONTINUE SUB: 24921-67DT0-000	ROTOR SET, SENSOR	1	-
32	24994-57B00-000	•RING, ROTOR	1	Rp127.000
33	24922-57BG0-000	SPACER, SENSOR ROTOR	1	Rp231.500
