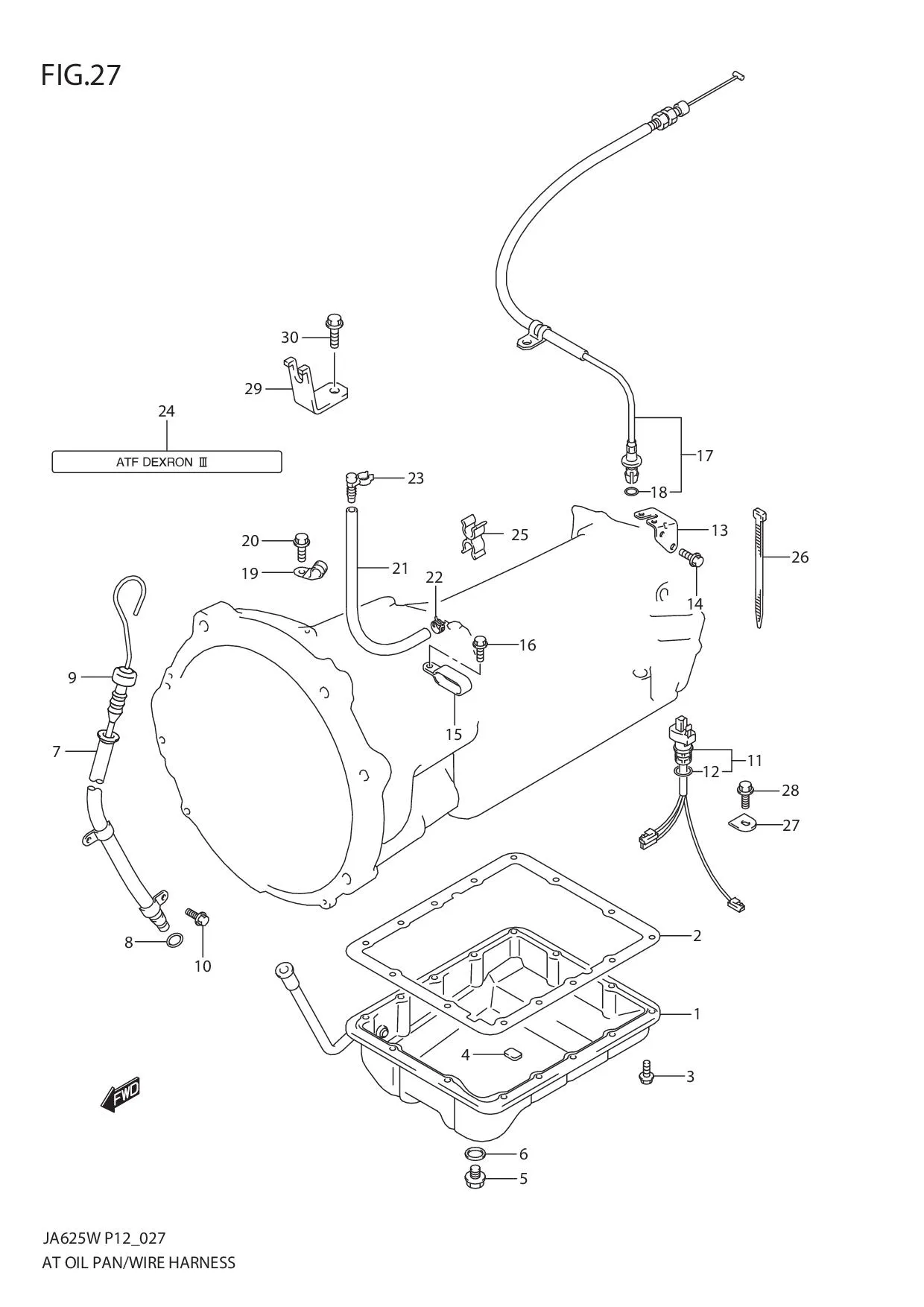

FIG.27 AT OIL PAN AND WIRE HARNESS

No	No. Part	Description	Qty	Price Per Pcs
1	24741-85FA0-000	PAN, OIL	1	Rp3.059.500
2	24782-57B00-000	GASKET, OIL PAN	1	Rp293.000
3	09117-06002-000	BOLT (6X14)	14	Rp16.000
4	24745-57B00-000	MAGNET, OIL PAN	2	Rp69.000
5	24823-79C10-000 SUB: 24742-54D10-000	PLUG, DRAIN	1	Rp31.000
6	24781-57B00-000 SUB: 24781-54D10-000	GASKET, DRAIN PLUG	1	Rp33.500
7	DISCONTINUE SUB: 22940-85FA1-000	TUBE, OIL FILLER	1	-
8	09280-10016-000	O RING	1	Rp19.500
9	22951-57B12-000 SUB: 22951-57B11-000	GAUGE, OIL	1	Rp394.000
10	01550-0820A-000 SUB: 01550-08203-000	BOLT	1	Rp5.500
11	24732-57B10-000	HARNESS, SOLENOID WIRE	1	Rp2.646.000
12	29726-57B00-000	•O RING, WIRE HARNESS	1	Rp107.000
13	DISCONTINUE SUB: 26150-57B00-000	BRACKET, WIRE HARNESS	1	-
14	02162-0610A-000 SUB: 02162-06103-000	BOLT	1	Rp5.000
15	DISCONTINUE SUB: 09403-16407-000	CLAMP	1	-
16	02162-0610A-000 SUB: 02162-06103-000	BOLT	1	Rp5.000
17	24751-67D11-000	CABLE ASSY, THROTTLE	1	Rp1.535.500
18	DISCONTINUE SUB: 29727-57B00-000	•O RING, CABLE	1	-
19	DISCONTINUE SUB: 24733-65D10-000	CLAMP, CABLE	1	-
20	DISCONTINUE SUB: 29969-57B00-000	BOLT, CABLE CLAMP	1	-
21	24771-65D00-000	HOSE, TRANSMISSION BREATHER	1	Rp242.000
22	DISCONTINUE SUB: 24735-57B00-000	CLIP, BREATHER HOSE	2	-
23	24773-57B00-000	BREATHER, TRANSMISSION	1	Rp190.500
24	DISCONTINUE SUB: 24839-61A31-000	EMBLEM, ATF	1	-
25	36990-25G00-000 SUB: 09408-00145-000	CLIP	1	Rp13.000
26	DISCONTINUE SUB: 24811-57B00-000	CLAMP, SOLENOID WIRE HARN	1	-
27	DISCONTINUE SUB: 29432-57BG0-000	PLATE, SOLENOID WIRE LOCK	1	-
28	24813-57B00-000	BOLT, SOLENOID WIRE LOCK PLATE	1	Rp25.500
29	DISCONTINUE SUB: 28272-85FA0-000	BRACKET, AT THROTTLE CABLE	1	-
30	DISCONTINUE SUB: 01550B06123N000	BOLT	1	-
