GRANDESCUDO XL7 JA625W

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.23 AUTOMATIC TRANSMISSIONFIG.24 AT GASKET SETFIG.25 AT TM CASEFIG.26 AT EXTENSION CASEFIG.27 AT OIL PAN AND WIRE HARNESSFIG.28 AT OIL HOSEFIG.29 AT OIL PUMPFIG.30 AT OVER DRIVEFIG.31 AT CLUTCHFIG.32 AT CENTER SUPPORTFIG.33 AT PLANETARY GEARFIG.34 AT PARKING LOCKFIG.35 AT VALVEFIG.36 AT VALVE OVERHAUL SETFIG.37 AT GEAR SHIFT CONTROLFIG.38 AT SELECT LEVERFIG.39 PROPELLER SHAFTFIG.40 REAR DIFF GEAR

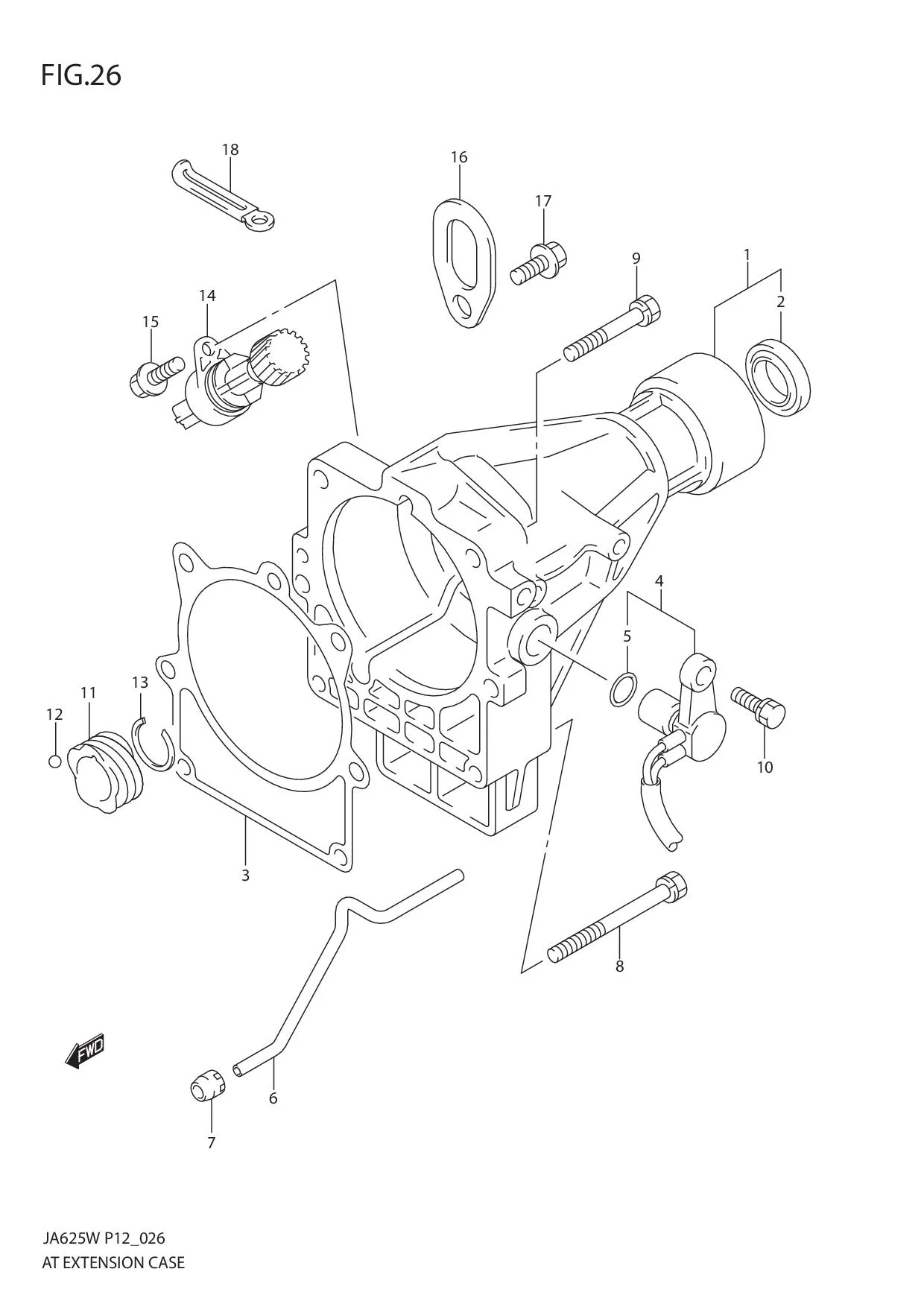

FIG.26 AT EXTENSION CASE

FIG.26 AT EXTENSION CASE
No No. Part Description Qty Price Per Pcs Remarks
1 DISCONTINUE
SUB: 24770-57BG0-000		 CASE ASSY, EXTENSION 1 -
2 29792-57BG0-000 •SEAL, EXTENSION CASE 1 Rp243.000
3 24784-57B00-000 GASKET, EXTENSION CASE 1 Rp215.500
4 24791-57B00-000 SENSOR, SPEED 1 Rp2.793.000
5 29725-57B00-000 •O RING, SPEED SENSOR 1 Rp114.500
6 26535-57BG0-000 TUBE, EXTENSION HOUSING 1 Rp213.000
7 29846-57BG0-000 PACKING, EXTENSION HOUSING 1 Rp95.000
8 29972-57BG0-000 BOLT, EXTENSION CASE 2 -
9 DISCONTINUE
SUB: 29972-57B00-000		 BOLT, EXTENSION CASE 4 -
10 29989-57B00-000 BOLT, SPEED SENSOR 1 Rp69.500
11 DISCONTINUE
SUB: 26121-57BG0-000		 GEAR, SPEEDOMETER DRIVE 1 -
12 DISCONTINUE
SUB: 29433-57BG0-000		 BALL, SPEEDOMETER GEAR 1 -
13 24994-57BG0-000 RING, RETAINING SPDOM GR DRIVE 1 Rp40.500
14 34910-65D71-000
SUB: 34910-65D70-000		 SENSOR ASSY, SPEED 1 Rp2.167.000
15 01550-0816A-000
SUB: 01550M08163-000		 BOLT 1 Rp6.000
16 DISCONTINUE
SUB: 11851-62B00-000		 HOOK 1 -
17 01550-0816A-000
SUB: 01550M08163-000		 BOLT 1 Rp6.000
18 DISCONTINUE
SUB: 24734-65D10-000		 CLAMP, WIRE HARNESS 1 -

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
