GRANDESCUDO XL7 JA625W

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.23 AUTOMATIC TRANSMISSIONFIG.24 AT GASKET SETFIG.25 AT TM CASEFIG.26 AT EXTENSION CASEFIG.27 AT OIL PAN AND WIRE HARNESSFIG.28 AT OIL HOSEFIG.29 AT OIL PUMPFIG.30 AT OVER DRIVEFIG.31 AT CLUTCHFIG.32 AT CENTER SUPPORTFIG.33 AT PLANETARY GEARFIG.34 AT PARKING LOCKFIG.35 AT VALVEFIG.36 AT VALVE OVERHAUL SETFIG.37 AT GEAR SHIFT CONTROLFIG.38 AT SELECT LEVERFIG.39 PROPELLER SHAFTFIG.40 REAR DIFF GEAR

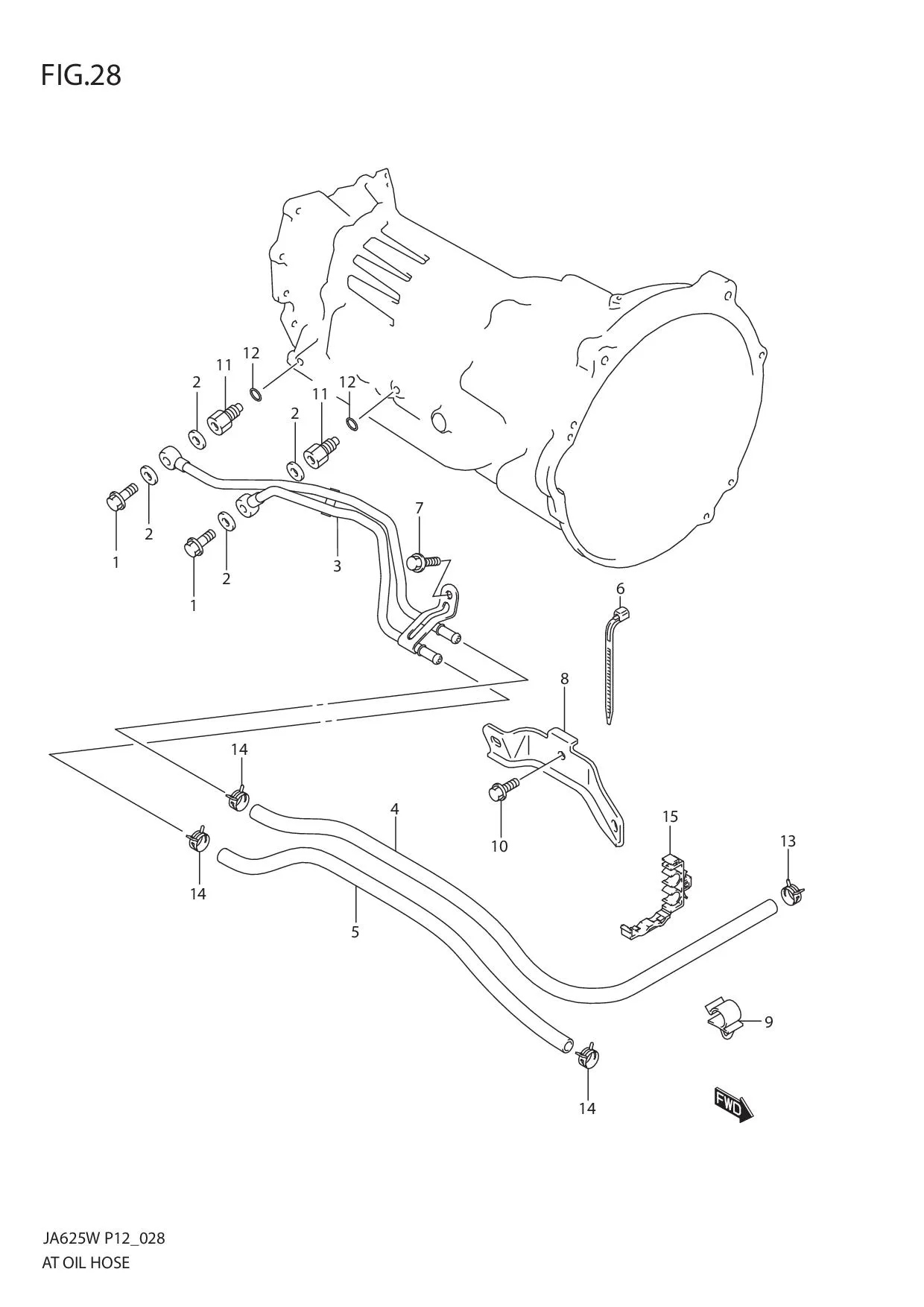

FIG.28 AT OIL HOSE

FIG.28 AT OIL HOSE
No No. Part Description Qty Price Per Pcs Remarks
1 DISCONTINUE
SUB: 09360-14012-000		 BOLT (14X27) 2 -
2 22910-65810-000
SUB: 22913-65D30-000		 GASKET (14X20X1.5) 4 Rp126.500
3 22910-52D10-000 PIPE, OIL 1 Rp826.500
4 22931-52D10-000 HOSE, OIL INLET 1 Rp429.500
5 22931-52D10-000 HOSE, OIL OUTLET 1 Rp429.500
6 36990-25G00-000
SUB: 09407-14403L000		 CLAMP (L:125) 1 Rp13.000
7 DISCONTINUE
SUB: 01550B06123N000		 BOLT 1 -
8 DISCONTINUE
SUB: 22935-85FA1-000		 BRACKET, CLAMP NO.1 1 -
9 DISCONTINUE
SUB: 09403-14315-000		 CLAMP 1 -
10 01550-0816A-000
SUB: 01550M08163-000		 BOLT 1 Rp6.000
11 24743-57B10-000 UNION, OIL 2 Rp254.500
12 29737-57B00-000 O RING, OIL PIPE 2 Rp71.000
13 DISCONTINUE
SUB: 09401-15408-000		 CLAMP 1 -
14 09401-15410-000 CLAMP 3 Rp29.000
15 09403-14313-000 CLAMP 2 Rp26.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
