GRANDESCUDO XL7 JA625W

Preview Engine Transmission Electrical Suspension Body

< KEMBALI KE THUMBNAIL FIG.23 AUTOMATIC TRANSMISSION FIG.24 AT GASKET SET FIG.25 AT TM CASE FIG.26 AT EXTENSION CASE FIG.27 AT OIL PAN AND WIRE HARNESS FIG.28 AT OIL HOSE FIG.29 AT OIL PUMP FIG.30 AT OVER DRIVE FIG.31 AT CLUTCH FIG.32 AT CENTER SUPPORT FIG.33 AT PLANETARY GEAR FIG.34 AT PARKING LOCK FIG.35 AT VALVE FIG.36 AT VALVE OVERHAUL SET FIG.37 AT GEAR SHIFT CONTROL FIG.38 AT SELECT LEVER FIG.39 PROPELLER SHAFT FIG.40 REAR DIFF GEAR

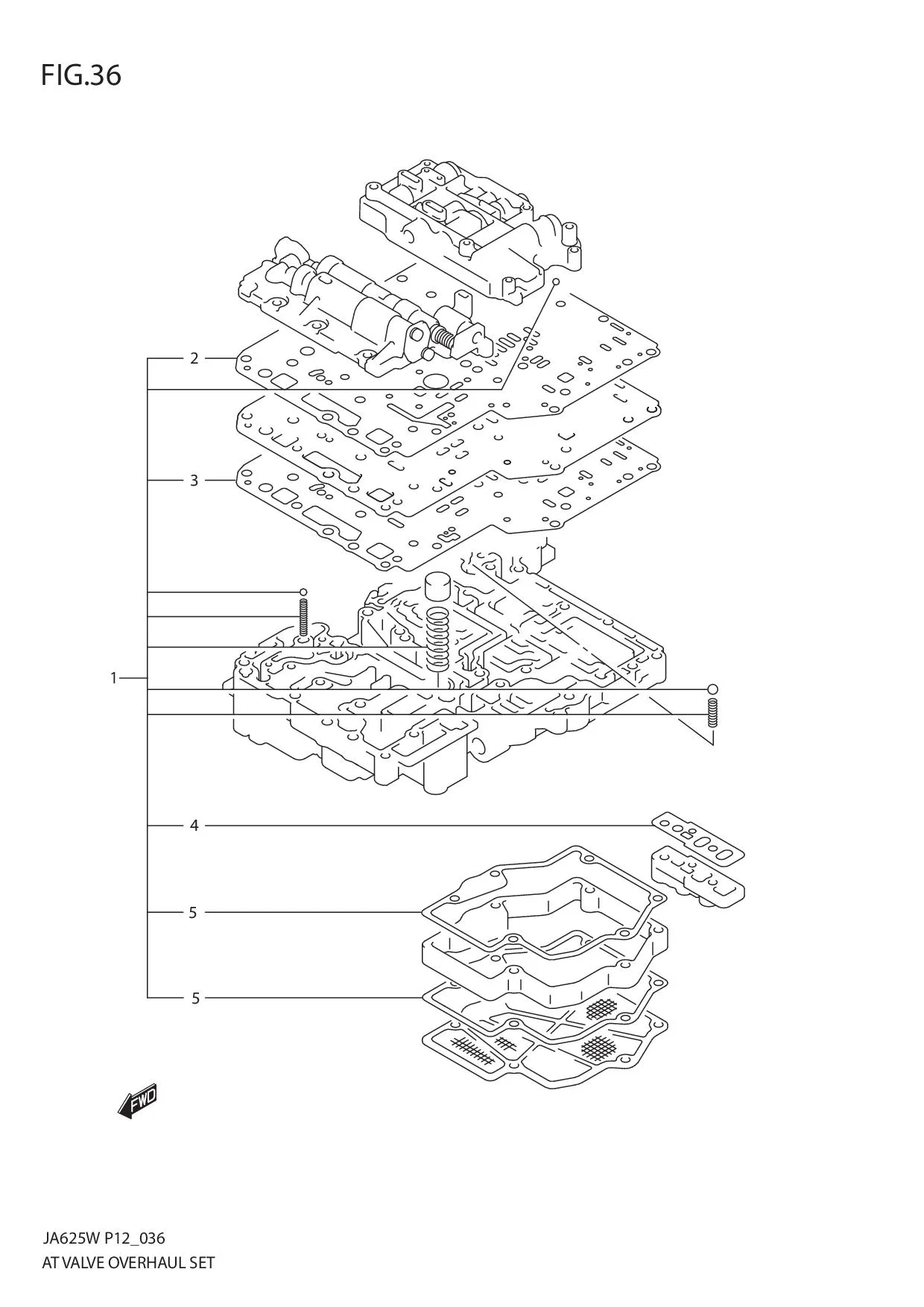

FIG.36 AT VALVE OVERHAUL SET

FIG.36 AT VALVE OVERHAUL SET

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	26580-57BT0-000	OVERHAUL SET, VALVE BODY	1	Rp2.846.000
2	26584-57B01-000	•GASKET, VALVE BODY	1	Rp224.500
3	26585-57B01-000	•GASKET, VALVE BODY	1	Rp212.500
4	26581-57B00-000	•GASKET, COVER	1	Rp144.000
5	26583-57B00-000	•GASKET, SCREEN	2	Rp190.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
