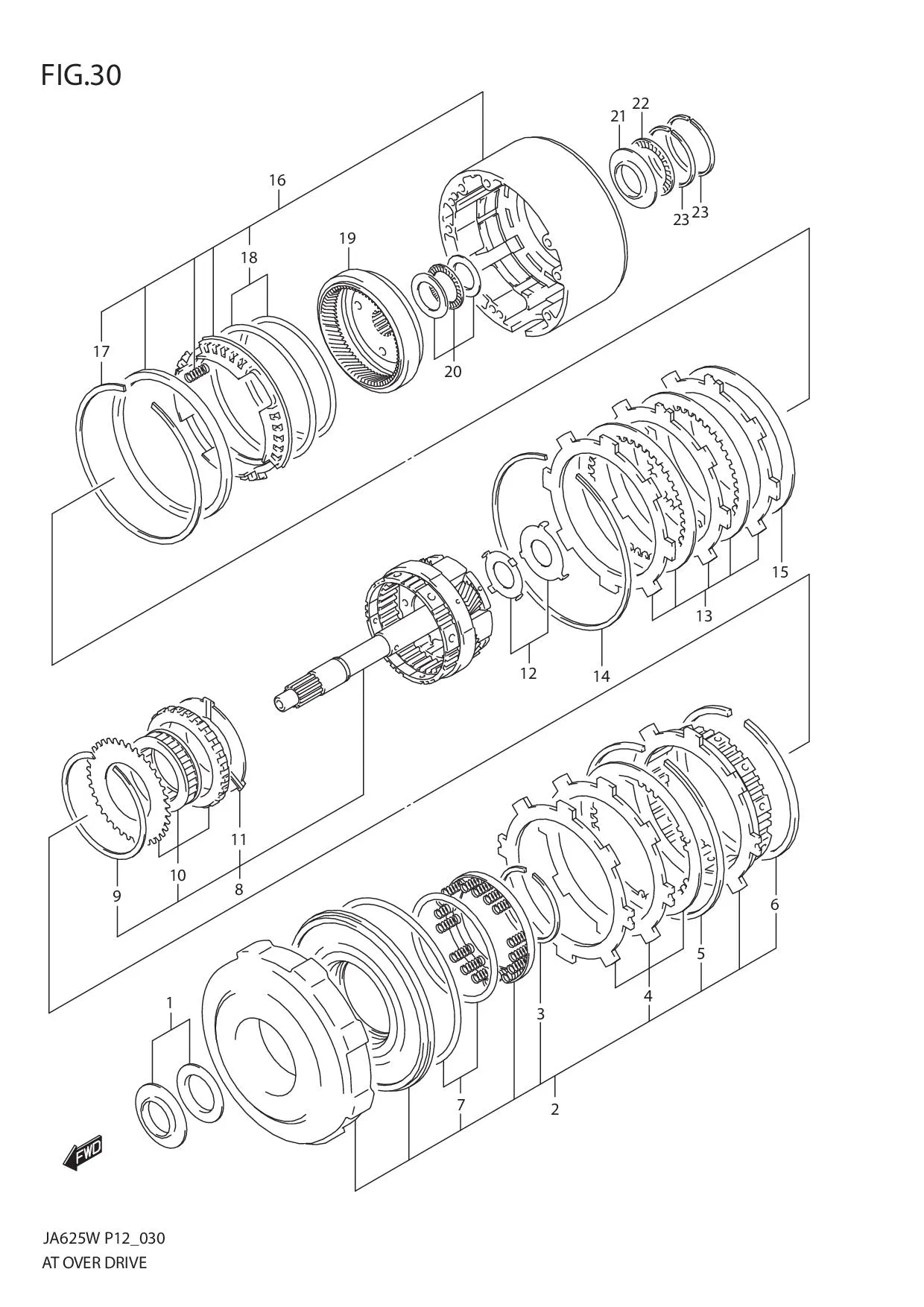

FIG.30 AT OVER DRIVE

FIG.30 AT OVER DRIVE
No No. Part Description Qty Price Per Pcs Remarks
1 24963-57BT0-000 BEARING SET, THRUST NO.5 1 Rp815.000
2 DISCONTINUE
SUB: 24100-77ED0-000		 CLUTCH ASSY, OVER DRIVE 1 -
3 28949-57B00-000 •RING, CLUTCH SNAP 1 Rp134.500
4 DISCONTINUE
SUB: 24111-85FT0-000		 •DISK SET, OVER DRIVE CLUTCH 1 -
5 24191-57B00-000 •RING, RETAINING CLUTCH 1 Rp129.000
6 24192-57B00-000 •RING, RETAINING BRAKE HUB 1 Rp221.500
7 26622-65DT0-000 •O RING SET 1 Rp277.000
8 DISCONTINUE
SUB: 24140-77ED0-000		 GEAR ASSY, OVER DRIVE 1 -
9 24193-57B00-000 •RING, RETAINING PLNTY 1 Rp132.000
10 DISCONTINUE
SUB: 26850-77ET0-000		 •CLUTCH ASSY, ONE WAY 1 -
11 DISCONTINUE
SUB: 29949-77ED0-000		 •WASHER, THRUST O/D PLNTY 1 -
12 24163-57BT1-000
SUB: 24163-57BT0-000		 WASHER SET, THRUST PLNTY 1 Rp659.500
13 24114-65DU0-000 DISC SET, OVER DRIVE BRAKE 1 Rp6.071.000
14 24194-57B00-000 RING, BRAKE FRONT 1 Rp213.000
15 DISCONTINUE
SUB: 24118-57B00-000		 PLATE, BRAKE CUSHION 1 -
16 DISCONTINUE
SUB: 26310-67DT0-000		 PISTON ASSY, OVER DRIVE BRAKE 1 -
17 24194-57B00-000 •RING, BRAKE FRONT 1 Rp213.000
18 29745-57BT0-000 •O RING SET, BRAKE PISTON 1 Rp373.000
19 DISCONTINUE
SUB: 24142-57B00-000		 GEAR, PLNTY RING 1 -
20 24961-57BT0-000 BEARING SET, THRUST NO.3 1 Rp605.500
21 24161-65D10-000 RACE, THRUST BRG O/D CASE 1 Rp213.000
22 29691-65D10-000 BEARING, THRUST O/D CASE 1 Rp359.000
23 29797-65D10-000 RING, REAR SEAL 2 Rp234.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
