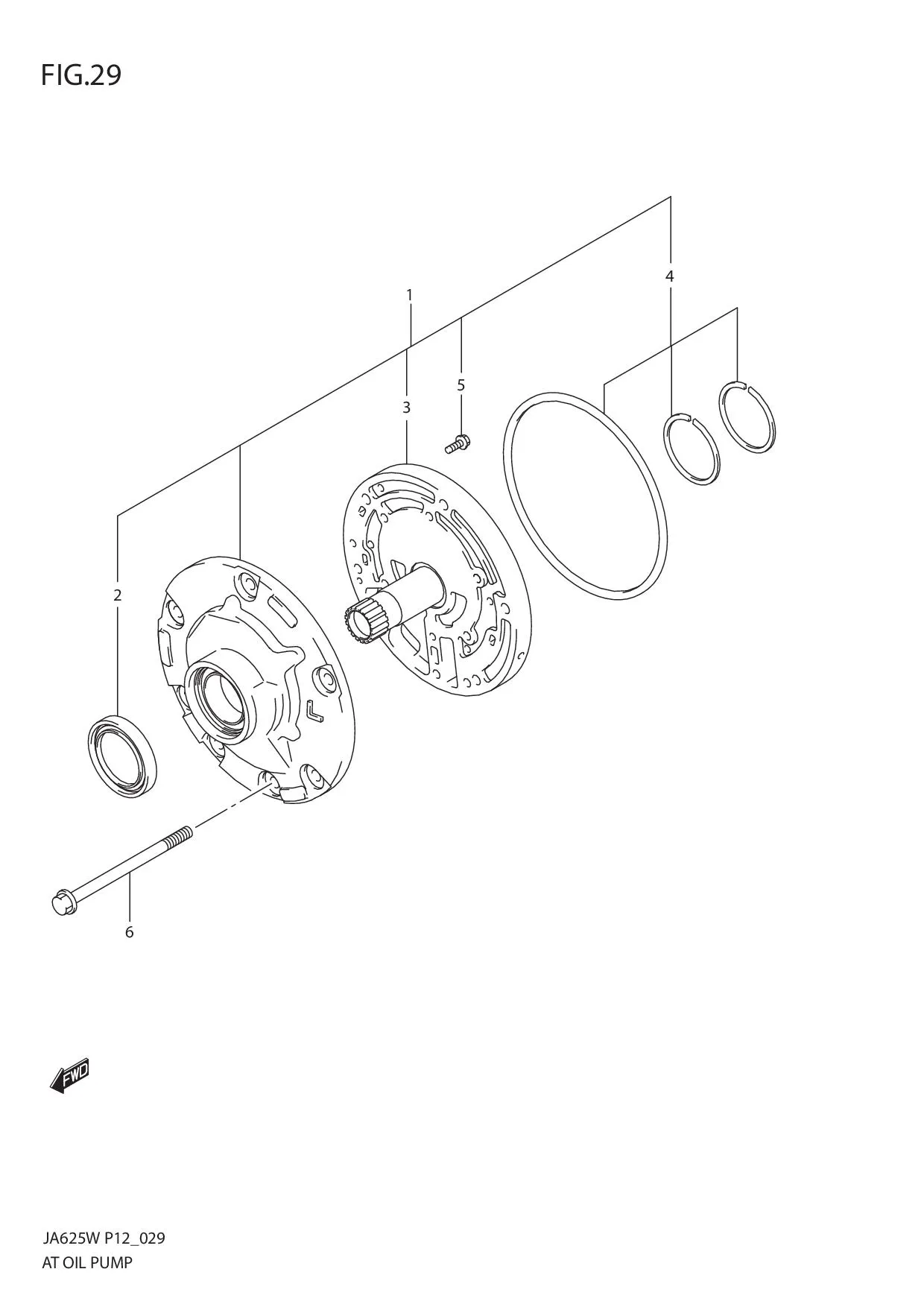

FIG.29 AT OIL PUMP

FIG.29 AT OIL PUMP

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	22800-54D11-000 SUB: 22800-54D10-000	PUMP ASSY, OIL	1	Rp18.262.000
2	29799-54D10-000	•SEAL, OIL PUMP	1	Rp239.500
3	DISCONTINUE SUB: 22820-57B00-000	•COVER, OIL PUMP	1	-
4	22860-57BT0-000	•RING SET, OIL PUMP SEAL	1	Rp769.500
5	DISCONTINUE SUB: 29999-57B00-000	•BOLT, COVER	6	-
6	DISCONTINUE SUB: 29998-57B00-000	BOLT, OIL PUMP	7	-

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
