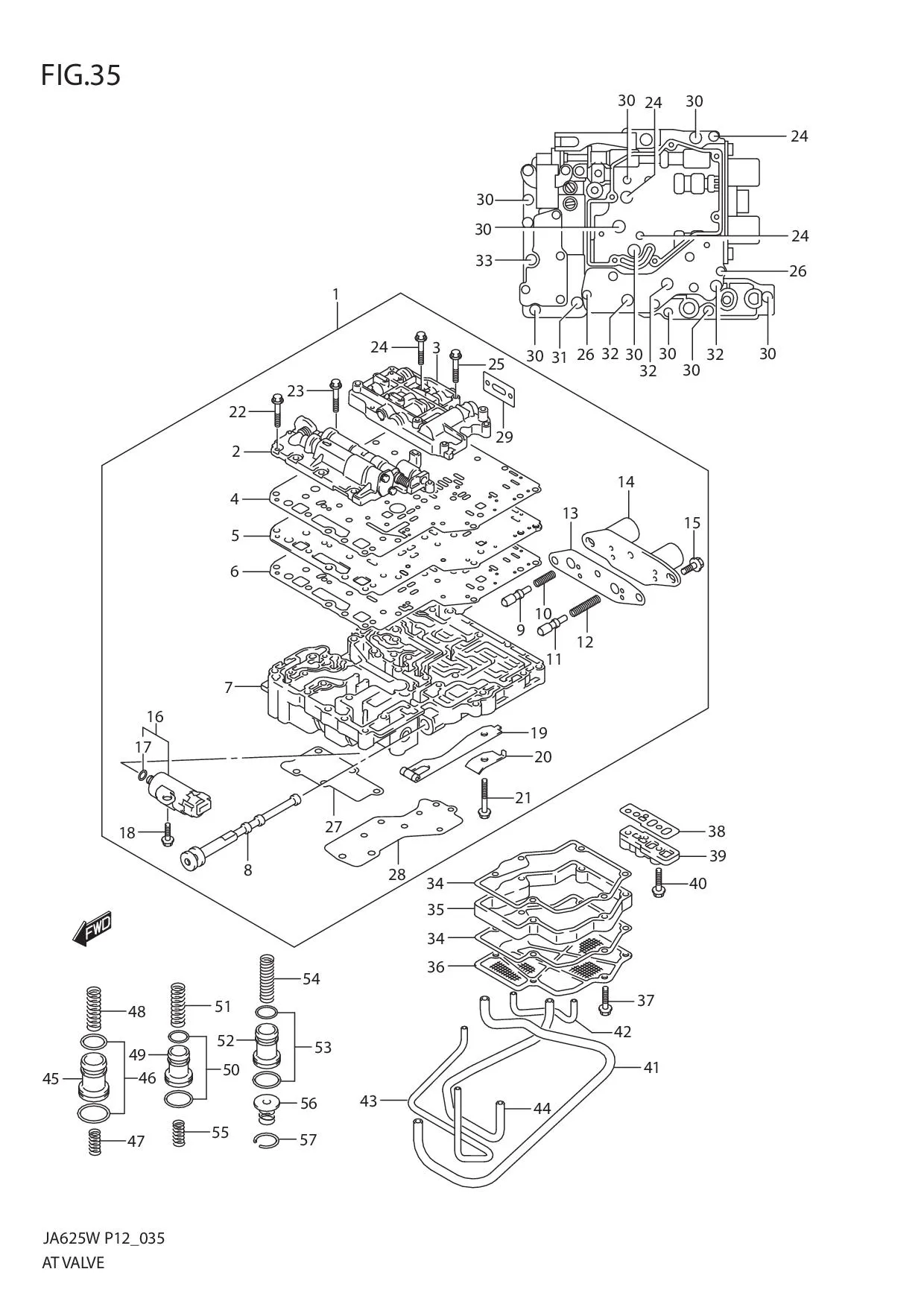

FIG.35 AT VALVE

No	No. Part	Description	Qty	Price Per Pcs
1	DISCONTINUE SUB: 26500-52D10-000	BODY ASSY, VALVE	1	-
2	DISCONTINUE SUB: 26530-52D10-000	•BODY ASSY, UPPER VALVE FRONT	1	-
3	DISCONTINUE SUB: 26520-77ED0-000	•BODY ASSY, UPPER VALVE REAR	1	-
4	26584-57B01-000	•GASKET, VALVE BODY	1	Rp224.500
5	26522-52D10-000	•PLATE, SEPARATOR	1	Rp1.326.500
6	26585-57B01-000	•GASKET, VALVE BODY	1	Rp212.500
7	DISCONTINUE SUB: 26510-52D10-000	•BODY ASSY, LOWER VALVE	1	-
8	DISCONTINUE SUB: 26552-57B00-000	•VALVE, MANUAL	1	-
9	DISCONTINUE SUB: 26538-57B00-000	•VALVE, MODULATOR	1	-
10	DISCONTINUE SUB: 29627-77ED0-000	•SPRNG, VALVE	1	-
11	DISCONTINUE SUB: 26538-57B00-000	•VALVE, MODULATOR	1	-
12	DISCONTINUE SUB: 29628-57B00-000	•SPRING, VALVE	1	-
13	26589-57B00-000	•GASKET, SOLENOID	1	Rp105.500
14	26591-57B00-000	•SOLENOID, NO.1	1	Rp7.516.000
15	DISCONTINUE SUB: 29973-57B00-000	•BOLT, SOLENOID NO.1	1	-
16	26592-57BT0-000	•SOLENOID SET, NO.2	1	Rp5.541.000
17	29728-57B00-000	••O RING, SOLENOID NO.2	1	Rp70.000
18	DISCONTINUE SUB: 29983-57B00-000	•BOLT, SOLENOID NO.2	1	-
19	DISCONTINUE SUB: 26541-85FA0-000	•SPRING, DETENT	1	-
20	DISCONTINUE SUB: 26523-85FA0-000	•PLATE, SPRING	1	-
21	DISCONTINUE SUB: 29974-57B00-000	•BOLT, SPRING	1	-
22	DISCONTINUE SUB: 29979-65D10-000	•BOLT, NO.1	4	-
23	DISCONTINUE SUB: 29978-65D10-000	•BOLT, NO.2	2	-
24	DISCONTINUE SUB: 29977-57B00-000	•BOLT, NO.3	4	-
25	DISCONTINUE SUB: 29976-57B00-000	•BOLT, NO.4	3	-
26	DISCONTINUE SUB: 29975-57B00-000	•BOLT, NO.5	2	-
27	26586-57B00-000	•GASKET, LOCK UP VALVE	1	Rp78.000
28	26587-57B00-000	•GASKET, LOWER VALVE BODY	1	Rp141.000
29	26588-57B00-000	•GASKET, REAR UPPER VALVE BODY	1	Rp73.500
30	DISCONTINUE SUB: 29986-57B00-000	BOLT, VALVE BODY NO.1	10	-
31	DISCONTINUE SUB: 29985-57B00-000	BOLT, VALVE BODY NO.2	1	-
32	DISCONTINUE SUB: 29984-57B00-000	BOLT, VALVE BODY NO.3	3	-
33	DISCONTINUE SUB: 29987-57B00-000	BOLT, VALVE BODY NO.4	1	-
34	26583-57B00-000	GASKET, SCREEN	2	Rp190.500
35	DISCONTINUE SUB: 26565-57B00-000	SPACER, SCREEN	1	-
36	26582-57B00-000	SCREEN, OIL	1	Rp652.000
37	DISCONTINUE SUB: 29977-57B00-000	BOLT, SCREEN	6	-
38	26581-57B00-000	GASKET, COVER	2	Rp144.000
39	DISCONTINUE SUB: 26521-57B00-000	COVER, BRAKE APPLY	1	-
40	DISCONTINUE SUB: 29986-57B00-000	BOLT	2	-
41	26533-57B00-000	TUBE, FWD CLUTCH APPLY	1	Rp598.500
42	26532-57B00-000	TUBE, REV BRAKE APPLY	1	Rp337.000
43	26534-57B00-000	TUBE, O/D BRAKE APPLY	1	Rp464.500
44	26531-57B00-000	TUBE, TUBE APPLY	1	Rp459.500
45	29721-85FA0-000	PISTON, 2ND BRAKE ACCUMULATOR	1	Rp318.500
46	29733-57BT0-000	O RING SET, 2ND BRAKE	1	Rp138.000
47	DISCONTINUE SUB: 29644-65D30-000	SPRING, 2ND BRAKE ACC NO.1	1	-
48	29645-85FA0-000	SPRING, 2ND BRAKE ACC NO.2	1	Rp149.000
49	29722-85FA0-000	PISTON, DIRECT CLUTCH ACCUMULATOR	1	Rp273.000
50	29732-57BT0-000	O RING SET, DIRECT CLUTCH	1	Rp131.500
51	29643-85FA0-000	SPRING, DIRECT CL ACC NO.2	1	Rp169.000
52	DISCONTINUE SUB: 29723-57B00-000	PISTON, FWD CLUTCH ACCUMULATOR	1	-
53	29731-57BT0-000	O RING SET, FWD CLUTCH	1	Rp142.000
54	DISCONTINUE SUB: 29641-57B00-000	SPRING, FWD CL ACC NO.2	1	-
55	DISCONTINUE SUB: 29642-78ED0-000	SPRING, DIRECT CL ACC NO.1	1	-
56	DISCONTINUE SUB: 26411-57B00-000	SPRING, FWD CL ACC NO.1	1	-
57	26412-57B00-000	CIRCLIP, FWD CL ACC	1	Rp58.000
