Electrical - Suzuki Spare Part

Ubah pencarian

Atau cari dengan

Preview Engine Transmission Electrical Suspension Body

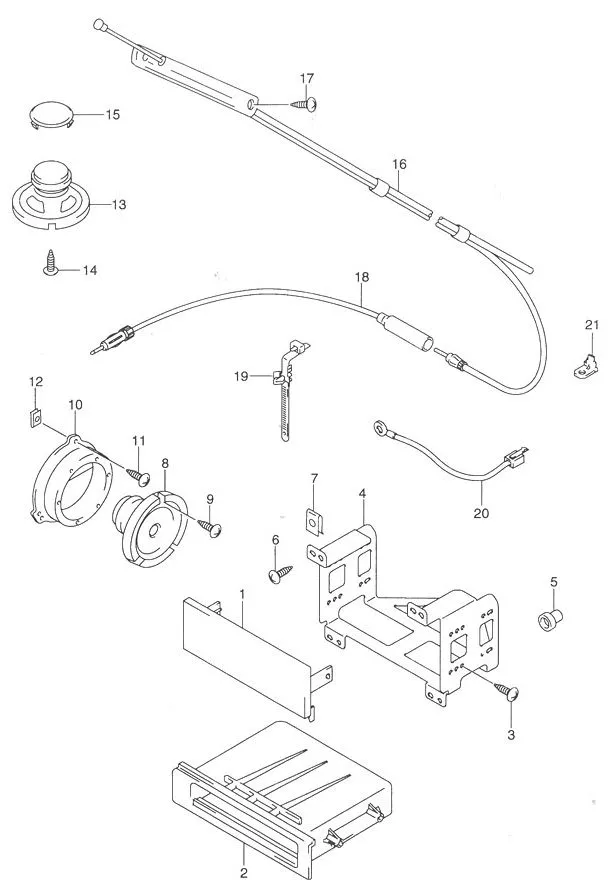

No	No. Part	Description	Qty	Price Per Pcs
1	DISCONTINUE SUB: 39161-74G00-000	COVER, RADIO HOLE	1	-
2	39182-77M10-000 SUB: 39182-70E50-000	POCKET, TUNER	1	Rp38.000
3	03241-0512A-000 SUB: 03242-05123-000	SCREW	4	Rp3.500
4	DISCONTINUE SUB: 39321-50J11-000	BRACKET, TUNER	1	-
5	DISCONTINUE SUB: 34955-60E00-000	BUSH	1	-
6	03141-0516B-000 SUB: 03142-05123-000	SCREW	4	Rp3.500
7	09148-05045-000 SUB: 09148B05045N000	NUT	4	Rp4.000
8	39102-63G12-000	SPEAKER ASSY, FRONT	2	-
9	03141-0516B-000 SUB: 03142-05163-000	SCREW	6	Rp3.500
10	DISCONTINUE SUB: 39350-82D00-000	BRACKET, FRONT SPEAKER	2	-
11	03241-0616C-000 SUB: 03242-06163-000	SCREW	6	Rp17.000
12	71851M70F00-000 SUB: 09148M06007-000	NUT	6	Rp4.000
13	39102-63G12-000	SPEAKER ASSY, REAR	2	-
14	03141-0516B-000 SUB: 03142-05123-000	SCREW	6	Rp3.500
15	DISCONTINUE SUB: 39239-50J00-000	CAP, TWEETER HOLE	2	-
16	39250-67D00-000	ANTENNA ASSY	1	Rp924.500
17	09126-04003-000	SCREW	2	-
18	DISCONTINUE SUB: 39270-50J00-000	FEEDER, PILLAR ANTENNA	1	-
19	09407-12404-000	CLAMP (L:140)	1	Rp19.500
20	DISCONTINUE SUB: 39312B65D00N000	WIRE, NOISE SUPPRESSOR	1	-
21	DISCONTINUE SUB: 36865-82000-000	TERMINAL, GROUND	1	-
