ESCUDO (SE416)

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.31 ENGINE ELECTRICALFIG.32 STARTING MOTORFIG.33 GENERATORFIG.34 BATTERYFIG.35 SPEEDOMETERFIG.36 FRONT LAMPFIG.37 ROOM LAMPFIG.38 REAR LAMPFIG.39 WIRING HARNESSFIG.40 ELECTRICAL CONTROLFIG.41 LOCK SETFIG.42 FRONT WINDOW WIPERFIG.43 WINDOW WASHERFIG.44 REAR WINDOW WIPERFIG.45 RADIO

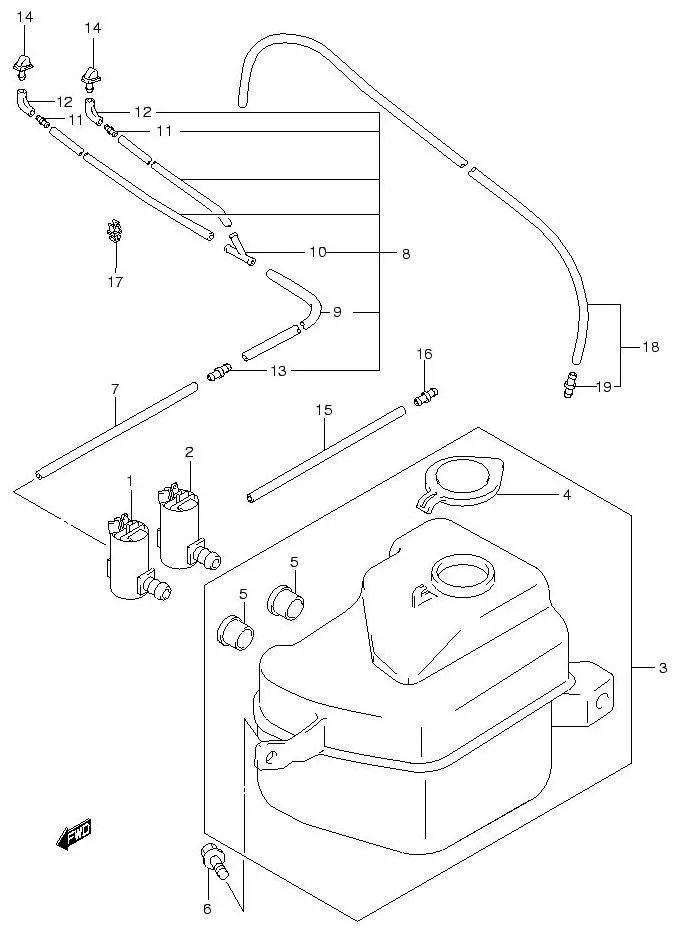

FIG.43 WINDOW WASHER

FIG.43 WINDOW WASHER
No No. Part Description Qty Price Per Pcs Remarks
1 38410-65D00-000 PUMP ASSY, WASHER FRONT 1 Rp1.092.500
2 38410-66113-000 PUMP ASSY, WASHER REAR 1 Rp865.000
3 38450-65D00-000 TANK ASSY, WASHER 1 Rp740.500
4 38452-65D00-000 •CAP, WASHER TANK 1 Rp27.000
5 38453M75000-000 •GROMMET 2 Rp4.500
6 09136-06133-000 SCREW (6X16) 3 Rp17.500
7 38459-50J00-000 HOSE, WASHER (L:810!400) 1 Rp56.500
8 38832-65D10-000 HOSE ASSY, WASHER 1 Rp315.500
9 38491-61A10-000 •HOSE, WASHER (L:2100!1100) 1 Rp113.500
10 38496-71311-000 •CONNECTOR, 3 WAY 1 Rp26.500
11 38833-79501-000 •VALVE, WASHER HOSE 2 Rp39.500
12 38454-71B10-000 •JOINT, ELBOW 2 Rp61.000
13 38496-56B00-000 •CONNECTOR, WASHER HOSE 1 Rp33.500
14 38480-65D50-000 NOZZLE, WASHER 2 Rp109.000
15 38491-61A00-000 HOSE, WASHER (L:1300!350) 1 Rp47.500
16 38496-56B00-000 CONNECTOR 1 Rp33.500
17 09403-07307-5PK CLAMP, WASHER HOSE (BLACK) 1 Rp18.500
18 DISCONTINUE
SUB: 38490-65D00-000		 HOSE ASSY, RR WASHER (L:3930) 1 -
19 38496-56B00-000 •CONNECTOR 1 Rp33.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
