ESCUDO (SE416)

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.31 ENGINE ELECTRICALFIG.32 STARTING MOTORFIG.33 GENERATORFIG.34 BATTERYFIG.35 SPEEDOMETERFIG.36 FRONT LAMPFIG.37 ROOM LAMPFIG.38 REAR LAMPFIG.39 WIRING HARNESSFIG.40 ELECTRICAL CONTROLFIG.41 LOCK SETFIG.42 FRONT WINDOW WIPERFIG.43 WINDOW WASHERFIG.44 REAR WINDOW WIPERFIG.45 RADIO

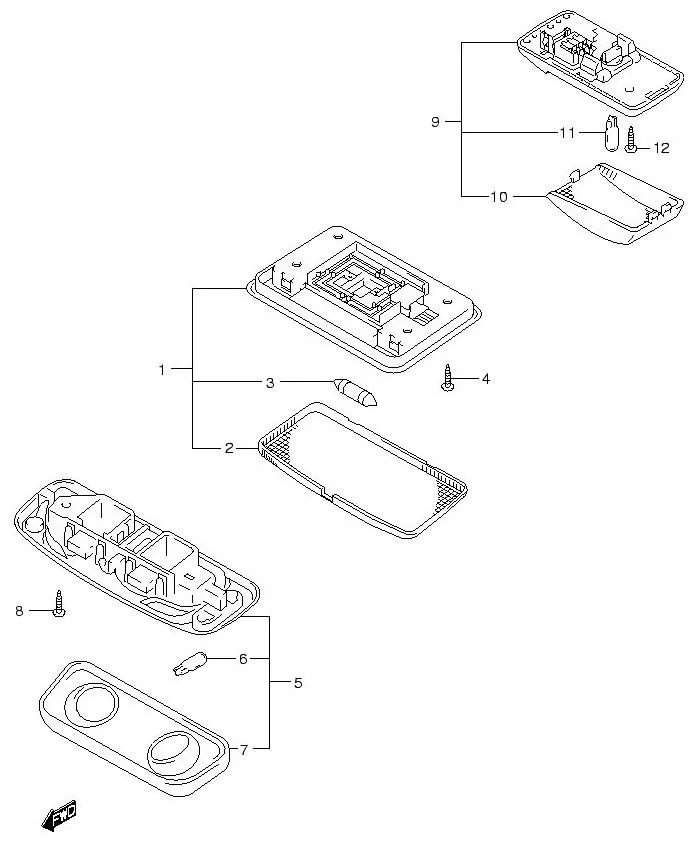

FIG.37 ROOM LAMP

FIG.37 ROOM LAMP
No No. Part Description Qty Price Per Pcs Remarks
1 36210-60G01-6GS LAMP ASSY, ROOM (GRAY) 1 Rp549.000
2 DISCONTINUE
SUB: 36212-60G00-000		 •LENS, ROOM LAMP 1 -
3 09471-12L04-000
SUB: 09471B12181N000		 •BULB (12V,10W) 1 Rp30.500
4 03141-0516B-000
SUB: 03142-05123-000		 SCREW 2 Rp3.500
5 DISCONTINUE
SUB: 36230-65D01-6GS		 LAMP ASSY, SPOT (GRAY) 1 -
6 09471-12113-000 •BULB (12V,8W) 2 Rp21.500
7 36232-65D00-000 •LENS, SPOT LAMP 1 Rp1.236.000
8 03141-0516B-000
SUB: 03142-05123-000		 SCREW 2 Rp3.500
9 36210-74F02-6GS LAMP ASSY, REAR ROOM (GRAY) 1 Rp266.500
10 36212-74F00-000 •LENS, REAR ROOM LAMP 1 Rp43.500
11 09471-12216-000
SUB: 09471B12216N000		 •BULB (12V,5W) 1 Rp15.000
12 03141-0516B-000
SUB: 03142-05163-000		 SCREW 1 Rp3.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
