ESCUDO (SE416)

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.31 ENGINE ELECTRICALFIG.32 STARTING MOTORFIG.33 GENERATORFIG.34 BATTERYFIG.35 SPEEDOMETERFIG.36 FRONT LAMPFIG.37 ROOM LAMPFIG.38 REAR LAMPFIG.39 WIRING HARNESSFIG.40 ELECTRICAL CONTROLFIG.41 LOCK SETFIG.42 FRONT WINDOW WIPERFIG.43 WINDOW WASHERFIG.44 REAR WINDOW WIPERFIG.45 RADIO

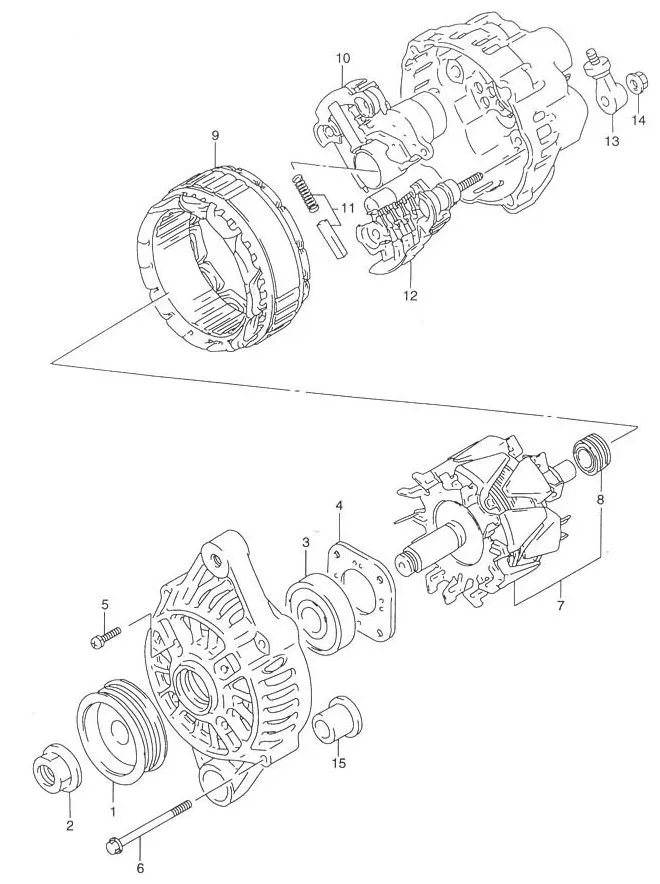

FIG.33 GENERATOR

FIG.33 GENERATOR
No No. Part Description Qty Price Per Pcs Remarks
31400-66D05-000
SUB: 31400-66D02-000		 GENERATOR ASSY 1 Rp8.997.000
1 31171-60A21-000 •PULLEY, GENERATOR 1 Rp789.500
2 31775-50F20-000 •NUT, PULLEY 1 Rp74.500
3 31582-50F40-000
SUB: 31582-50F21-000		 •BEARING 1 Rp407.500
4 31585-83E00-000 •RETAINER, BEARING 1 Rp73.000
5 31586-86520-000 •SCREW 1 Rp67.500
6 31651-86520-000 •SCREW SET 1 Rp78.000
7 DISCONTINUE
SUB: 31710-83E00-000		 •ROTOR ASSY 1 -
8 DISCONTINUE
SUB: 31612-60A10-000		 ••BEARING, REAR 1 -
9 DISCONTINUE
SUB: 31410-66D00-000		 •STATOR ASSY 1 -
10 32500-83E01-000 •REGULATOR ASSY 1 -
11 31631-60F30-000 •BRUSH 2 Rp121.000
12 DISCONTINUE
SUB: 31621-66D00-000		 •RECTIFIER ASSY 1 -
13 DISCONTINUE
SUB: 31514-73G10-000		 •TERMINAL SET 1 -
14 08316-1006A-000
SUB: 08316-10063L000		 •NUT 1 Rp2.000
15 DISCONTINUE
SUB: 31616-83E00-000		 •BUSHING 1 -

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
