ESCUDO (SE416)

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.31 ENGINE ELECTRICALFIG.32 STARTING MOTORFIG.33 GENERATORFIG.34 BATTERYFIG.35 SPEEDOMETERFIG.36 FRONT LAMPFIG.37 ROOM LAMPFIG.38 REAR LAMPFIG.39 WIRING HARNESSFIG.40 ELECTRICAL CONTROLFIG.41 LOCK SETFIG.42 FRONT WINDOW WIPERFIG.43 WINDOW WASHERFIG.44 REAR WINDOW WIPERFIG.45 RADIO

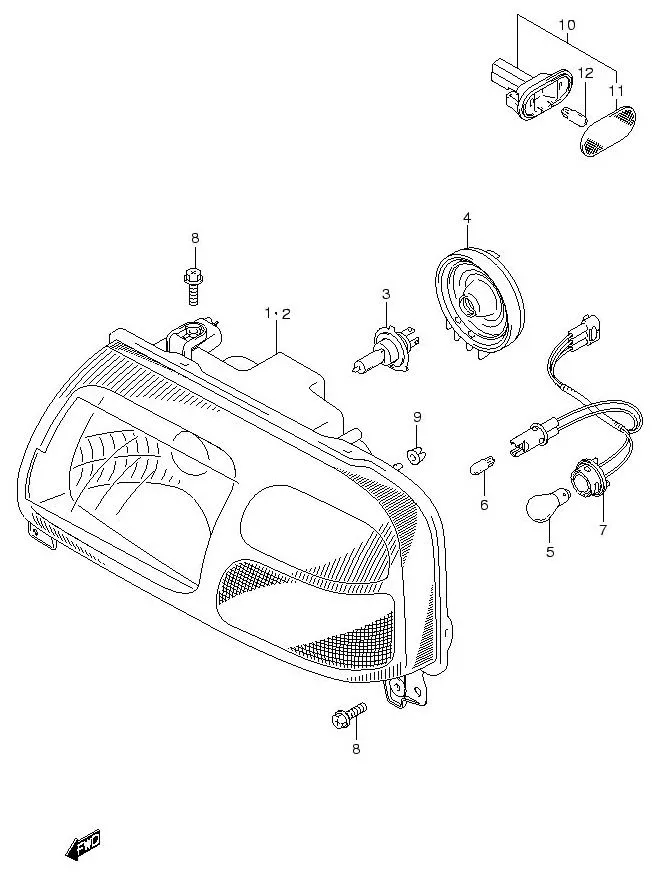

FIG.36 FRONT LAMP

FIG.36 FRONT LAMP
No No. Part Description Qty Price Per Pcs Remarks
1 35120-65D11-000 UNIT, HEADLAMP RH 1 Rp2.338.000
2 35320-65D11-000 UNIT, HEADLAMP LH 1 Rp2.338.000
3 09471-12182-000
SUB: 09471B12182N000		 BULB (12V,60/55W,H4LL) 2 Rp70.000
4 35125-65D00-000 COVER, SOCKET 2 Rp104.000
5 09471-12186-000
SUB: 09471B12186N000		 BULB (12V,21W) 2 Rp22.000
6 09471-12216-000
SUB: 09471B12216N000		 BULB (12V,5W) 2 Rp15.000
7 35618-65D00-000 SOCKET & CORD ASSY 2 Rp266.500
8 02162-0612B-000
SUB: 02162-06123-000		 SCREW 6 Rp16.000
9 35153-60G00-000 GROMMET, HEADLAMP 2 Rp32.500
10 36410M75F30-000
SUB: 36410M75F01-000		 LAMP ASSY, SIDE TURN SIGNAL 2 Rp55.000
11 36412-75F00-000 •LENS 2 Rp52.500
12 09471-12216-000
SUB: 09471B12216N000		 •BULB (12V,5W) 2 Rp15.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
