ESCUDO (SE416)

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.31 ENGINE ELECTRICALFIG.32 STARTING MOTORFIG.33 GENERATORFIG.34 BATTERYFIG.35 SPEEDOMETERFIG.36 FRONT LAMPFIG.37 ROOM LAMPFIG.38 REAR LAMPFIG.39 WIRING HARNESSFIG.40 ELECTRICAL CONTROLFIG.41 LOCK SETFIG.42 FRONT WINDOW WIPERFIG.43 WINDOW WASHERFIG.44 REAR WINDOW WIPERFIG.45 RADIO

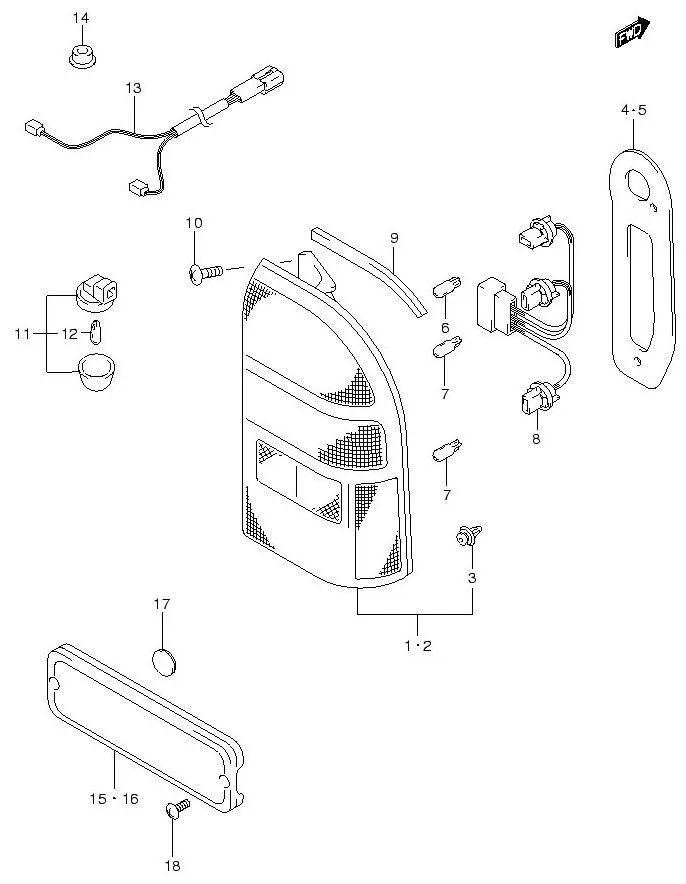

FIG.38 REAR LAMP

FIG.38 REAR LAMP
No No. Part Description Qty Price Per Pcs Remarks
1 35650-65D10-000 LAMP UNIT, RR COMBINATION RH 1 Rp1.901.000
2 35670-65D10-000 LAMP UNIT, RR COMBINATION LH 1 Rp1.901.000
3 71812-78F00-000
SUB: 71812B78F00N000		 •CLIP 4 Rp9.000
4 DISCONTINUE
SUB: 35657-65D00-000		 GASKET, LAMP UNIT RH 1 -
5 DISCONTINUE
SUB: 35677-65D00-000		 GASKET, LAMP UNIT LH 1 -
6 09471-12192-000 BULB (12V,21/5W) 2 Rp56.000
7 09471-12191-000 BULB (12V,21W) 4 Rp52.500
8 35658-65D00-000 SOCKET & CORD ASSY 2 Rp373.000
9 DISCONTINUE
SUB: 35653-65D00-000		 SEAL, LAMP UNIT 2 -
10 02142-0616B-000
SUB: 02142B06163N000		 SCREW 4 Rp5.500
11 35910-75F22-000
SUB: 35910-75F21-000		 LAMP ASSY, LICENSE 2 Rp171.500
12 09471-12081-000
SUB: 09471B12081N000		 •BULB (12V,5W) 2 Rp11.000
13 DISCONTINUE
SUB: 36843-65D00-000		 WIRE, LICENSE LAMP 1 -
14 DISCONTINUE
SUB: 09308-06009-000		 GROMMET 1 -
15-1 35661-65D00-ZJ3 COVER, RR BUMPER RH (BLACK) 1 Rp487.000
15-6 35661-65D00-ZJ3 COVER, RR BUMPER RH (BLACK) 1 Rp487.000
16-1 DISCONTINUE
SUB: 35681-65D00-ZJ3		 COVER, RR BUMPER LH (BLACK) 1 -
16-6 DISCONTINUE
SUB: 35681-65D00-ZJ3		 COVER, RR BUMPER LH (BLACK) 1 -
17 DISCONTINUE
SUB: 09132-05047-000		 SCREW 4 -
18 09250-25001-000 CAP, REAR BUMPER 2 Rp16.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
