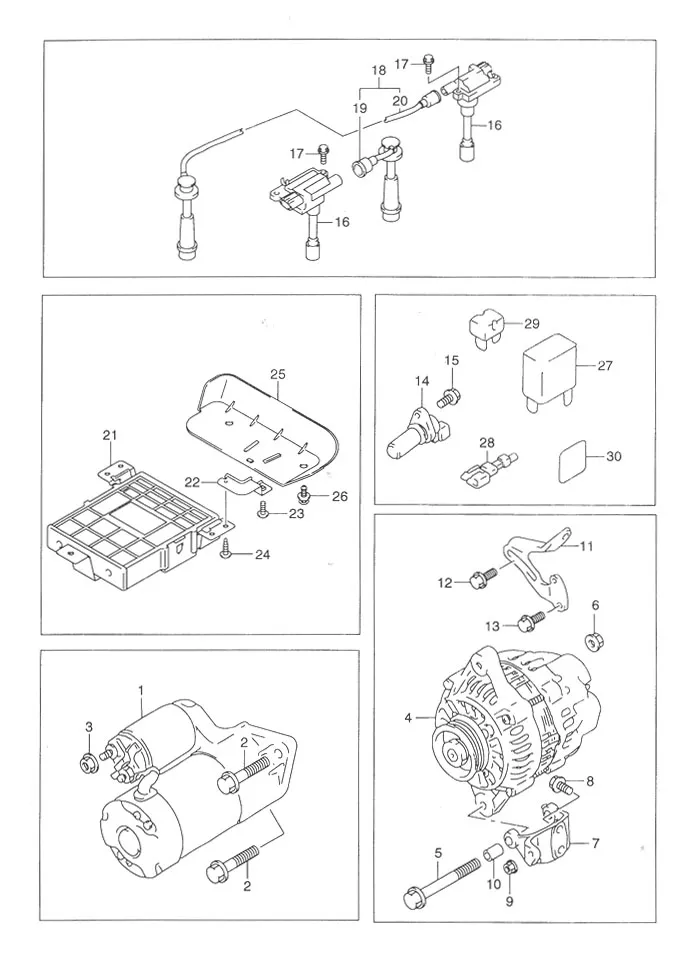

| 1 |
31100-66D00-000 |
MOTOR ASSY, STARTING |
1 |
Rp5.651.000 |
| |
| 2 |
01550-1050B-000
SUB: 01550-10503-000 |
BOLT |
2 |
Rp24.000 |
| |
| 3 |
08316-1008A-000
SUB: 08316B10083N000 |
NUT |
1 |
Rp3.500 |
| |
| 4 |
31400-66D05-000
SUB: 31400-66D02-000 |
GENERATOR ASSY |
1 |
Rp8.997.000 |
| |
| 5 |
01550-1085A-000
SUB: 01550-10853-000 |
BOLT |
1 |
Rp7.000 |
| |
| 6 |
08316-1006A-000
SUB: 08316-10063L000 |
NUT |
1 |
Rp2.000 |
| |
| 7 |
DISCONTINUE
SUB: 11551-83E00-000 |
BRACKET, GENERATOR |
1 |
- |
| |
| 8 |
01550-0825A-000
SUB: 01550-08253-000 |
BOLT |
2 |
Rp3.500 |
| |
| 9 |
08316-1008A-000
SUB: 08316B10083N000 |
NUT |
1 |
Rp3.500 |
| |
| 10 |
11555M60G00-000 |
BUSH, GENERATOR MOUNTING |
1 |
Rp6.500 |
| |
| 11 |
DISCONTINUE
SUB: 11561-66D00-000 |
ARM, GENERATOR ADJUSTING |
1 |
- |
| |
| 12 |
09118M08174-000
SUB: 09118-08107-000 |
BOLT (8X25) |
1 |
Rp19.500 |
| |
| 13 |
01550-0820A-000
SUB: 01550-08203-000 |
BOLT |
2 |
Rp5.500 |
| |
| 14 |
33220-50G02-000 |
SENSOR ASSY, CAM POSITION |
1 |
Rp970.000 |
| |
| 15 |
01550-0616A-000
SUB: 01550-06163-000 |
BOLT |
1 |
Rp3.500 |
| |
| 16 |
33410-66D01-000
SUB: 33410-66D00-000 |
COIL ASSY, IGNITION |
2 |
Rp2.373.000 |
| |
| 17 |
01560-0620A-000
SUB: 01560-06203-000 |
BOLT |
4 |
Rp2.500 |
| |
| 18 |
33705-66D00-000 |
CORD SET, HIGH TENSION |
1 |
Rp560.000 |
| |
| 19 |
33730-66D00-000 |
•CORD, HIGH TENSION NO.2 (L:245) |
1 |
Rp316.000 |
| |
| 20 |
33740-66D00-000 |
•CORD, HIGH TENSION NO.3 (L:80) |
1 |
Rp303.000 |
| |
| 21 |
33920-50J80-000 |
CONTROLLER, FUEL INJECTION |
1 |
Rp23.369.000 |
| |
| 22 |
33924-50J10-000 |
BRACKET, INJECTION CONTROLLER |
1 |
- |
| |
| 23 |
02142-0510A-000
SUB: 02142-05103-000 |
SCREW |
1 |
Rp4.000 |
| |
| 24 |
03541-0512A-000
SUB: 03541-05123L000 |
SCREW |
3 |
Rp3.500 |
| |
| 25 |
DISCONTINUE
SUB: 33925-50J10-000 |
COVER, INJECTION CONT |
1 |
- |
| |
| 26 |
09409M07L01-000
SUB: 09409M07332-000 |
CLIP |
2 |
Rp5.000 |
| |
| 27 |
38860-76F01-000
SUB: 38860B76F01N000 |
RELAY ASSY |
2 |
Rp47.000 |
| |
| 28 |
33926-60G10-000 |
RESISTOR, CO ADJUSTER |
1 |
Rp703.000 |
| |
| 29-1 |
DISCONTINUE
SUB: 33926-78A10-000 |
RESISTOR, IGNITION (0 OHM) |
0 |
- |
| |
| 29-12 |
DISCONTINUE
SUB: 33926-78AB0-000 |
RESISTOR, IGNITION (12K OHM) |
0 |
- |
| |
| 29-11 |
DISCONTINUE
SUB: 33926-78AA0-000 |
RESISTOR, IGNITION (6.2K OHM) |
0 |
- |
| |
| 29-10 |
DISCONTINUE
SUB: 33926-78A90-000 |
RESISTOR, IGNITION (3.6K OHM) |
0 |
- |
| |
| 29-9 |
DISCONTINUE
SUB: 33926-78A80-000 |
RESISTOR, IGNITION (2.2K OHM) |
0 |
- |
| |
| 29-8 |
DISCONTINUE
SUB: 33926-78A70-000 |
RESISTOR, IGNITION (1.5K OHM) |
0 |
- |
| |
| 29-6 |
DISCONTINUE
SUB: 33926-78A01-000 |
RESISTOR, IGNITION (680 OHM) |
0 |
- |
| |
| 29-5 |
DISCONTINUE
SUB: 33926-78A50-000 |
RESISTOR, IGNITION (430 OHM) |
0 |
- |
| |
| 29-4 |
DISCONTINUE
SUB: 33926-78A40-000 |
RESISTOR, IGNITION (270 OHM) |
0 |
- |
| |
| 29-3 |
DISCONTINUE
SUB: 33926-78A30-000 |
RESISTOR, IGNITION (160 OHM) |
0 |
- |
| |
| 29-2 |
DISCONTINUE
SUB: 33926-78A20-000 |
RESISTOR, IGNITION (82 OHM) |
0 |
- |
| |
| 29-7 |
DISCONTINUE
SUB: 33926-78A60-000 |
RESISTOR, IGNITION (1.0K OHM) |
0 |
- |
| |
| 30-12 |
33927-76GB0-000 |
LABEL, IGNITION (MARK 11) |
0 |
- |
| |
| 30-11 |
33927-76GA0-000 |
LABEL, IGNITION (MARK 10) |
0 |
- |
| |
| 30-10 |
33927-76G90-000 |
LABEL, IGNITION (MARK 9) |
0 |
- |
| |
| 30-9 |
33927-76G80-000 |
LABEL, IGNITION (MARK 8) |
0 |
- |
| |
| 30-8 |
33927-76G70-000 |
LABEL, IGNITION (MARK 7) |
0 |
- |
| |
| 30-7 |
33927-76G60-000 |
LABEL, IGNITION (MARK 6) |
0 |
- |
| |
| 30-6 |
33927-76G01-000 |
LABEL, IGNITION (MARK N) |
0 |
- |
| |
| 30-5 |
33927-76G50-000 |
LABEL, IGNITION (MARK 5) |
0 |
- |
| |
| 30-4 |
33927-76G40-000 |
LABEL, IGNITION (MARK 4) |
0 |
- |
| |
| 30-3 |
33927-76G30-000 |
LABEL, IGNITION (MARK 3) |
0 |
- |
| |
| 30-2 |
33927-76G20-000 |
LABEL, IGNITION (MARK 2) |
0 |
- |
| |
| 30-1 |
33927-76G10-000 |
LABEL, IGNITION (MARK 1) |
0 |
- |
| |
