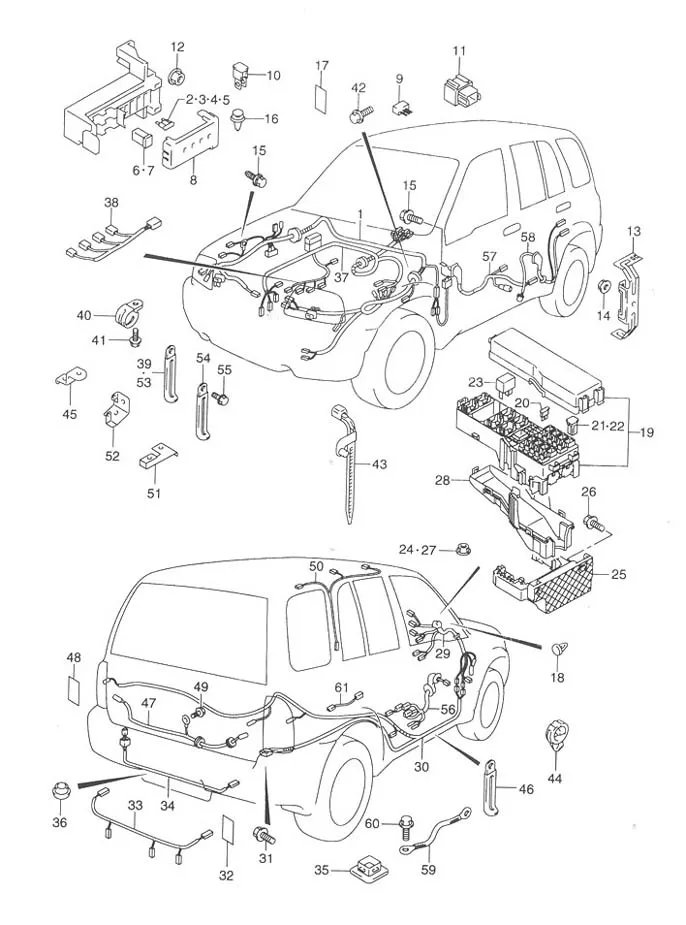

FIG.39 WIRING HARNESS

No	No. Part	Description	Qty	Price Per Pcs
1	DISCONTINUE SUB: 36601B51JF2N000	HARNESS ASSY, WIRING MAIN	1	-
2	09481-10501-000 SUB: 09481M10501-000	•FUSE (10A)	4	Rp12.000
3	09481-15501-000 SUB: 09481M15501-000	•FUSE (15A)	4	Rp12.000
4	09481-20501-000	•FUSE (20A)	3	Rp14.500
5	09481-25501-000	•FUSE (25A)	3	Rp14.000
6	09481-30401-000	•FUSE (30A)	1	Rp42.000
7	09481-40401-000	•FUSE (40A)	1	Rp49.500
8	36717-50J00-000	•COVER, FUSE BOX	1	Rp85.000
9	DISCONTINUE SUB: 33459-61B10-000	•DIODE	1	-
10	38860-76F01-000 SUB: 38860B76F01N000	•RELAY	7	Rp47.000
11	38610-84F21-000	•RELAY, TURN SIGNAL & 4 WAY	1	Rp683.500
12	08316-1006A-000 SUB: 08316-10063L000	NUT	3	Rp2.000
13	DISCONTINUE SUB: 36614-65D00-000	BRACKET, HARNESS CONNECTOR	1	-
14	08316-1006A-000 SUB: 08316-10063L000	NUT	1	Rp2.000
15	09115-06005-000 SUB: 09115-06001-000	BOLT	4	Rp14.000
16	09148-05042-000	CLIP	1	Rp17.500
17	36930M82000-000 SUB: 36930M82010-000	COVER, HARNESS	3	Rp6.500
18	DISCONTINUE SUB: 09409-07320-000	CAP	7	-
19	DISCONTINUE SUB: 36740-52J11-000	BOX ASSY, MAIN FUSE	1	-
20	09481-15501-000 SUB: 09481M15501-000	•FUSE (15A)	7	Rp12.000
21	09481-20501-000	•FUSE (20A)	2	Rp14.500
22	09481M60401-000	•FUSE (60A)	4	Rp66.000
23	38860-76F01-000 SUB: 38860B76F01N000	•RELAY	0	Rp47.000
24	08361-3506A-000	NUT	2	Rp4.000
25	36737-50J00-000	BRACKET, MAIN FUSE	1	Rp307.000
26	02162-0612B-000 SUB: 02162-06123-000	BOLT	2	Rp16.000
27	08316-1006A-000 SUB: 08316-10063L000	NUT	2	Rp2.000
28	36749-50J00-000	COVER, MAIN FUSE BOX UNDER	1	Rp237.500
29	DISCONTINUE SUB: 36602B50J41N000	HARNESS ASSY, INSTRUMENT PANEL	1	-
30	DISCONTINUE SUB: 36603B52J70N000	HARNESS ASSY, WIRING FLOOR	1	-
31	09115-06005-000 SUB: 09115-06001-000	BOLT (6X16)	1	Rp14.000
32	36930M82000-000 SUB: 36930M82010-000	COVER, FLOOR HARNESS	1	Rp6.500
33	DISCONTINUE SUB: 36640B65D11N000	WIRE, REAR LAMP	1	-
34	36840-65D00-000	WIRE, FUEL	1	-
35	75411-60A00-000	CAP, TAIL MEMBER	1	Rp48.500
36	DISCONTINUE SUB: 09250-35003-000	CAP (OD:45)	1	-
37	DISCONTINUE SUB: 36605B50J61N000	HARNESS ASSY, WIRING ENGINE	1	-
38	DISCONTINUE SUB: 36670B66D01N000	HARNESS, WIRING INJECTION	1	-
39	09404-06431-000	CLAMP (L:80)	1	Rp14.000
40	DISCONTINUE SUB: 36649-50F60-000	CLAMP, ENGINE HARNESS	1	-
41	01550-0616A-000 SUB: 01550-06163-000	SCREW	1	Rp3.500
42	DISCONTINUE SUB: 01550B06123N000	BOLT, GROUND (6X12)	1	-
43	DISCONTINUE SUB: 36990-52D00-000	CLAMP, MAIN HARNESS (L:158)	1	-
44	09403-35301-000	CLAMP, COMB SWITCH WIRE	1	Rp19.000
45	36651-51G00-000 SUB: 36651B51G00N000	BRACKET, ENGINE HARNESS	1	Rp5.500
46	DISCONTINUE SUB: 09404-08420-000	CLAMP (L:137)	6	-
47	DISCONTINUE SUB: 36845B65D01N000	WIRE, BACK DOOR	1	-
48	36930M82000-000 SUB: 36930M82010-000	COVER, BACK DOOR WIRE	1	Rp6.500
49	DISCONTINUE SUB: 09139-05028-000	SCREW (5X14)	1	-
50	DISCONTINUE SUB: 36820-65D21-000	WIRE, ROOM LAMP	1	-
51	DISCONTINUE SUB: 36995-66D00-000	BRACKET, INJECTION HARNESS	1	-
52	DISCONTINUE SUB: 36995-70E20-000	BRACKET, ENGINE HARNESS	1	-
53	DISCONTINUE SUB: 09404-08207-000	CLAMP (L:97)	2	-
